In hole-machining operations, the axial retraction of a boring tool—commonly referred to as "Tool Retraction"—is a frequent yet often overlooked quality risk. During batch production, this phenomenon can lead to bore diameter drift and inconsistencies in hole depth, as the tool shank undergoes a slight axial displacement during the machining process.
Causes of Tool Retraction
As a boring tool advances from the opening toward the bottom of a hole, it generates an axial force component acting in the same direction as the feed, effectively pushing the tool shank deeper into the hole.
Conventional boring tools rely on the frictional force provided by a collet to hold the tool in place. While this friction is generally sufficient to counteract axial forces under stable cutting conditions with uniform stock allowance, it can easily be overcome during prolonged machining or when high feed rates are applied. Once the frictional force is no longer enough to resist the axial force component, the tool "retracts" (shifts axially). Although this displacement is often too small to be detected by the naked eye, it is significant enough to cause bore diameter drift, deviations in hole depth, and surface chatter marks. Ultimately, this necessitates machine downtime for tool adjustment, negatively impacting equipment utilization—and in severe cases, compromising product quality.
Dual Benefits of the Tapered-Shank Positioning Design

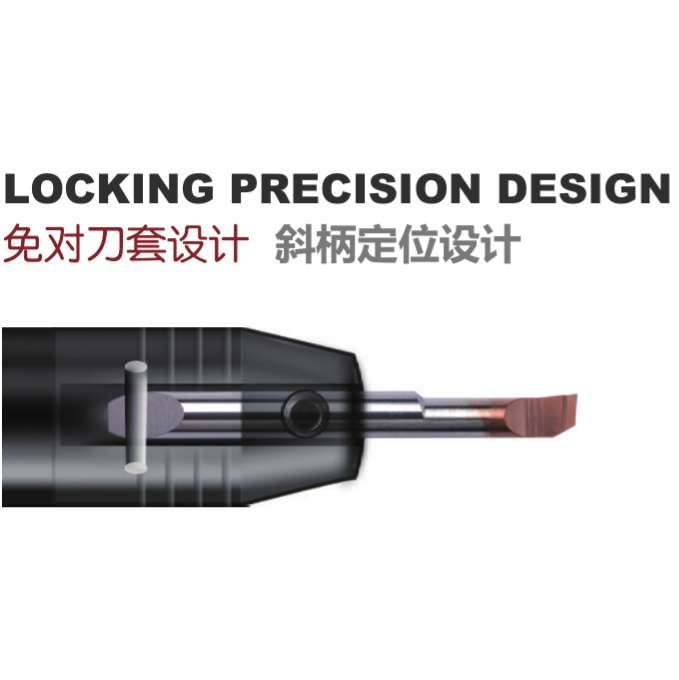

Quick-change boring tools are typically understood in terms of their design: a tapered shank at the rear combined with a positioning pin. This configuration eliminates the need for repeated positioning during tool changes, allowing for direct replacement and increased machining efficiency. However, this tapered-shank and positioning-pin design provides a second, equally critical benefit: it prevents axial tool retraction. The tapered shank creates a surface-to-surface contact with the tool holder, while the positioning pin fits into a dedicated slot on the tool shank. Consequently, the tool shank’s axial position is no longer dependent on collet friction; instead, it is secured by a mechanical hard stop formed by the tapered interface and the positioning pin. Regardless of fluctuations in axial cutting force, the tool shank remains structurally locked in place, fundamentally eliminating the possibility of retraction.
Our quick-change boring tools are engineered specifically around this tapered-shank positioning design. It offers more than just rapid tool changes:
No re-tool-setting required: High repeatability ensures that machining can begin immediately after a tool change, minimizing downtime.
Prevention of tool retraction: A combination of a tapered shank and a locating pin provides a rigid mechanical stop, ensuring the tool remains fixed against axial cutting forces and maintaining consistent dimensions throughout the process.
Ideal for automated environments: Excellent dimensional consistency makes it well-suited for unmanned, continuous production.
If you have encountered issues such as tool retraction or inconsistent hole sizing during boring operations, switching to a quick-change Boring Tool is a solution worth considering.
