MBCR Quick Change Profile Boring Cutter

SKU:
Availability:



Inquire

Profile boring bar Copy boring tool

Product Description

Technical Parameters

Product Uses

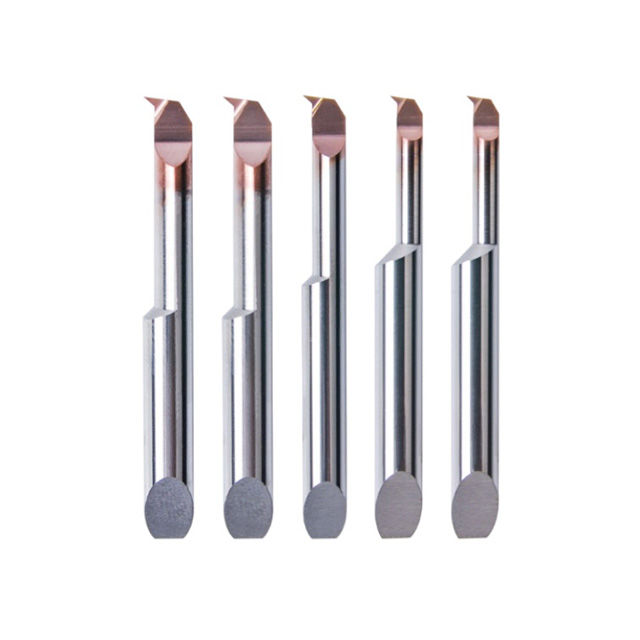

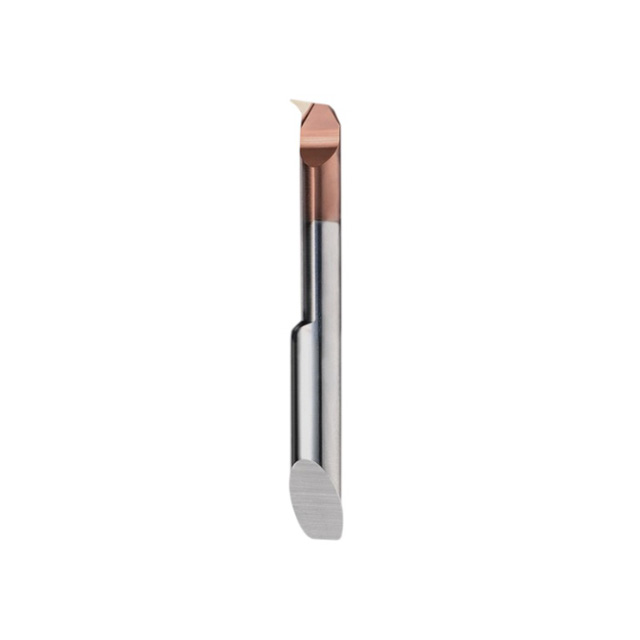

MBCR Quick Change Profile Boring Cutter

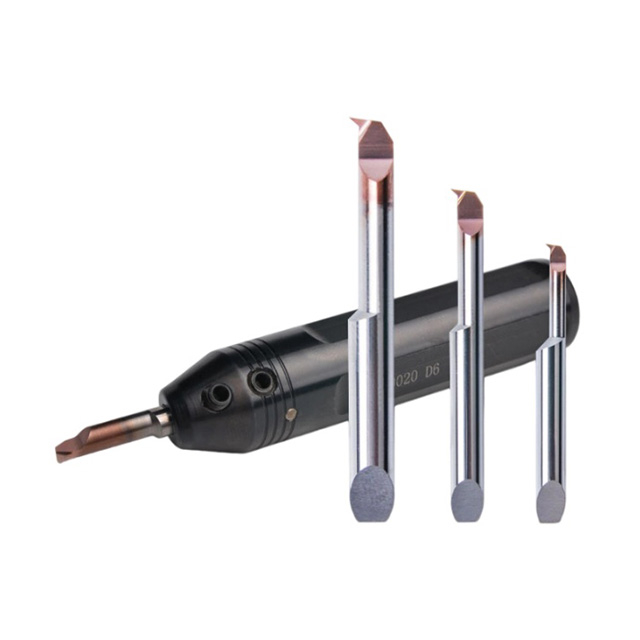

Quick-change boring tool is designed to significantly boost machining efficiency, enabling rapid and repeatable tool changes without the need for recalibration.

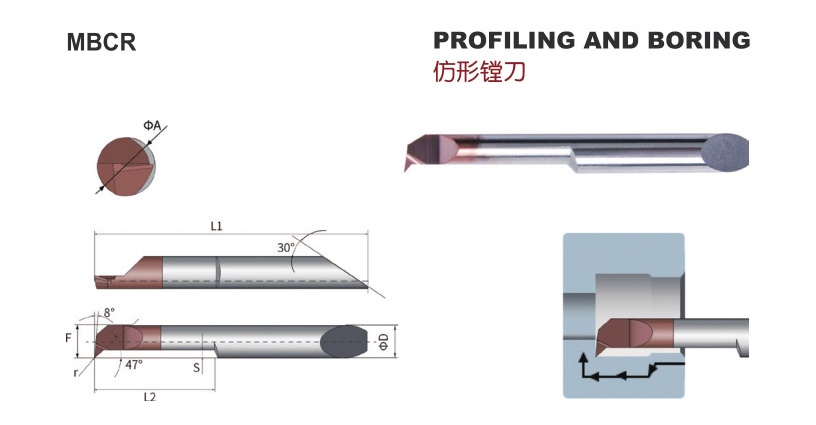

Technical Parameters

Product Type	Min. Dia(mm)ΦA	ΦD	r	L1	L2	F	S
MBCR0415L05R005-D-(C)	1.5	4	0.05	30	5	1.4	0.3
MBCR0421L06R005-D-(C)	2.1	4	0.05	31	6	1.85	0.4
MBCR0426L08R005-D-(C)	2.6	4	0.05	33	8	2.35	0.45
MBCR0431L10R005-D-(C)	3.1	4	0.05	35	10	2.8	0.6
MBCR0431L10R010-D-(C)	3.1	4	0.1	35	10	2.8	0.6
MBCR0431L15R005-D-(C)	3.1	4	0.05	37	15	2.8	0.6
MBCR0431L15R010-D-(C)	3.1	4	0.1	37	15	2.8	0.6
MBCR0441L12R005-D-(C)	4.1	4	0.05	37	12	3.8	0.8
MBCR0441L12R010-D-(C)	4.1	4	0.1	37	12	3.8	0.8
MBCR0441L16R005-D-(C)	4.1	4	0.05	41	16	3.8	0.8
MBCR0441L16R010-D-(C)	4.1	4	0.1	41	16	3.8	0.8
MBCR0441L20R005-D-(C)	4.1	4	0.05	45	20	3.8	0.8
MBCR0441L20R010-D-(C)	4.1	4	0.1	45	20	3.8	0.8
MBCR0551L20R005-D-(C)	5.1	5	0.05	45	20	4.8	1
MBCR0551L20R015-D-(C)	5.1	5	0.15	45	20	4.8	1
MBCR0551L25R005-D-(C)	5.1	5	0.05	50	25	4.8	1
MBCR0551L25R015-D-(C)	5.1	5	0.15	50	25	4.8	1
MBCR0661L20R005-D-(C)	6.1	6	0.05	45	20	5.8	1.2
MBCR0661L20R015-D-(C)	6.1	6	0.15	45	20	5.8	1.2
MBCR0661L25R005-D-(C)	6.1	6	0.05	50	25	5.8	1.2
MBCR0661L25R015-D-(C)	6.1	6	0.15	50	25	5.8	1.2
MBCR0661L30R005-D-(C)	6.1	6	0.05	55	30	5.8	1.2
MBCR0661L30R015-D-(C)	6.1	6	0.15	55	30	5.8	1.2

Product Uses

1.The Copy boring tool features specialized insert geometry with optimized approach angles, ensuring precise duplication of internal contours and tapered surfaces in single-pass profiling operations

2.The Copy boring tool incorporates a 30° helical rake angle and 8° relief angle, reducing cutting forces and promoting smooth chip evacuation for superior surface finish in profiling operations

3.Engineered with 47° approach angle and specialized profiling geometry, the Profile boring bar ensures precise duplication of internal contours, tapers, and radius transitions in single-pass operations .
