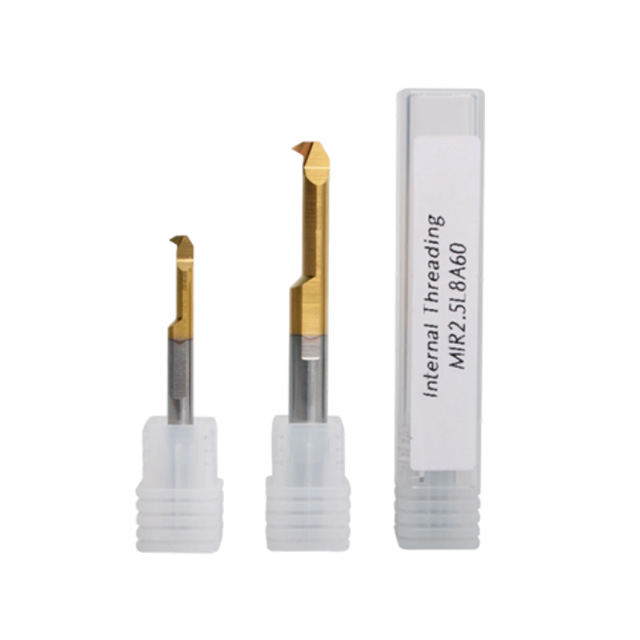

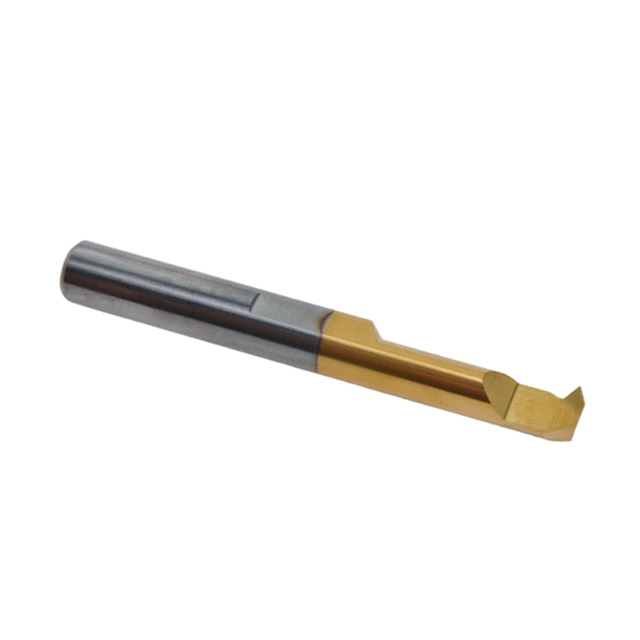

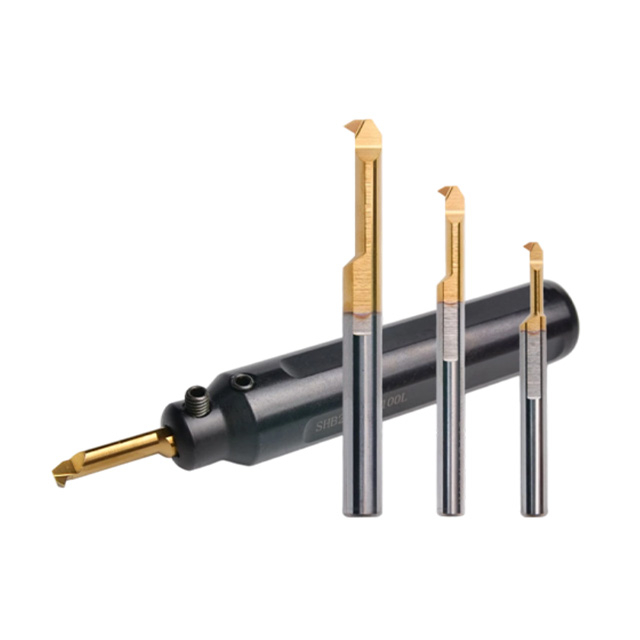

MIR Internal Threading Cutter

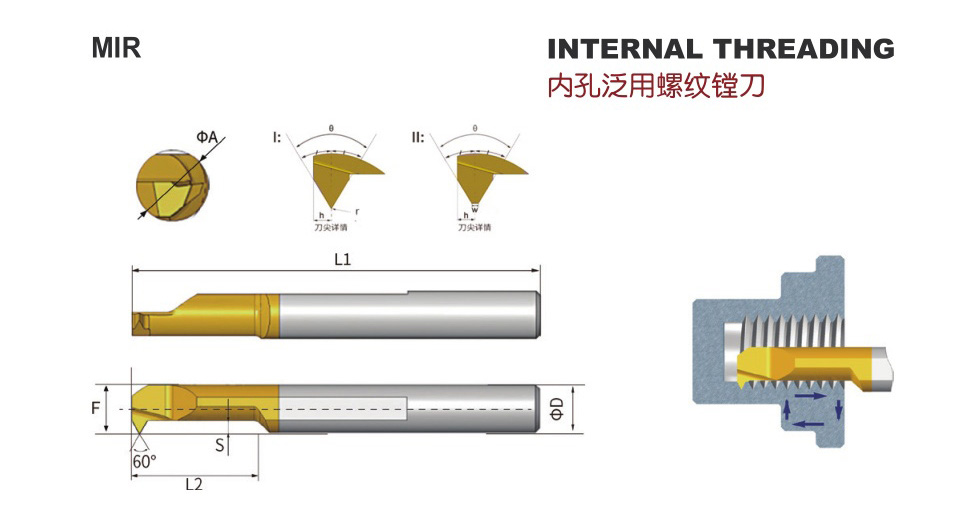

Technical Parameters

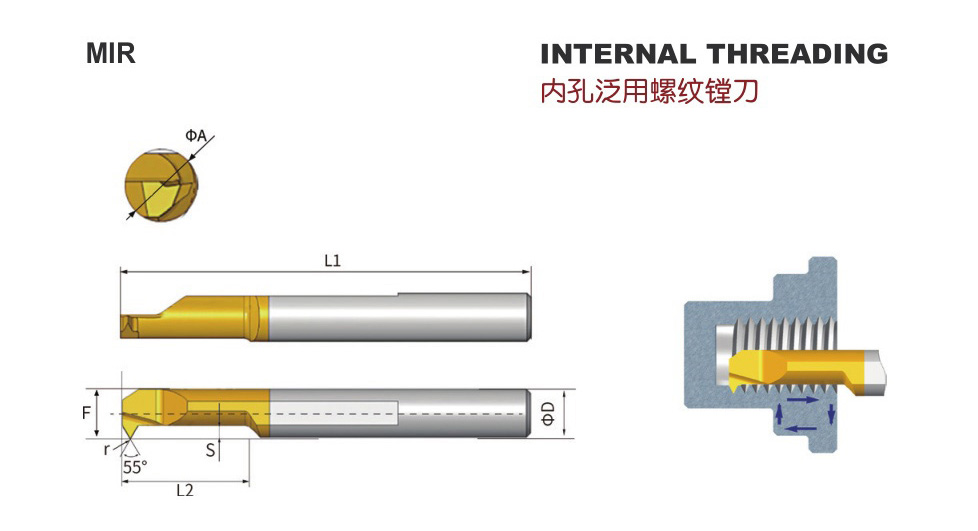

| Product Type | Min. Dia (mm) ΦA | ΦD | w | r | h | L1 | L2 | F | S | Pitch Range(mm) | Type |
| MIR1.5L4A60 | 1.6 | 4 | 0.03 | / | 0.250 | 40 | 4 | 1.4 | 0.40 | P0.25~P0.4 | II |
| MIR2.0L6A60 | 2.1 | 4 | 0.04 | / | 0.305 | 40 | 6 | 1.9 | 0.50 | P0.3~P0.5 | II |
| MIR2.5L8A60 | 2.6 | 4 | 0.06 | / | 0.375 | 40 | 8 | 2.4 | 0.60 | P0.4~P0.6 | II |
| MIR3L10A60 | 3.1 | 4 | / | 0.05 | 0.605 | 40 | 10 | 2.9 | 1.00 | P0.5~P0.8 | I |
| MIR4L12A60X | 4.1 | 4 | / | 0.05 | 0.720 | 46 | 12 | 3.9 | 1.20 | P0.5~P1.0 | I |
| MIR4L12A60 | 4.1 | 4 | / | 0.10 | 0.750 | 46 | 12 | 3.9 | 1.20 | P1.0~P1.5 | I |
| MIR5L15A60X | 5.1 | 5 | / | 0.05 | 0.895 | 50 | 15 | 4.9 | 1.50 | P0.5~P1.0 | I |
| MIR5L15A60 | 5.1 | 5 | / | 0.10 | 0.925 | 50 | 15 | 4.9 | 1.50 | P1.0~P1.5 | I |
| MIR6L20A60X | 6.1 | 6 | / | 0.05 | 1.070 | 60 | 20 | 5.9 | 1.80 | P0.5~P1.0 | I |
| MIR6L20A60 | 6.1 | 6 | / | 0.10 | 1.095 | 60 | 20 | 5.9 | 1.80 | P1.0~P1.75 | I |
| MIR8L25A60 | 8.1 | 8 | / | 0.10 | 1.330 | 65 | 25 | 7.9 | 2.20 | P1.0~P2.0 | I |
| MIR8L30A60 | 8.1 | 8 | / | 0.10 | 1.330 | 65 | 30 | 7.9 | 2.20 | P1.0~P2.0 | I |
| Product Type | Min. Dia ΦA | ΦD | r | L1 | L2 | F | S | Pitch Range(mm) |
| MIR3L10A55 | 3.10 | 4 | 0.05 | 40 | 10 | 2.90 | 1.00 | 48-24 |
| MIR4L12A55 | 4.10 | 4 | 0.05 | 46 | 12 | 3.90 | 1.20 | 48-24 |
| MIR5L15A55 | 5.10 | 5 | 0.08 | 50 | 15 | 4.90 | 1.60 | 48-16 |
| MIR6L20A55 | 6.10 | 6 | 0.08 | 60 | 20 | 5.90 | 1.90 | 48-12 |
| MIR8L25A55 | 8.10 | 8 | 0.15 | 65 | 25 | 7.90 | 2.50 | 26-11 |
| MIR8L30A55 | 8.10 | 8 | 0.15 | 65 | 30 | 7.90 | 2.50 | 26-11 |
Product Uses
1.The Micro threading bar features specialized edge honing that resists chipping on thread crests and flanks, maintaining intact tooth geometry under interrupted cutting conditions.
2.The Internal threading tool accepts full-profile inserts for metric, UN, and custom thread forms, enabling rapid thread type changeover without removing the toolholder.
