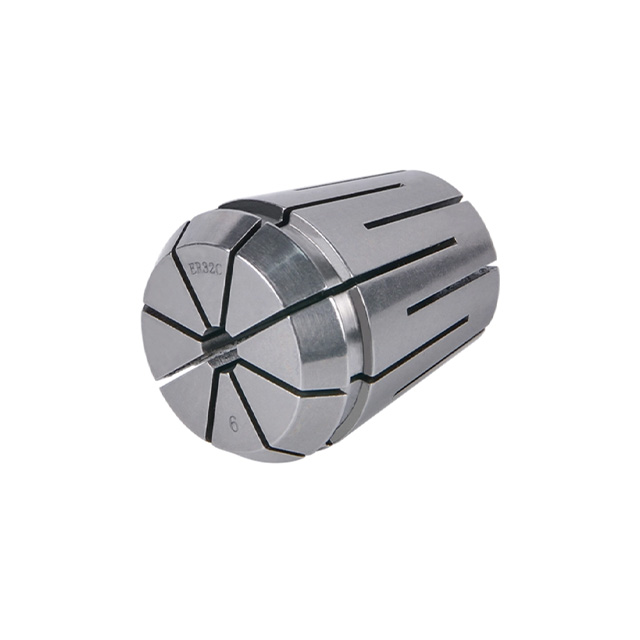

Internal Cold ER Collet

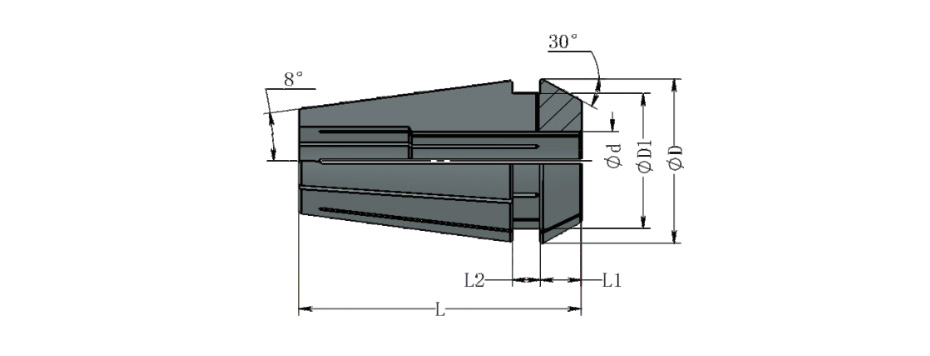

Technical Parameters
| Model | D | D1 | L | L1 | L2 | AA | UP |
| ER08 | 8.5 | 6.5 | 13.5 | 1.5 | 1.2 | 0.008mm | 0.005mm |
| ER11 | 11.5 | 9.5 | 18 | 2.5 | 2 | 0.008mm | 0.005mm |
| ER16 | 17 | 12.8 | 27.5 | 4 | 2.7 | 0.008mm | 0.005mm |
| ER20 | 21 | 17.4 | 31.5 | 4.8 | 2.8 | 0.008mm | 0.005mm |
| ER25 | 26 | 22 | 34 | 5 | 3.1 | 0.008mm | 0.005mm |
| ER32 | 33 | 29.2 | 40 | 5.5 | 3.6 | 0.008mm | 0.005mm |
| ER40 | 41 | 36.2 | 46 | 7 | 4.1 | 0.008mm | 0.005mm |
Product Uses
1. High-pressure internal coolant delivery for deep-hole drilling and heavy-duty milling on CNC machining centers.
2. Sealing and directing specialized cutting fluid straight to the tool tip, preventing chip re-cutting and overheating.
3. Maximum tool life extension and surface roughness optimization during high-speed machining of stainless steel and titanium.
4. Engineered from heat-treated spring steel, the Waterproof ER Collet ensures low runout, reliable clamping force, and withstands high-pressure coolant systems.
