MBPR Quick Change Internal Boring Cutter

SKU:
Availability:



Inquire

Internal boring tool

Product Description

Technical Parameters

Product Uses

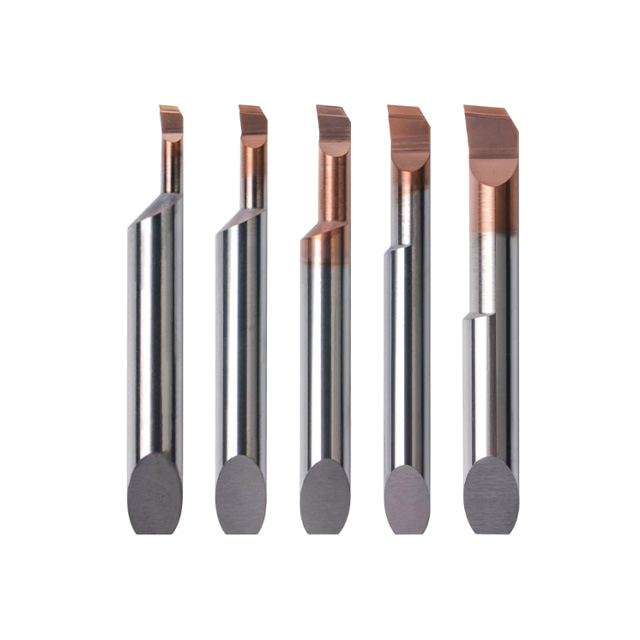

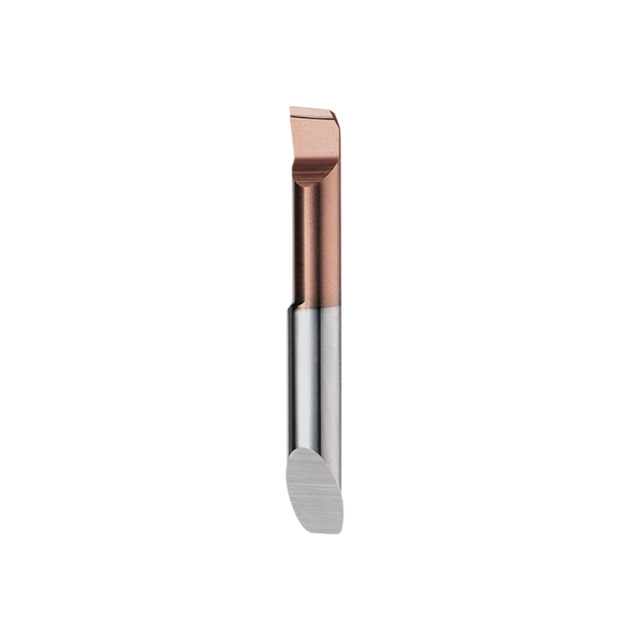

MBPR Quick Change Internal Boring Cutter

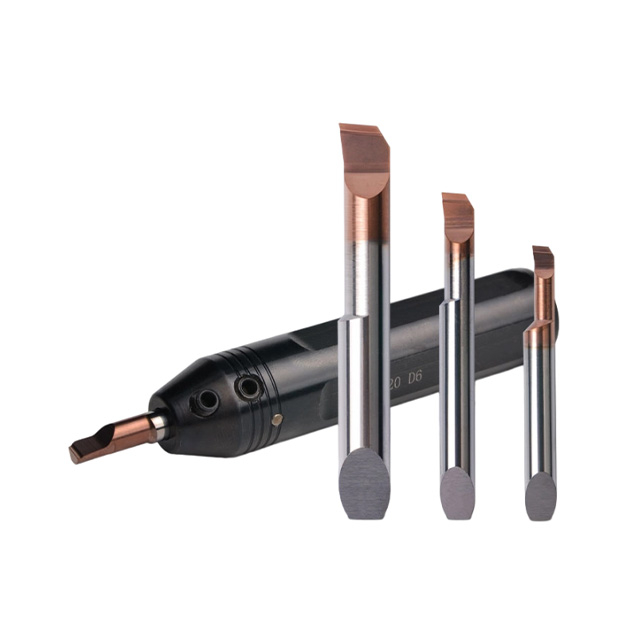

Quick-change boring tool is designed to significantly boost machining efficiency, enabling rapid and repeatable tool changes without the need for recalibration.

Technical Parameters

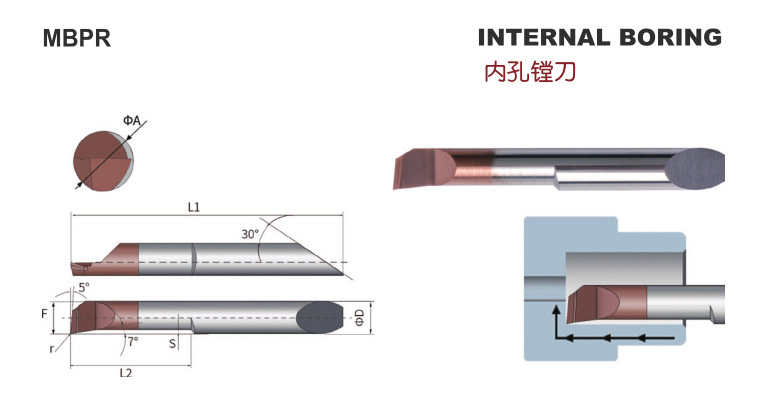

Product Type	Min. Dia(mm)ΦA	ΦD	r	L1	L2	F	S
MBPR0421L06R005-Y-(C)	2.1	4	0.05	31	6	1.85	0.2
MBPR0421L06R010-Y-(C)	2.1	4	0.1	31	6	1.85	0.2
MBPR0421L10R005-Y-(C)	2.1	4	0.05	35	10	1.85	0.2
MBPR0421L10R010-Y-(C)	2.1	4	0.1	35	10	1.85	0.2
MBPR0426L08R005-Y-(C)	2.6	4	0.05	33	8	2.35	0.25
MBPR0426L08R010-Y-(C)	2.6	4	0.1	33	8	2.35	0.25
MBPR0426L08R015-Y-(C)	2.6	4	0.15	33	8	2.35	0.25
MBPR0426L12R005-Y-(C)	2.6	4	0.05	37	12	2.35	0.25
MBPR0426L12R010-Y-(C)	2.6	4	0.1	37	12	2.35	0.25
MBPR0426L12R015-Y-(C)	2.6	4	0.15	37	12	2.35	0.25
MBPR0431L10R005-Y-(C)	3.1	4	0.05	35	10	2.8	0.3
MBPR0431L10R010-Y-(C)	3.1	4	0.1	35	10	2.8	0.3
MBPR0431L10R015-Y-(C)	3.1	4	0.15	35	10	2.8	0.3
MBPR0431L15R005-Y-(C)	3.1	4	0.05	40	15	2.8	0.3
MBPR0431L15R010-Y-(C)	3.1	4	0.1	40	15	2.8	0.3
MBPR0431L15R015-Y-(C)	3.1	4	0.15	40	15	2.8	0.3
MBPR0441L12R005-Y-(C)	4.1	4	0.05	37	12	3.8	0.4
MBPR0441L12R010-Y-(C)	4.1	4	0.1	37	12	3.8	0.4
MBPR0441L12R020-Y-(C)	4.1	4	0.2	37	12	3.8	0.4
MBPR0441L16R005-Y-(C)	4.1	4	0.05	41	16	3.8	0.4
MBPR0441L16R010-Y-(C)	4.1	4	0.1	41	16	3.8	0.4
MBPR0441L16R020-Y-(C)	4.1	4	0.2	41	16	3.8	0.4
MBPR0441L20R005-Y-(C)	4.1	4	0.05	45	20	3.8	0.4
MBPR0441L20R010-Y-(C)	4.1	4	0.1	45	20	3.8	0.4
MBPR0441L20R020-Y-(C)	4.1	4	0.2	45	20	3.8	0.4
MBPR0551L15R010-Y-(C)	5.1	5	0.1	40	15	4.8	0.5
MBPR0551L15R020-Y-(C)	5.1	5	0.2	40	15	4.8	0.5
MBPR0551L20R010-Y-(C)	5.1	5	0.1	45	20	4.8	0.5
MBPR0551L20R020-Y-(C)	5.1	5	0.2	45	20	4.8	0.5
MBPR0551L25R010-Y-(C)	5.1	5	0.1	50	25	4.8	0.5
MBPR0551L25R020-Y-(C)	5.1	5	0.2	50	25	4.8	0.5
MBPR0661L15R010-Y-(C)	6.1	6	0.1	40	15	5.8	0.6
MBPR0661L15R020-Y-(C)	6.1	6	0.2	40	15	5.8	0.6
MBPR0661L20R010-Y-(C)	6.1	6	0.1	45	20	5.8	0.6
MBPR0661L20R020-Y-(C)	6.1	6	0.2	45	20	5.8	0.6
MBPR0661L25R010-Y-(C)	6.1	6	0.1	50	25	5.8	0.6
MBPR0661L25R020-Y-(C)	6.1	6	0.2	50	25	5.8	0.6
MBPR0661L30R010-Y-(C)	6.1	6	0.1	55	30	5.8	0.6
MBPR0661L30R020-Y-(C)	6.1	6	0.2	55	30	5.8	0.6
MBPR0771L25R010-Y-(C)	7.1	7	0.1	54	25	6.8	0.7
MBPR0771L25R020-Y-(C)	7.1	7	0.2	54	25	6.8	0.7
MBPR0771L35R010-Y-(C)	7.1	7	0.1	64	35	6.8	0.7
MBPR0771L35R020-Y-(C)	7.1	7	0.2	64	35	6.8	0.7

Product Uses

1.The Internal boring tool features a solid carbide anti-vibration design that minimizes chatter in small-diameter and deep-hole internal boring, ensuring stable cutting and superior surface finish.

2.The Internal boring tool is engineered with a quick-change interface that guarantees repeatable tool indexing without recalibration, slashing idle time during job changeovers.
