Helical Knurling Wheel

SKU:
Availability:



Inquire

Helical Knurling Wheel Knurling wheel Diagonal knurling wheel

Product Description

Technical Parameters

Product Uses

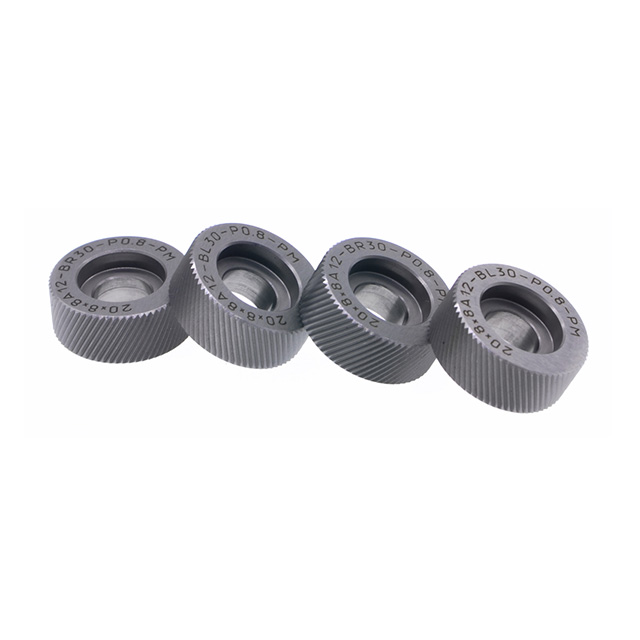

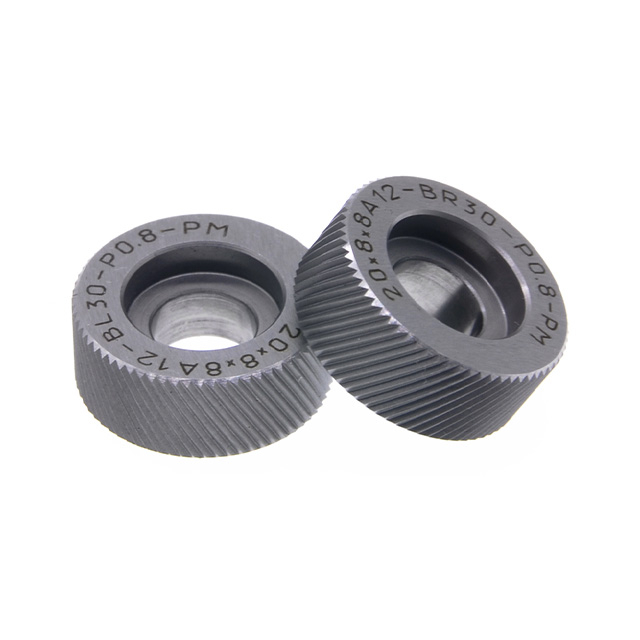

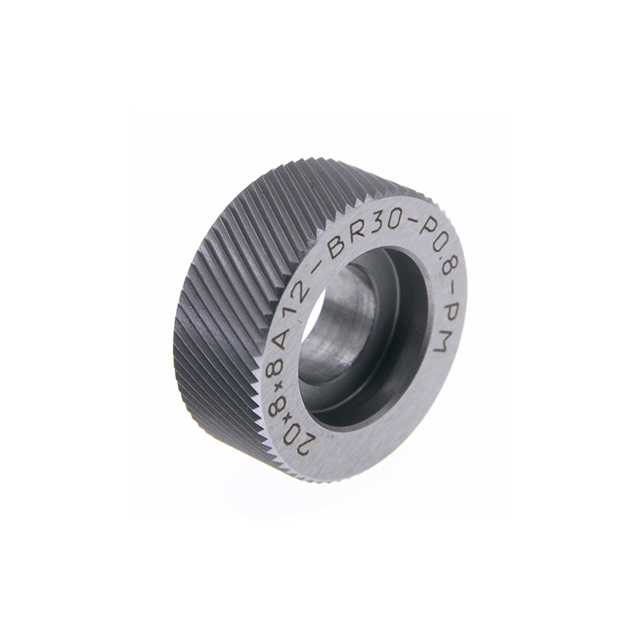

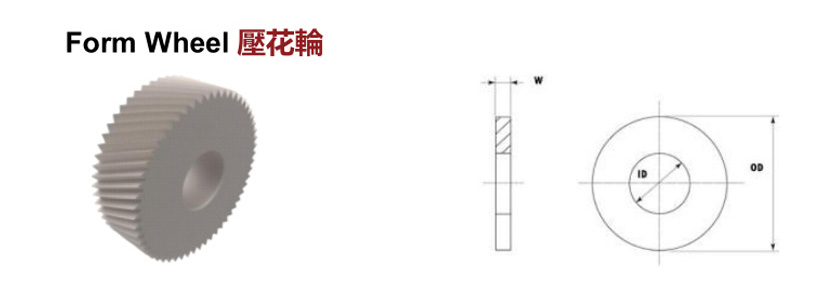

Helical Knurling Wheel

Technical Parameters

Profile	Spiral Angle	OD	Width	ID	Pitch(mm)
BL	30/45	10	4	4	0.3-1.5
BL	30/45	15	4	4	0.3-1.5
BL	30/45	6	4	-	0.3-1.5
BL	30/45	20	6	6	0.4-1.6
BL	30/45	20	8	6	0.3-2.0
BL	30/45	20	10	6	0.5-2.0
BL	30/45	25	8	6	0.6-1.5

Profile	Spiral Angle	OD	Width	ID	Pitch(mm)
BL	15/30	8.9	2.4	4	0.3-1.0
BL	15/30	10	3	6	0.5-1.2
BL	15/30	14.5	3	5	0.5-1.2
BL	15/30	15	4	8	0.5-1.2
BL	15/30	21.5	5	8	0.6-2.0
BL	15/30	25	6	8	0.5-2.0

Profile	Spiral Angle	OD	Width	ID	Pitch(mm)
BR	30/45	10	4	4	0.3-1.5
BR	30/45	15	4	4	0.3-1.5
BR	30/45	6	4	4	0.3-1.5
BR	30/45	20	6	6	0.4-1.6
BR	30/45	20	8	6	0.3-2.0
BR	30/45	20	10	6	0.5-2.0
BR	30/45	25	8	6	0.6-1.5

Profile	Spiral Angle	OD	Width	ID	Pitch(mm)
BR	15/30	8.9	2.4	4	0.3-1.0
BR	15/30	10	3	6	0.5-1.2
BR	15/30	14.5	3	5	0.5-1.2
BR	15/30	15	4	8	0.5-1.2
BR	15/30	21.5	5	8	0.6-2.0
BR	15/30	25	6	8	0.5-2.0

Product Uses

1. Precise single-directional angular pattern forming on cylindrical metal workpieces using manual or CNC lathes.

2. Paired setup (Left & Right) in dual-wheel holders to generate high-quality cross-hatched or diamond textures.

3.Manufactured from wear-resistant tool steel with precision-ground tooth profiles, the Diagonal knurling wheel maintains consistent pattern sharpness across extended production runs, minimizing wheel replacement frequency
