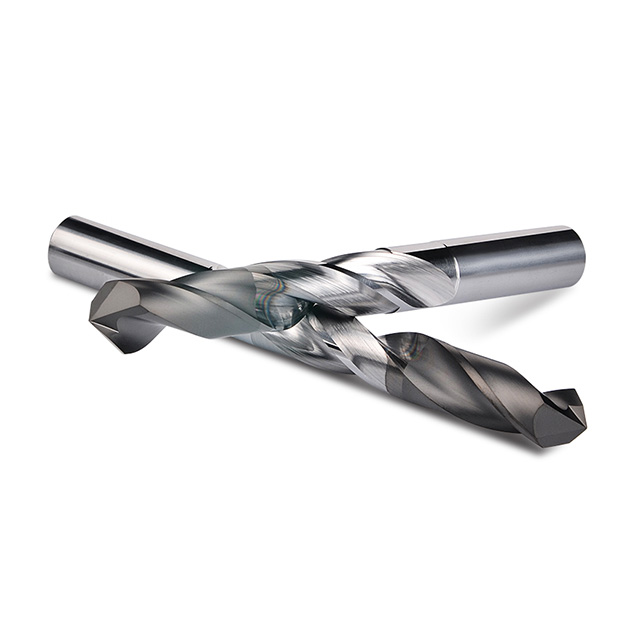

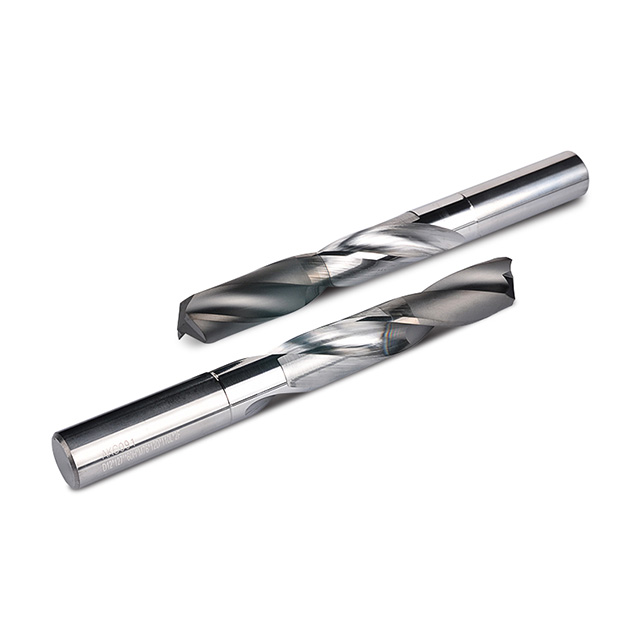

Universal Carbide Drill
Technical Parameters

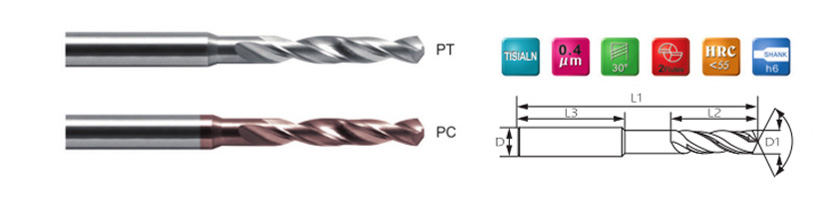

| Order NO. | Diameter D1 | Channel Length L2 | Full Length L1 | Shank Diameter D |
| FS-PT/PC-050 | 0.50 | 4.0 | 50 | 4 |
| FS-PT/PC-055 | 0.55 | 4 | 50 | 4 |
| FS-PT/PC-060 | 0.60 | 5.0 | 50 | 4 |
| FS-PT/PC-065 | 0.65 | 5 | 50 | 4 |
| FS-PT/PC-070 | 0.70 | 5.0 | 50 | 4 |
| FS-PT/PC-075 | 0.75 | 5 | 50 | 4 |
| FS-PT/PC-080 | 0.80 | 5.0 | 50 | 4 |
| FS-PT/PC-085 | 0.85 | 5 | 50 | 4 |
| FS-PT/PC-090 | 0.90 | 5.0 | 50 | 4 |
| FS-PT/PC-095 | 0.95 | 5 | 50 | 4 |
| FS-PT/PC-100 | 1 | 6 | 50 | 4 |
| FS-PT/PC-105 | 1.05 | 6 | 50 | 4 |
| FS-PT/PC-110 | 1.1 | 6 | 50 | 4 |
| FS-PT/PC-115 | 1.15 | 6 | 50 | 4 |
| FS-PT/PC-120 | 1.2 | 6 | 50 | 4 |
| FS-PT/PC-125 | 1.25 | 6 | 50 | 4 |
| FS-PT/PC-130 | 1.3 | 6 | 50 | 4 |
| FS-PT/PC-135 | 1.35 | 8 | 50 | 4 |
| FS-PT/PC-140 | 1.4 | 8 | 50 | 4 |
| FS-PT/PC-145 | 1.45 | 8 | 50 | 4 |
| FS-PT/PC-150 | 1.5 | 8 | 50 | 4 |
| FS-PT/PC-155 | 1.55 | 8 | 50 | 4 |
| FS-PT/PC-160 | 1.6 | 8 | 50 | 4 |
| FS-PT/PC-165 | 1.65 | 8 | 50 | 4 |
| FS-PT/PC-170 | 1.7 | 8 | 50 | 4 |
| FS-PT/PC-175 | 1.75 | 8 | 50 | 4 |
| FS-PT/PC-180 | 1.8 | 9 | 50 | 4 |
| FS-PT/PC-185 | 1.85 | 9 | 50 | 4 |
| FS-PT/PC-190 | 1.9 | 9 | 50 | 4 |
| FS-PT/PC-195 | 1.95 | 9 | 50 | 4 |
| FS-PT/PC-200 | 2 | 10 | 50 | 4 |
| FS-PT/PC-205 | 2.05 | 10 | 50 | 4 |
| FS-PT/PC-210 | 2.1 | 10 | 50 | 4 |
| FS-PT/PC-215 | 2.15 | 10 | 50 | 4 |
| FS-PT/PC-220 | 2.2 | 10 | 50 | 4 |
| FS-PT/PC-225 | 2.25 | 10 | 50 | 4 |
| FS-PT/PC-230 | 2.3 | 12 | 50 | 4 |
| FS-PT/PC-235 | 2.35 | 12 | 50 | 4 |
| FS-PT/PC-240 | 2.4 | 12 | 50 | 4 |
| FS-PT/PC-245 | 2.45 | 12 | 50 | 4 |
| FS-PT/PC-250 | 2.5 | 12 | 50 | 4 |
| FS-PT/PC-255 | 2.55 | 12 | 50 | 4 |
| FS-PT/PC-260 | 2.6 | 12 | 50 | 4 |
| FS-PT/PC-265 | 2.65 | 14 | 50 | 4 |
| FS-PT/PC-270 | 2.7 | 14 | 50 | 4 |
| FS-PT/PC-275 | 2.75 | 14 | 50 | 4 |
| FS-PT/PC-280 | 2.8 | 14 | 50 | 4 |
| FS-PT/PC-285 | 2.85 | 14 | 50 | 4 |
| FS-PT/PC-290 | 2.9 | 14 | 50 | 4 |
| FS-PT/PC-295 | 2.95 | 14 | 50 | 4 |
| FS-PT/PC-300 | 3 | 14 | 50 | 4 |
| FS-PT/PC-305 | 3.05 | 16 | 50 | 4 |
| FS-PT/PC-310 | 3.1 | 16 | 50 | 4 |
| FS-PT/PC-315 | 3.15 | 16 | 50 | 4 |
| FS-PT/PC-320 | 3.2 | 16 | 50 | 4 |
| FS-PT/PC-325 | 3.25 | 16 | 50 | 4 |
| FS-PT/PC-330 | 3.3 | 16 | 50 | 4 |
| FS-PT/PC-335 | 3.35 | 16 | 50 | 4 |
| FS-PT/PC-340 | 3.4 | 16 | 50 | 4 |
| FS-PT/PC-345 | 3.45 | 16 | 50 | 4 |
| FS-PT/PC-350 | 3.5 | 16 | 50 | 4 |
| FS-PT/PC-355 | 3.55 | 16 | 50 | 4 |
| FS-PT/PC-360 | 3.6 | 18 | 50 | 4 |
| FS-PT/PC-365 | 3.65 | 18 | 50 | 4 |
| FS-PT/PC-370 | 3.7 | 18 | 50 | 4 |
| FS-PT/PC-385 | 3.85 | 18 | 50 | 4 |
| FS-PT/PC-390 | 3.8 | 18 | 50 | 4 |
| FS-PT/PC-395 | 3.95 | 18 | 50 | 4 |
| FS-PT/PC-400 | 4 | 18 | 50 | 4 |
| FS-PT/PC-405 | 4.05 | 18.0 | 50 | 5 |
| FS-PT/PC-410 | 4.1 | 18 | 50 | 5 |
| FS-PT/PC-415 | 4.15 | 18.0 | 50 | 5 |
| FS-PT/PC-420 | 4.2 | 18 | 50 | 5 |
| FS-PT/PC-425 | 4.25 | 18.0 | 50 | 5 |
| FS-PT/PC-430 | 4.3 | 18 | 50 | 5 |
| FS-PT/PC-435 | 4.35 | 18.0 | 50 | 5 |
| FS-PT/PC-440 | 4.4 | 18 | 50 | 5 |
| FS-PT/PC-450 | 4.45 | 18.0 | 50 | 5 |
| FS-PT/PC-460 | 4.5 | 18 | 50 | 5 |
| FS-PT/PC-465 | 4.55 | 20 | 50 | 5 |
| FS-PT/PC-470 | 4.6 | 20 | 50 | 5 |
| FS-PT/PC-465 (dup) | 4.65 | 20 | 50 | 5 |
| FS-PT/PC-470 (dup) | 4.7 | 20 | 50 | 5 |
| FS-PT/PC-475 | 4.75 | 20 | 50 | 5 |
| FS-PT/PC-490 | 4.8 | 20 | 50 | 5 |
| FS-PT/PC-485 | 4.85 | 20 | 50 | 5 |
| FS-PT/PC-500 | 5 | 20 | 50 | 5 |
| FS-PT/PC-495 | 4.95 | 20 | 50 | 5 |
| FS-PT/PC-510 | 5.1 | 25 | 50 | 6 |
| FS-PT/PC-515 | 5.15 | 25 | 50 | 6 |
| FS-PT/PC-520 | 5.2 | 25 | 50 | 6 |
| FS-PT/PC-525 | 5.25 | 25 | 50 | 6 |
| FS-PT/PC-530 | 5.3 | 25 | 50 | 6 |
| FS-PT/PC-535 | 5.35 | 25 | 50 | 6 |
| FS-PT/PC-540 | 5.4 | 25 | 50 | 6 |
| FS-PT/PC-550 | 5.55 | 25 | 50 | 6 |
| FS-PT/PC-560 | 5.6 | 25 | 50 | 6 |
| FS-PT/PC-565 | 5.65 | 25 | 50 | 6 |
| FS-PT/PC-570 | 5.7 | 25 | 50 | 6 |
| FS-PT/PC-575 | 5.75 | 25 | 50 | 6 |
| FS-PT/PC-580 | 5.8 | 25 | 50 | 6 |
| FS-PT/PC-585 | 5.85 | 25 | 50 | 6 |
| FS-PT/PC-590 | 5.9 | 25 | 50 | 6 |
| FS-PT/PC-605 | 6.05 | 30 | 60 | 8 |
| FS-PT/PC-610 | 6.1 | 30 | 60 | 8 |
| FS-PT/PC-615 | 6.15 | 30 | 60 | 8 |
| FS-PT/PC-620 | 6.2 | 30 | 60 | 8 |
| FS-PT/PC-625 | 6.25 | 30 | 60 | 8 |
| FS-PT/PC-630 | 6.3 | 30 | 60 | 8 |
| FS-PT/PC-635 | 6.35 | 30 | 60 | 8 |
| FS-PT/PC-640 | 6.4 | 30 | 60 | 8 |
| FS-PT/PC-645 | 6.45 | 30 | 60 | 8 |
| FS-PT/PC-650 | 6.5 | 30 | 60 | 8 |
| FS-PT/PC-660 | 6.6 | 30 | 60 | 8 |
| FS-PT/PC-665 | 6.65 | 30 | 60 | 8 |
| FS-PT/PC-670 | 6.7 | 30 | 60 | 8 |
| FS-PT/PC-675 | 6.75 | 30 | 60 | 8 |
| FS-PT/PC-680 | 6.8 | 30 | 60 | 8 |
| FS-PT/PC-690 | 6.95 | 30 | 60 | 8 |
| FS-PT/PC-700 | 7 | 30 | 60 | 8 |
| Order NO. | Diameter D1 | Channel Length L2 | Full Length L1 | Shank Diameter D |
| FS-PT/PC-705 | 7.05 | 32.0 | 60 | 8 |
| FS-PT/PC-715 | 7.15 | 32.0 | 60 | 8 |
| FS-PT/PC-725 | 7.25 | 32.0 | 60 | 8 |
| FS-PT/PC-735 | 7.35 | 32.0 | 60 | 8 |
| FS-PT/PC-745 | 7.45 | 32.0 | 60 | 8 |
| FS-PT/PC-755 | 7.55 | 32.0 | 60 | 8 |
| FS-PT/PC-765 | 7.65 | 32.0 | 60 | 8 |
| FS-PT/PC-775 | 7.75 | 32.0 | 60 | 8 |
| FS-PT/PC-785 | 7.85 | 32.0 | 60 | 8 |
| FS-PT/PC-795 | 7.95 | 32.0 | 60 | 8 |
| FS-PT/PC-805 | 8.05 | 40 | 75 | 10 |
| FS-PT/PC-815 | 8.15 | 40 | 75 | 10 |
| FS-PT/PC-825 | 8.25 | 40 | 75 | 10 |
| FS-PT/PC-835 | 8.35 | 40 | 75 | 10 |
| FS-PT/PC-845 | 8.45 | 40 | 75 | 10 |
| FS-PT/PC-855 | 8.55 | 40 | 75 | 10 |
| FS-PT/PC-865 | 8.65 | 40 | 75 | 10 |
| FS-PT/PC-875 | 8.75 | 40 | 75 | 10 |
| FS-PT/PC-885 | 8.85 | 40 | 75 | 10 |
| FS-PT/PC-895 | 8.95 | 40 | 75 | 10 |
| FS-PT/PC-905 | 9.05 | 40 | 75 | 10 |
| FS-PT/PC-915 | 9.15 | 40 | 75 | 10 |
| FS-PT/PC-925 | 9.25 | 40 | 75 | 10 |
| FS-PT/PC-935 | 9.35 | 40 | 75 | 10 |
| FS-PT/PC-945 | 9.45 | 40 | 75 | 10 |
| FS-PT/PC-955 | 9.55 | 40 | 75 | 10 |
| FS-PT/PC-965 | 9.65 | 40 | 75 | 10 |
| FS-PT/PC-975 | 9.75 | 40 | 75 | 10 |
| FS-PT/PC-985 | 9.85 | 40 | 75 | 10 |
| FS-PT/PC-995 | 9.95 | 40 | 75 | 10 |
| FS-PT/PC-1005 | 10.05 | 42 | 75 | 12 |
| FS-PT/PC-1015 | 10.15 | 42 | 75 | 12 |
| FS-PT/PC-1025 | 10.25 | 42 | 75 | 12 |
| FS-PT/PC-1035 | 10.35 | 42 | 75 | 12 |
| FS-PT/PC-1045 | 10.45 | 42 | 75 | 12 |
| FS-PT/PC-1055 | 10.55 | 42 | 75 | 12 |
| FS-PT/PC-1065 | 10.65 | 42 | 75 | 12 |
| FS-PT/PC-1075 | 10.75 | 42 | 75 | 12 |
| FS-PT/PC-1085 | 10.85 | 42 | 75 | 12 |
| FS-PT/PC-1095 | 10.95 | 42 | 75 | 12 |
| FS-PT/PC-1105 | 11.05 | 48 | 80 | 12 |
| FS-PT/PC-1115 | 11.15 | 48 | 80 | 12 |
| FS-PT/PC-1125 | 11.25 | 48 | 80 | 12 |
| FS-PT/PC-1135 | 11.35 | 48 | 80 | 12 |
| FS-PT/PC-1145 | 11.45 | 48 | 80 | 12 |
| FS-PT/PC-1155 | 11.55 | 48 | 80 | 12 |
| FS-PT/PC-1165 | 11.65 | 48 | 80 | 12 |
| FS-PT/PC-1175 | 11.75 | 48 | 80 | 12 |
| FS-PT/PC-1185 | 11.85 | 48 | 80 | 12 |
| FS-PT/PC-1195 | 11.95 | 48 | 80 | 12 |
| Order NO. | Diameter D1 | Channel Length L2 | Full Length L1 | Shank Diameter D |
| FS-PT/PC-710 | 7.1 | 32 | 60 | 8 |
| FS-PT/PC-720 | 7.2 | 32 | 60 | 8 |
| FS-PT/PC-730 | 7.3 | 32 | 60 | 8 |
| FS-PT/PC-740 | 7.4 | 32 | 60 | 8 |
| FS-PT/PC-750 | 7.5 | 32 | 60 | 8 |
| FS-PT/PC-760 | 7.6 | 32 | 60 | 8 |
| FS-PT/PC-770 | 7.7 | 32 | 60 | 8 |
| FS-PT/PC-780 | 7.8 | 32 | 60 | 8 |
| FS-PT/PC-790 | 7.9 | 32 | 60 | 8 |
| FS-PT/PC-800 | 8 | 32 | 60 | 8 |
| FS-PT/PC-810 | 8.1 | 40 | 75 | 10 |
| FS-PT/PC-820 | 8.2 | 40 | 75 | 10 |
| FS-PT/PC-830 | 8.3 | 40 | 75 | 10 |
| FS-PT/PC-840 | 8.4 | 40 | 75 | 10 |
| FS-PT/PC-850 | 8.5 | 40 | 75 | 10 |
| FS-PT/PC-860 | 8.6 | 40 | 75 | 10 |
| FS-PT/PC-870 | 8.7 | 40 | 75 | 10 |
| FS-PT/PC-880 | 8.8 | 40 | 75 | 10 |
| FS-PT/PC-890 | 8.9 | 40 | 75 | 10 |
| FS-PT/PC-900 | 9 | 40 | 75 | 10 |
| FS-PT/PC-910 | 9.1 | 40 | 75 | 10 |
| FS-PT/PC-920 | 9.2 | 40 | 75 | 10 |
| FS-PT/PC-930 | 9.3 | 40 | 75 | 10 |
| FS-PT/PC-940 | 9.4 | 40 | 75 | 10 |
| FS-PT/PC-950 | 9.5 | 40 | 75 | 10 |
| FS-PT/PC-960 | 9.6 | 40 | 75 | 10 |
| FS-PT/PC-970 | 9.7 | 40 | 75 | 10 |
| FS-PT/PC-980 | 9.8 | 40 | 75 | 10 |
| FS-PT/PC-990 | 9.9 | 40 | 75 | 10 |
| FS-PT/PC-1000 | 10 | 40 | 75 | 10 |
| FS-PT/PC-1010 | 10.1 | 42 | 75 | 12 |
| FS-PT/PC-1020 | 10.2 | 42 | 75 | 12 |
| FS-PT/PC-1030 | 10.3 | 42 | 75 | 12 |
| FS-PT/PC-1040 | 10.4 | 42 | 75 | 12 |
| FS-PT/PC-1050 | 10.5 | 42 | 75 | 12 |
| FS-PT/PC-1060 | 10.6 | 42 | 75 | 12 |
| FS-PT/PC-1070 | 10.7 | 42 | 75 | 12 |
| FS-PT/PC-1080 | 10.8 | 42 | 75 | 12 |
| FS-PT/PC-1090 | 10.9 | 42 | 75 | 12 |
| FS-PT/PC-1100 | 11 | 42 | 75 | 12 |
| FS-PT/PC-1110 | 11.1 | 48 | 80 | 12 |
| FS-PT/PC-1120 | 11.2 | 48 | 80 | 12 |
| FS-PT/PC-1130 | 11.3 | 48 | 80 | 12 |
| FS-PT/PC-1140 | 11.4 | 48 | 80 | 12 |
| FS-PT/PC-1150 | 11.5 | 48 | 80 | 12 |
| FS-PT/PC-1160 | 11.6 | 48 | 80 | 12 |
| FS-PT/PC-1170 | 11.7 | 48 | 80 | 12 |
| FS-PT/PC-1180 | 11.8 | 48 | 80 | 12 |
| FS-PT/PC-1190 | 11.9 | 48 | 80 | 12 |
| FS-DT/PC-1200 | 12 | 48 | 80 | 12 |
| Order NO. | Diameter D1 | Channel Length L2 | Full Length L1 | Shank Diameter D |
| FS-PT/PC-151 | 1.51 | 8.0 | 50 | 4 |
| FS-PT/PC-152 | 1.52 | 8.0 | 50 | 4 |
| FS-PT/PC-153 | 1.53 | 8.0 | 50 | 4 |
| FS-PT/PC-154 | 1.54 | 8.0 | 50 | 4 |
| FS-PT/PC-156 | 1.56 | 8.0 | 50 | 4 |
| FS-PT/PC-157 | 1.57 | 8.0 | 50 | 4 |
| FS-PT/PC-158 | 1.58 | 8.0 | 50 | 4 |
| FS-PT/PC-159 | 1.59 | 8.0 | 50 | 4 |
| FS-PT/PC-161 | 1.61 | 8.0 | 50 | 4 |
| FS-PT/PC-162 | 1.62 | 8.0 | 50 | 4 |
| FS-PT/PC-163 | 1.63 | 8.0 | 50 | 4 |
| FS-PT/PC-164 | 1.64 | 8.0 | 50 | 4 |
| FS-PT/PC-166 | 1.66 | 8.0 | 50 | 4 |
| FS-PT/PC-167 | 1.67 | 8.0 | 50 | 4 |
| FS-PT/PC-168 | 1.68 | 8.0 | 50 | 4 |
| FS-PT/PC-169 | 1.69 | 8.0 | 50 | 4 |
| FS-PT/PC-171 | 1.71 | 8.0 | 50 | 4 |
| FS-PT/PC-172 | 1.72 | 8.0 | 50 | 4 |
| FS-PT/PC-173 | 1.73 | 8.0 | 50 | 4 |
| FS-PT/PC-174 | 1.74 | 8.0 | 50 | 4 |
| FS-PT/PC-176 | 1.76 | 8.0 | 50 | 4 |
| FS-PT/PC-178 | 1.77 | 8.0 | 50 | 4 |
| FS-PT/PC-179 | 1.78 | 8.0 | 50 | 4 |
| FS-PT/PC-180 | 1.79 | 8.0 | 50 | 4 |
| FS-PT/PC-181 | 1.81 | 9.0 | 50 | 4 |
| FS-PT/PC-182 | 1.82 | 9.0 | 50 | 4 |
| FS-PT/PC-183 | 1.83 | 9.0 | 50 | 4 |
| FS-PT/PC-184 | 1.84 | 9.0 | 50 | 4 |
| FS-PT/PC-186 | 1.86 | 9.0 | 50 | 4 |
| FS-PT/PC-187 | 1.87 | 9.0 | 50 | 4 |
| FS-PT/PC-188 | 1.88 | 9.0 | 50 | 4 |
| FS-PT/PC-189 | 1.89 | 9.0 | 50 | 4 |
| FS-PT/PC-191 | 1.91 | 9.0 | 50 | 4 |
| FS-PT/PC-192 | 1.92 | 9.0 | 50 | 4 |
| FS-PT/PC-193 | 1.93 | 9.0 | 50 | 4 |
| FS-PT/PC-194 | 1.94 | 9.0 | 50 | 4 |
| FS-PT/PC-196 | 1.96 | 9.0 | 50 | 4 |
| FS-PT/PC-197 | 1.97 | 9.0 | 50 | 4 |
| FS-PT/PC-198 | 1.98 | 9.0 | 50 | 4 |
| FS-PT/PC-199 | 1.99 | 9.0 | 50 | 4 |
| FS-PT/PC-201 | 2.01 | 10.0 | 50 | 4 |
| FS-PT/PC-202 | 2.02 | 10.0 | 50 | 4 |
| FS-PT/PC-203 | 2.03 | 10.0 | 50 | 4 |
| FS-PT/PC-204 | 2.04 | 10.0 | 50 | 4 |
| FS-PT/PC-206 | 2.06 | 10.0 | 50 | 4 |
| FS-PT/PC-207 | 2.07 | 10.0 | 50 | 4 |
| FS-PT/PC-208 | 2.08 | 10.0 | 50 | 4 |
| FS-PT/PC-209 | 2.09 | 10.0 | 50 | 4 |
| FS-PT/PC-211 | 2.11 | 10.0 | 50 | 4 |
| FS-PT/PC-212 | 2.12 | 10.0 | 50 | 4 |
| FS-PT/PC-213 | 2.13 | 10.0 | 50 | 4 |
| FS-PT/PC-214 | 2.14 | 10.0 | 50 | 4 |
| FS-PT/PC-216 | 2.16 | 10.0 | 50 | 4 |
| FS-PT/PC-217 | 2.17 | 10.0 | 50 | 4 |
| FS-PT/PC-218 | 2.18 | 10.0 | 50 | 4 |
| FS-PT/PC-219 | 2.19 | 10.0 | 50 | 4 |
| FS-PT/PC-221 | 2.21 | 10.0 | 50 | 4 |
| FS-PT/PC-222 | 2.22 | 10.0 | 50 | 4 |
| FS-PT/PC-223 | 2.23 | 10.0 | 50 | 4 |
| FS-PT/PC-224 | 2.24 | 10.0 | 50 | 4 |
| FS-PT/PC-226 | 2.26 | 10.0 | 50 | 4 |
| FS-PT/PC-227 | 2.27 | 10.0 | 50 | 4 |
| FS-PT/PC-228 | 2.28 | 10.0 | 50 | 4 |
| FS-PT/PC-229 | 2.29 | 10.0 | 50 | 4 |
| FS-PT/PC-231 | 2.31 | 12.0 | 50 | 4 |
| FS-PT/PC-232 | 2.32 | 12.0 | 50 | 4 |
| FS-PT/PC-233 | 2.33 | 12.0 | 50 | 4 |
| FS-PT/PC-234 | 2.34 | 12.0 | 50 | 4 |
| FS-PT/PC-235 | 2.36 | 12.0 | 50 | 4 |
| FS-PT/PC-236 | 2.37 | 12.0 | 50 | 4 |
| FS-PT/PC-237 | 2.38 | 12.0 | 50 | 4 |
| FS-PT/PC-238 | 2.39 | 12.0 | 50 | 4 |
| FS-PT/PC-241 | 2.41 | 12.0 | 50 | 4 |
| FS-PT/PC-242 | 2.42 | 12.0 | 50 | 4 |
| FS-PT/PC-243 | 2.43 | 12.0 | 50 | 4 |
| FS-PT/PC-244 | 2.44 | 12.0 | 50 | 4 |
| FS-PT/PC-246 | 2.46 | 12.0 | 50 | 4 |
| FS-PT/PC-247 | 2.47 | 12.0 | 50 | 4 |
| FS-PT/PC-248 | 2.48 | 12.0 | 50 | 4 |
| FS-PT/PC-249 | 2.49 | 12.0 | 50 | 4 |
| FS-PT/PC-251 | 2.51 | 12.0 | 50 | 4 |
| FS-PT/PC-252 | 2.52 | 12.0 | 50 | 4 |
| FS-PT/PC-253 | 2.53 | 12.0 | 50 | 4 |
| FS-PT/PC-254 | 2.54 | 12.0 | 50 | 4 |
| FS-PT/PC-256 | 2.56 | 12.0 | 50 | 4 |
| FS-PT/PC-257 | 2.57 | 12.0 | 50 | 4 |
| FS-PT/PC-258 | 2.58 | 12.0 | 50 | 4 |
| FS-PT/PC-259 | 2.59 | 12.0 | 50 | 4 |
| FS-PT/PC-261 | 2.61 | 14.0 | 50 | 4 |
| FS-PT/PC-262 | 2.62 | 14.0 | 50 | 4 |
| FS-PT/PC-263 | 2.63 | 14.0 | 50 | 4 |
| FS-PT/PC-264 | 2.64 | 14.0 | 50 | 4 |
| FS-PT/PC-265 | 2.66 | 14.0 | 50 | 4 |
| FS-PT/PC-267 | 2.67 | 14.0 | 50 | 4 |
| FS-PT/PC-268 | 2.68 | 14.0 | 50 | 4 |
| FS-PT/PC-269 | 2.69 | 14.0 | 50 | 4 |
| Order NO. | Diameter D1 | Channel Length L2 | Full Length L1 | Shank Diameter D |
| FS-PT/PC-271 | 2.71 | 14.0 | 50 | 4 |
| FS-PT/PC-272 | 2.72 | 14.0 | 50 | 4 |
| FS-PT/PC-273 | 2.73 | 14.0 | 50 | 4 |
| FS-PT/PC-274 | 2.74 | 14.0 | 50 | 4 |
| FS-PT/PC-276 | 2.76 | 14.0 | 50 | 4 |
| FS-PT/PC-277 | 2.77 | 14.0 | 50 | 4 |
| FS-PT/PC-278 | 2.78 | 14.0 | 50 | 4 |
| FS-PT/PC-279 | 2.79 | 14.0 | 50 | 4 |
| FS-PT/PC-281 | 2.81 | 14.0 | 50 | 4 |
| FS-PT/PC-282 | 2.82 | 14.0 | 50 | 4 |
| FS-PT/PC-336 | 3.36 | 16.0 | 50 | 4 |
| FS-PT/PC-337 | 3.37 | 16.0 | 50 | 4 |
| FS-PT/PC-338 | 3.38 | 16.0 | 50 | 4 |
| FS-PT/PC-339 | 3.39 | 16.0 | 50 | 4 |
| FS-PT/PC-341 | 3.41 | 16.0 | 50 | 4 |
| FS-PT/PC-342 | 3.42 | 16.0 | 50 | 4 |
| FS-PT/PC-343 | 3.43 | 16.0 | 50 | 4 |
| FS-PT/PC-344 | 3.44 | 16.0 | 50 | 4 |
| FS-PT/PC-346 | 3.46 | 16.0 | 50 | 4 |
Product Uses
1. High-versatility solid drilling across multi-material jobs on standard CNC machines and machining centers.
2. Continuous high-speed hole-making with optimized cutting edges to achieve low runout and superior surface roughness.
3. Excellent self-centering performance to eliminate wandering and ensure perfect hole straightness .
4. Widely utilized in CNC machining, automotive engineering, aerospace, mold manufacturing, heavy industries, and other sectors.
