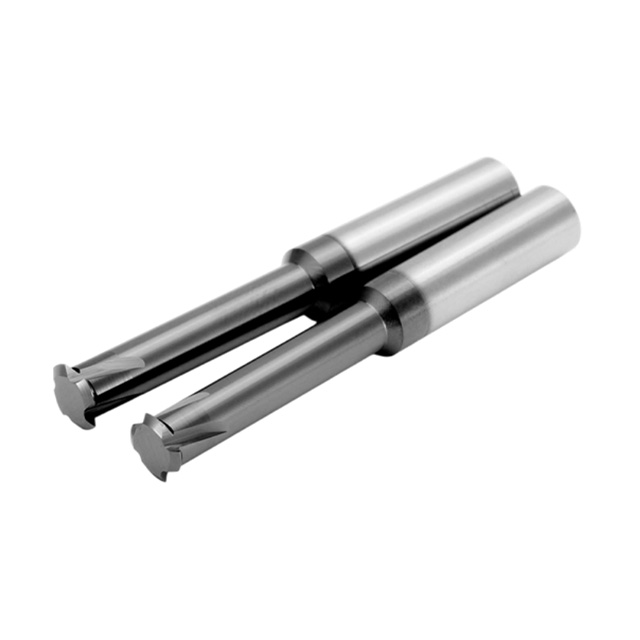

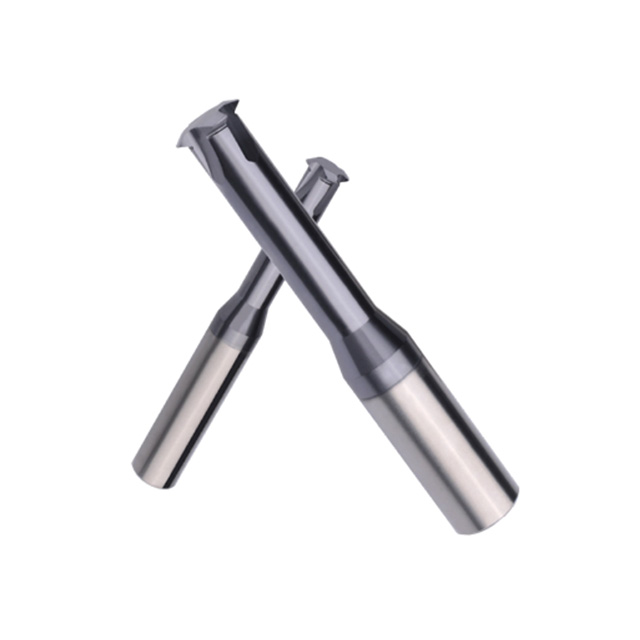

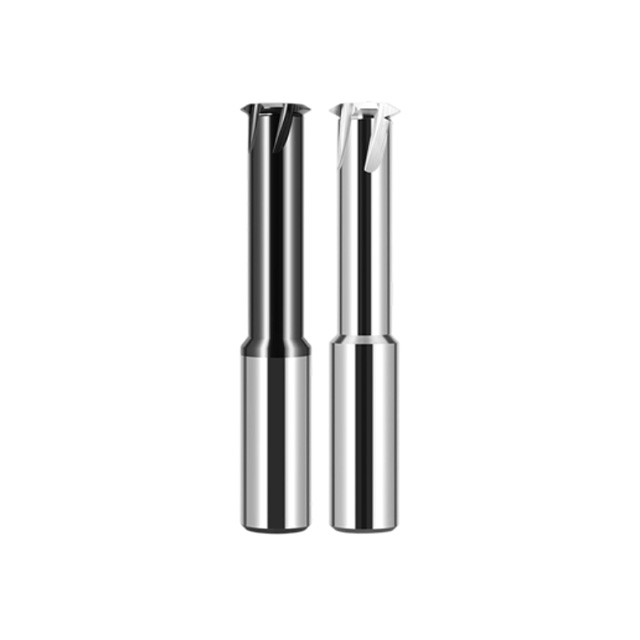

Single Tooth Metric Thread Milling Cutter

SKU:
Availability:



Inquire

Single tooth thread mill Single point thread mill

Product Description

Technical Parameters

Product Uses

Single Tooth Metric Thread Milling Cutter

Coating Items

JS25 – Applicable materials: Universal use for ≤HRC60 material; Stainless (austenitic & martensite, 316L, 303, 304, 321, 316F, High Nickel Stainless...); Steel (Bearing steel, quenched steel, Cr–Mo steel, Mn steel...); Kovar alloy; Superalloy; Copper; Iron casting; Pig iron; Nickel alloy.

AT25 – Applicable materials: Stainless steels, Carbon Steel, Alloy steel, Bearing steel, Quenched steel, Cr–Mo steel, Mn steel, etc.

LC25 – Applicable materials: Special use for viscous material: Aluminium, PMMA, Polyethylene, CFRP.

Technical Parameters

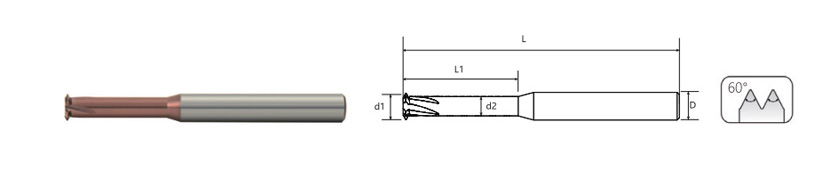

Order Code	PITCH	Thread Size	d1	d2	L1	D	L	Flutes
P020.055.015.0450S	0.2	M0.8+P0.2	0.55	0.29	1.5	4	50	2
P025.070.031.0450S	0.25	M1/M1.4+P0.25	0.7	0.375	3.1	4	50	3
P025.090.038.0450S	0.25	M1.2+P0.25	0.9	0.575	3.8	4	50	3
P030.105.040.0450S	0.3	M1.4+P0.3	1.05	0.66	4	4	50	3
P035.120.050.0450S	0.35	M1.6+P0.35	1.2	0.745	5	4	50	3
P035.140.050.0450S	0.35	M1.8/M2+0.35	1.4	0.945	5.6	4	50	3
P040.154.060.0450S	0.4	M2+P0.4	1.54	1.02	6	4	50	3
P045.196.065.0450S	0.45	M2.5+P0.45	1.96	1.375	6.5	4	50	3
P050.240.080.0450S	0.5	M3+P0.5	2.4	1.75	8	4	50	3
P050.600.200.0650S	0.5	M8+P0.5	6	5.35	20	6	50	3
P050.275.100.0450S	0.6	M3.5+P0.6	2.75	1.97	10	4	50	3
P070.315.100.0450S	0.7	M4+P0.7	3.15	2.24	10	4	50	3
P075.350.120.0450S	0.75	M4.5+P0.75	3.5	2.525	12	4	50	3
P075.600.200.0650S	0.75	M8+P0.75	6	5.025	20	6	50	3
P080.400.120.0450S	0.8	M5+P0.8	4	2.96	12	4	50	3
P100.480.150.0650S	1	M6+P1	4.8	3.5	15	6	50	3
P125.600.200.0650S	1.25	M8+P1.25	6	4.375	20	6	50	3
P150.800.250.0860S	1.5	M10+P1.5	8	6.05	25	8	60	3
P150.820.310.1075S	1.5	M10+P1.5	8.2	6.25	31	10	75	4
P150.1200.300.1275S	1.5	M14+P1.5	12	10.05	30	12	75	4
P175.1000.300.1075S	1.75	M12+P1.75	10	7.725	30	10	75	4
P200.1000.360.1075S	2	M14+P2	10	7.4	36	10	75	4
P200.1160.450.1275S	2	M14+P2	11.6	9	45	12	75	4
P200.1200.450.1275S	2	M16+P2	12	9.4	45	12	75	4
P200.1360.500.1410S	2	M16+P2	13.6	11	50	14	100	5
P250.1400.480.1490S	2.5	M18+P2.5	14	10.75	48	14	90	5
P250.1600.610.1610S	2.5	M20+P2.5	16	12.75	61	16	100	5
P300.1400.480.1490S	3	M24+P3.0	14	10.1	48	14	90	5
P350.1600.500.1690S	3.5	M30+P3.5	16	11.45	50	16	90	5

Order NO.	D1(刃径)	L1(刃长)	D(柄径)	AL(全长)	F(刃数)	R(R角)
P-EM-6-75-4F	6	24	6	75	4	/
P-EM-6-100-4F	6	30	6	100	4	/
P-EM-6-150-4F	6	45	6	150	4	/
P-EM-6-200-4F	6	45	6	200	4	/
P-EM-8-60-4F	8	20	8	60	4	/
P-EM-8-75-4F	8	25	8	75	4	/
P-EM-8-100-4F	8	35	8	100	4	/
P-EM-8-150-4F	8	50	8	150	4	/
P-EM-8-200-4F	8	50	8	200	4	/
P-EM-10-75-4F	10	25	10	75	4	/
P-EM-10-100-4F	10	40	10	100	4	/
P-EM-10-150-4F	10	55	10	150	4	/
P-EM-10-200-4F	10	55	10	200	4	/
P-EM-12-75-4F	12	30	12	75	4	/
P-EM-12-100-4F	12	45	12	100	4	/
P-EM-12-150-4F	12	55	12	150	4	/
P-EM-12-200-4F	12	55	12	200	4	/
P-EM-12-250-4F	12	55	12	250	4	/
P-EM-14-100-4F	14	45	14	100	4	/
P-EM-14-150-4F	14	60	14	150	4	/
P-EM-16-100-4F	16	45	16	100	4	/
P-EM-16-150-4F	16	70	16	150	4	/
P-EM-16-200-4F	16	70	16	200	4	/
P-EM-16-250-4F	16	70	16	250	4	/
P-EM-18-100-4F	18	45	18	100	4	/
P-EM-18-150-4F	18	70	18	150	4	/
P-EM-18-200-4F	18	70	18	200	4	/
P-EM-20-100-4F	20	45	20	100	4	/
P-EM-20-150-4F	20	70	20	150	4	/
P-EM-20-200-4F	20	70	20	200	4	/
P-EM-20-250-4F	20	70	20	250	4	/
P-EM-22-100-4F	22	45	22	100	4	/
P-EM-25-100-4F	25	45	25	100	4	/
