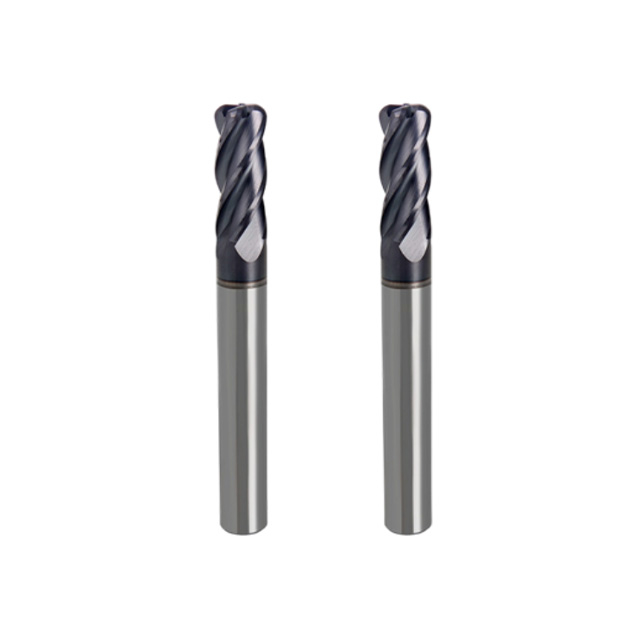

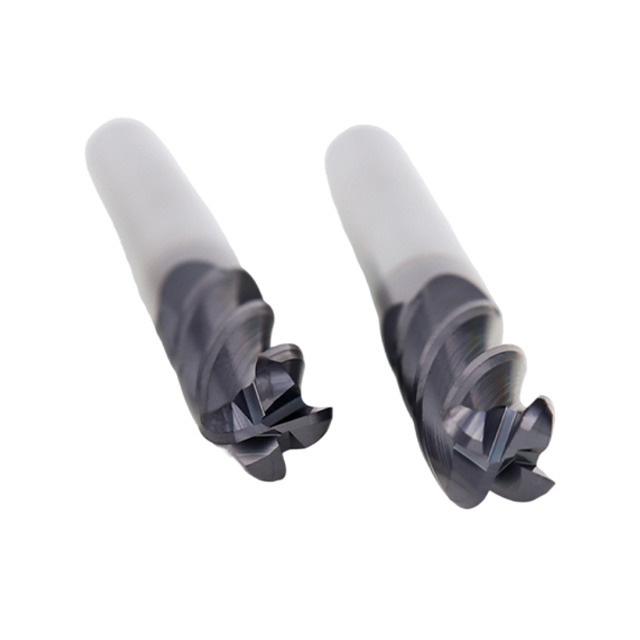

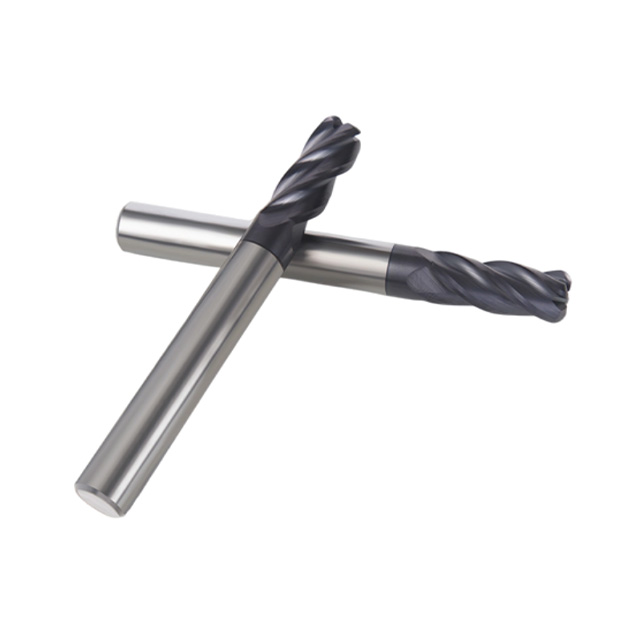

Corner Radius End Mill

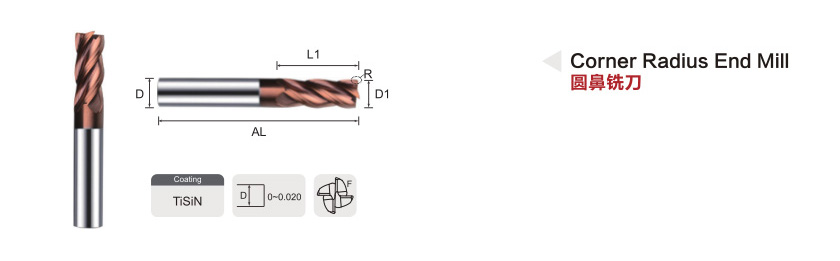

Technical Parameters
| Order NO. | D1(刃径) | L1(刃长) | D(柄径) | AL(全长) | F(刃数) | R(R角) |
| P-CR-1R02-50-4F | 1 | 3 | 4 | 50 | 4 | 0.2 |
| P-CR-1.5R02-50-4F | 1.5 | 4 | 4 | 50 | 4 | 0.2 |
| P-CR-2R02-50-4F | 2 | 5 | 4 | 50 | 4 | 0.2 |
| P-CR-2.5R02-50-4F | 2.5 | 6 | 4 | 50 | 4 | 0.2 |
| P-CR-3R02-50A-4F | 3 | 8 | 3 | 50 | 4 | 0.2 |
| P-CR-3R02-50B-4F | 3 | 8 | 4 | 50 | 4 | 0.2 |
| P-CR-4R02-50-4F | 4 | 10 | 4 | 50 | 4 | 0.2 |
| P-CR-4R02-75-4F | 4 | 16 | 4 | 75 | 4 | 0.2 |
| P-CR-4R02-100-4F | 4 | 20 | 4 | 100 | 4 | 0.2 |
| P-CR-5R02-50-4F | 5 | 13 | 5 | 50 | 4 | 0.2 |
| P-CR-6R02-50-4F | 6 | 15 | 6 | 50 | 4 | 0.2 |
| P-CR-6R02-75-4F | 6 | 20 | 6 | 75 | 4 | 0.2 |
| P-CR-6R02-100-4F | 6 | 25 | 6 | 100 | 4 | 0.2 |
| P-CR-8R02-60-4F | 8 | 20 | 8 | 60 | 4 | 0.2 |
| P-CR-8R02-75-4F | 8 | 25 | 8 | 75 | 4 | 0.2 |
| P-CR-8R02-100-4F | 8 | 30 | 8 | 100 | 4 | 0.2 |
| P-CR-10R02-75-4F | 10 | 25 | 10 | 75 | 4 | 0.2 |
| P-CR-10R02-100-4F | 10 | 30 | 10 | 100 | 4 | 0.2 |
| P-CR-12R02-75-4F | 12 | 30 | 12 | 75 | 4 | 0.2 |
| P-CR-15R05-50-4F | 15 | 4 | 4 | 50 | 4 | 0.5 |
| P-CR-2R05-50-4F | 2 | 5 | 4 | 50 | 4 | 0.5 |
| P-CR-2.5R05-50-4F | 2.5 | 6 | 4 | 50 | 4 | 0.5 |
| P-CR-3R05-50-4F | 3 | 8 | 4 | 50 | 4 | 0.5 |
| P-CR-3R05-75-4F | 3 | 9 | 3 | 75 | 4 | 0.5 |
| Order NO. | D1(刃径) | L1(刃长) | D(柄径) | AL(全长) | F(刃数) | R(角) |
| P-CR-3R05-100-4F | 3 | 12 | 3 | 100 | 4 | 0.5 |
| P-CR-3.5R05-50-4F | 3.5 | 9 | 4 | 50 | 4 | 0.5 |
| P-CR-4R05-50-4F | 4 | 10 | 4 | 50 | 4 | 0.5 |
| P-CR-4R05-75-4F | 4 | 16 | 4 | 75 | 4 | 0.5 |
| P-CR-4R05-100-4F | 4 | 20 | 4 | 100 | 4 | 0.5 |
| P-CR-5R05-50A-4F | 5 | 13 | 5 | 50 | 4 | 0.5 |
| P-CR-5R05-50B-4F | 5 | 13 | 6 | 50 | 4 | 0.5 |
| P-CR-6R05-50-4F | 6 | 15 | 6 | 50 | 4 | 0.5 |
| P-CR-6R05-75-4F | 6 | 20 | 6 | 75 | 4 | 0.5 |
| P-CR-6R05-100-4F | 6 | 25 | 6 | 100 | 4 | 0.5 |
| P-CR-6R05-150-4F | 6 | 40 | 6 | 150 | 4 | 0.5 |
| P-CR-8R05-60-4F | 8 | 20 | 8 | 60 | 4 | 0.5 |
| P-CR-8R05-75-4F | 8 | 25 | 8 | 75 | 4 | 0.5 |
| P-CR-8R05-100-4F | 8 | 30 | 8 | 100 | 4 | 0.5 |
| P-CR-8R05-150-4F | 8 | 45 | 8 | 150 | 4 | 0.5 |
| P-CR-10R05-75-4F | 10 | 25 | 10 | 75 | 4 | 0.5 |
| P-CR-10R05-100-4F | 10 | 30 | 10 | 100 | 4 | 0.5 |
| P-CR-10R05-150-4F | 10 | 50 | 10 | 150 | 4 | 0.5 |
| P-CR-12R05-75-4F | 12 | 30 | 12 | 75 | 4 | 0.5 |
| P-CR-12R05-100-4F | 12 | 35 | 12 | 100 | 4 | 0.5 |
| P-CR-14R05-100-4F | 14 | 55 | 14 | 150 | 4 | 0.5 |
| P-CR-16R05-100-4F | 16 | 40 | 16 | 100 | 4 | 0.5 |
| P-CR-16R05-150-4F | 16 | 65 | 16 | 150 | 4 | 0.5 |
| P-CR-20R05-100-4F | 20 | 40 | 20 | 100 | 4 | 0.5 |
| P-CR-20R05-150-4F | 20 | 70 | 20 | 150 | 4 | 0.5 |
| P-CR-3R1-50-4F | 3 | 8 | 4 | 50 | 4 | R1 |
| P-CR-4R1-50-4F | 4 | 10 | 4 | 50 | 4 | R1 |
| P-CR-4R1-75-4F | 4 | 16 | 4 | 75 | 4 | R1 |
| P-CR-4R1-100-4F | 4 | 20 | 4 | 100 | 4 | R1 |
| P-CR-5R1-50A-4F | 5 | 13 | 5 | 50 | 4 | R1 |
| P-CR-5R1-75-4F | 5 | 15 | 5 | 75 | 4 | R1 |
| P-CR-5R1-50B-4F | 5 | 13 | 6 | 50 | 4 | R1 |
| P-CR-6R1-50-4F | 6 | 15 | 6 | 50 | 4 | R1 |
| P-CR-6R1-75-4F | 6 | 20 | 6 | 75 | 4 | R1 |
| P-CR-6R1-100-4F | 6 | 25 | 6 | 100 | 4 | R1 |
| P-CR-6R1-150-4F | 6 | 40 | 6 | 150 | 4 | R1 |
| P-CR-8R1-60-4F | 8 | 20 | 8 | 60 | 4 | R1 |
| P-CR-8R1-75-4F | 8 | 25 | 8 | 75 | 4 | R1 |
| P-CR-8R1-100-4F | 8 | 30 | 8 | 100 | 4 | R1 |
| P-CR-8R1-150-4F | 8 | 45 | 8 | 150 | 4 | R1 |
| P-CR-10R1-75-4F | 10 | 25 | 10 | 75 | 4 | R1 |
| P-CR-10R1-100-4F | 10 | 30 | 10 | 100 | 4 | R1 |
| P-CR-10R1-150-4F | 10 | 50 | 10 | 150 | 4 | R1 |
| P-CR-12R1-75-4F | 12 | 30 | 12 | 75 | 4 | R1 |
| P-CR-12R1-100-4F | 12 | 35 | 12 | 100 | 4 | R1 |
| P-CR-12R1-150-4F | 12 | 55 | 12 | 150 | 4 | R1 |
| P-CR-14R1-100-4F | 14 | 35 | 14 | 100 | 4 | R1 |
| P-CR-16R1-100-4F | 16 | 40 | 16 | 100 | 4 | R1 |
| P-CR-16R1-150-4F | 16 | 65 | 16 | 150 | 4 | R1 |
| P-CR-20R1-100-4F | 20 | 40 | 20 | 100 | 4 | R1 |
| P-CR-20R1-150-4F | 20 | 70 | 20 | 150 | 4 | R1 |
| P-CR-6R1.5-50-4F | 6 | 15 | 6 | 50 | 4 | R1.5 |
| P-CR-8R1.5-60-4F | 8 | 20 | 8 | 60 | 4 | R1.5 |
| P-CR-8R1.5-75-4F | 8 | 25 | 8 | 75 | 4 | R1.5 |
| P-CR-10R1.5-75-4F | 10 | 25 | 10 | 75 | 4 | R1.5 |
| P-CR-10R1.5-100-4F | 10 | 30 | 10 | 100 | 4 | R1.5 |
| P-CR-10R1.5-150-4F | 10 | 50 | 10 | 150 | 4 | R1.5 |
| P-CR-12R1.5-75-4F | 12 | 30 | 12 | 75 | 4 | R1.5 |
| P-CR-12R1.5-100-4F | 12 | 35 | 12 | 100 | 4 | R1.5 |
| P-CR-20R1.5-100-4F | 20 | 40 | 20 | 100 | 4 | R1.5 |
| Order NO. | D1(刃径) | L1(刃长) | D(柄径) | AL(全长) | F(刃数) | R(R角) |
| P-CR-6R2-50-4F | 6 | 15 | 6 | 50 | 4 | R2 |
| P-CR-6R2-75-4F | 6 | 20 | 6 | 75 | 4 | R2 |
| P-CR-8R2-60-4F | 8 | 20 | 8 | 60 | 4 | R2 |
| P-CR-8R2-75-4F | 8 | 25 | 8 | 75 | 4 | R2 |
| P-CR-8R2-100-4F | 8 | 30 | 8 | 100 | 4 | R2 |
| P-CR-8R2-150-4F | 8 | 45 | 8 | 150 | 4 | R2 |
| P-CR-10R2-75-4F | 10 | 25 | 10 | 75 | 4 | R2 |
| P-CR-10R2-100-4F | 10 | 30 | 10 | 100 | 4 | R2 |
| P-CR-10R2-150-4F | 10 | 50 | 10 | 150 | 4 | R2 |
| P-CR-12R2-75-4F | 12 | 30 | 12 | 75 | 4 | R2 |
| P-CR-12R2-100-4F | 12 | 35 | 12 | 100 | 4 | R2 |
| P-CR-12R2-150-4F | 12 | 55 | 12 | 150 | 4 | R2 |
| P-CR-16R2-100-4F | 16 | 40 | 16 | 100 | 4 | R2 |
| P-CR-16R2-150-4F | 16 | 65 | 16 | 150 | 4 | R2 |
| P-CR-20R2-100-4F | 20 | 40 | 20 | 100 | 4 | R2 |
| P-CR-12R2.5-75-4F | 12 | 30 | 12 | 75 | 4 | R2.5 |
| P-CR-12R2.5-100-4F | 12 | 35 | 12 | 100 | 4 | R2.5 |
| P-CR-10R3-75-4F | 10 | 25 | 10 | 75 | 4 | R3 |
| P-CR-10R3-100-4F | 10 | 30 | 10 | 100 | 4 | R3 |
| P-CR-12R3-75-4F | 12 | 30 | 12 | 75 | 4 | R3 |
| P-CR-12R3-100-4F | 12 | 35 | 12 | 100 | 4 | R3 |
| P-CR-12R3-150-4F | 12 | 55 | 12 | 150 | 4 | R3 |
| P-CR-16R3-100-4F | 16 | 40 | 16 | 100 | 4 | R3 |
| P-CR-16R3-150-4F | 16 | 65 | 16 | 150 | 4 | R3 |
| P-CR-20R3-100-4F | 20 | 40 | 20 | 100 | 4 | R3 |
| P-CR-20R3-150-4F | 20 | 70 | 20 | 150 | 4 | R3 |
Product Uses
1. High-efficiency 3D profiling and continuous contour roughing for complex mold cavities.
2. Chipping-resistant corner radius machining and bottom-corner fillet blending for aerospace and automotive parts.
3. High-feed trochoidal milling and long-life roughing in difficult-to-machine materials like titanium and stainless steel.
4. Widely utilized in CNC machining, die & mold steel, aerospace, medical hardware, automotive, and other industries.
