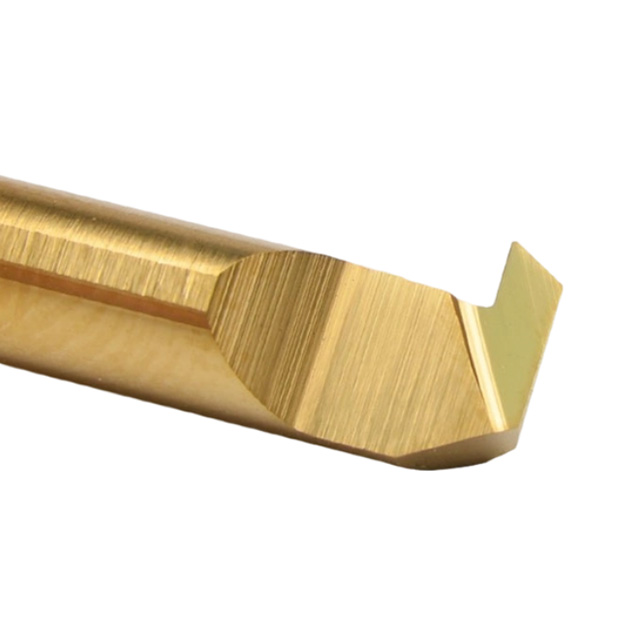

MXR Reverse Boring Cutter

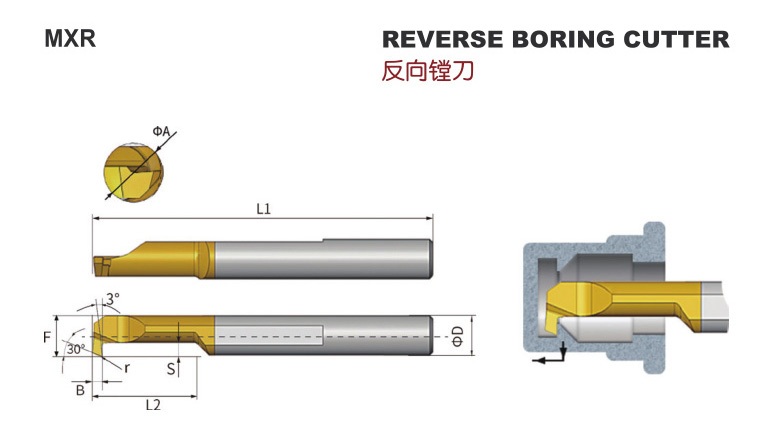

Technical Parameters
| Product Type | Min. Dia(mm)ΦA | ΦD | r | L1 | L2 | F | S | B |
| MXR4R0.1L16 | 4.1 | 4 | 0.10 | 46 | 16 | 3.8 | 1.00 | 1.30 |
| MXR5R0.1L20 | 5.1 | 5 | 0.10 | 54 | 20 | 4.8 | 1.30 | 1.50 |
| MXR6R0.1L25 | 6.1 | 6 | 0.10 | 60 | 25 | 5.8 | 1.60 | 1.50 |
Product Uses
1.The Reverse boring tool features specially oriented cutting edges that enable back boring and undercutting in locations inaccessible to standard boring bars, ideal for internal groove and chamfer applications.
2.The Back boring bar is manufactured from micro-grain carbide, delivering exceptional impact resistance and wear stability for reverse boring operations in confined internal bores.
3.The Reverse boring tool features specially oriented cutting edges that enable back boring from the far side of the workpiece, accessing internal bores and undercuts that standard forward boring tools cannot reach.
