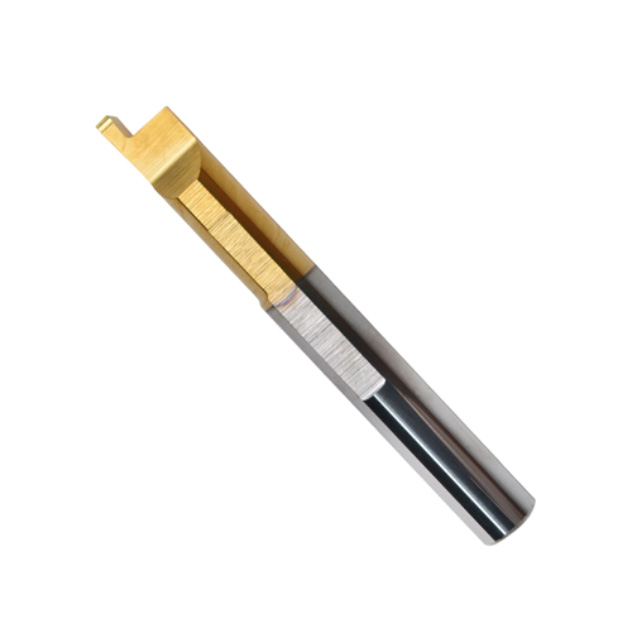

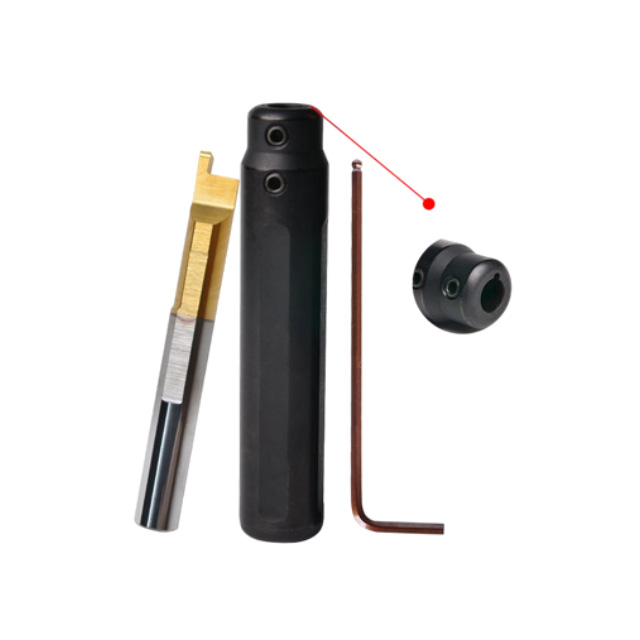

MFR Face Grooving Cutter

SKU:
Availability:



Inquire

Face grooving tool Face grooving cutter Micro face grooving bar

Product Description

Technical Parameters

Product Uses

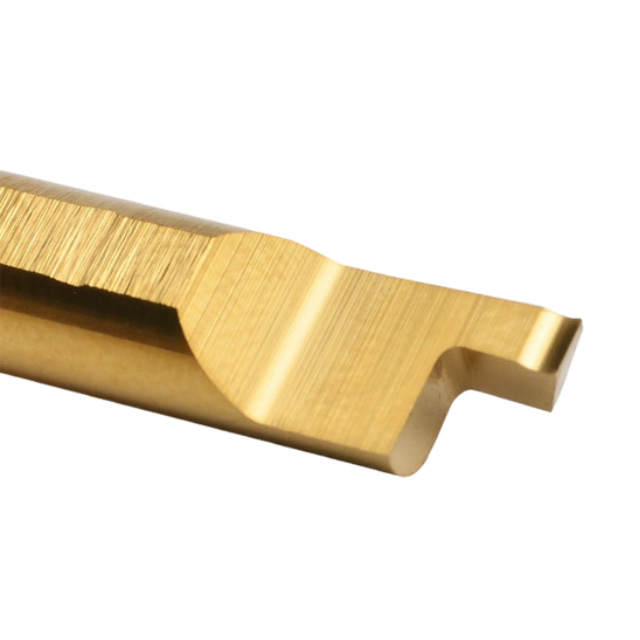

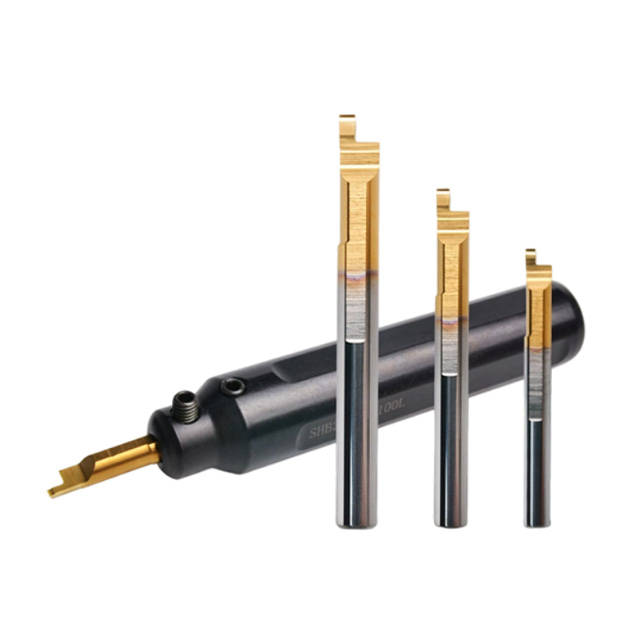

MFR Face Grooving Cutter

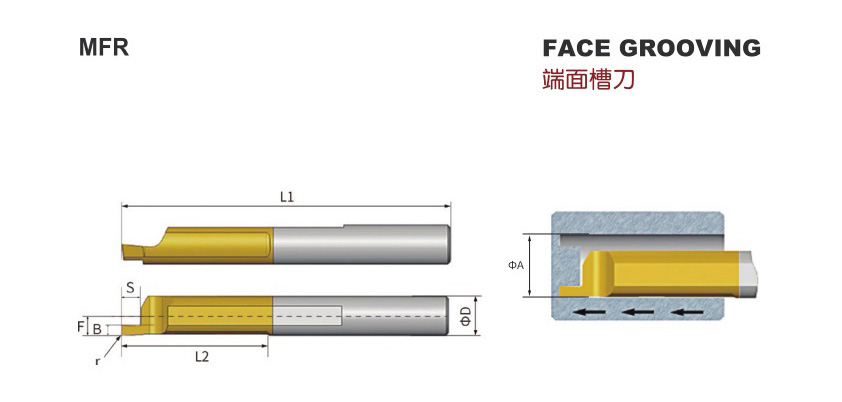

Technical Parameters

Product Type	Min. Dia (mm) ΦA	ΦD	r	L1	L2	F	S	B
MFR4B0.5L12	5.0	4	0.05	40	12	1.9	1.00	0.50
MFR4B1.0L12	5.0	4	0.05	40	12	1.9	1.50	1.00
MFR4B1.5L12	5.0	4	0.05	40	12	1.9	2.00	1.50
MFR5B1.0L15	6.0	5	0.10	50	15	2.4	1.50	1.00
MFR5B1.5L15	6.0	5	0.10	50	15	2.4	2.50	1.50
MFR5B2.0L15	6.0	5	0.10	50	15	2.4	3.00	2.00
MFR6B1.0L20	8.0	6	0.10	50	20	2.9	2.00	1.00
MFR6B1.5L20	8.0	6	0.10	50	20	2.9	2.50	1.50
MFR6B2.0L20	8.0	6	0.10	50	20	2.9	3.00	2.00
MFR6B3.0L20	8.0	6	0.10	50	20	2.9	4.50	3.00
MFR8B2.0L22	10.0	8	0.10	60	22	3.9	3.50	2.00
MFR8B2.5L22	10.0	8	0.10	60	22	3.9	3.50	2.50
MFR8B3.0L22	10.0	8	0.10	60	22	3.9	3.50	3.50

Product Uses

1. Face groove at the bottom" inside a small-diameter blind hole

2. Face relief groove / undercut" at the junction of a stepped hole

3.The Face grooving tool features a compact head geometry that reaches confined internal face areas, enabling precision grooving on small-diameter components where standard tools cannot enter
