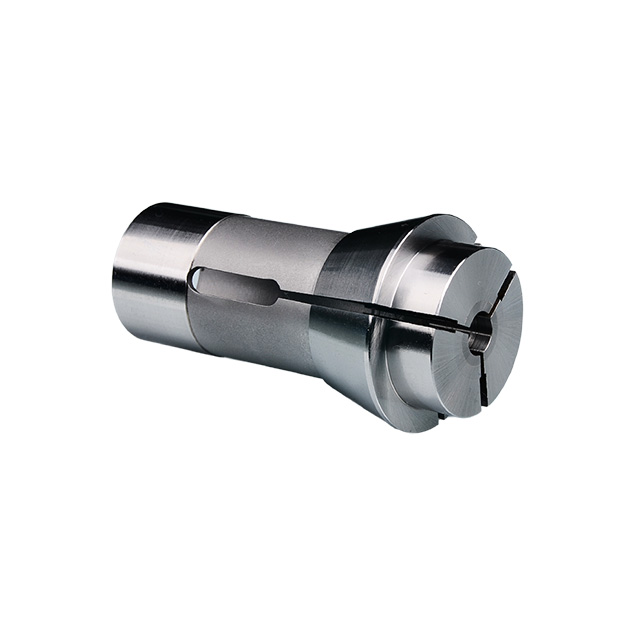

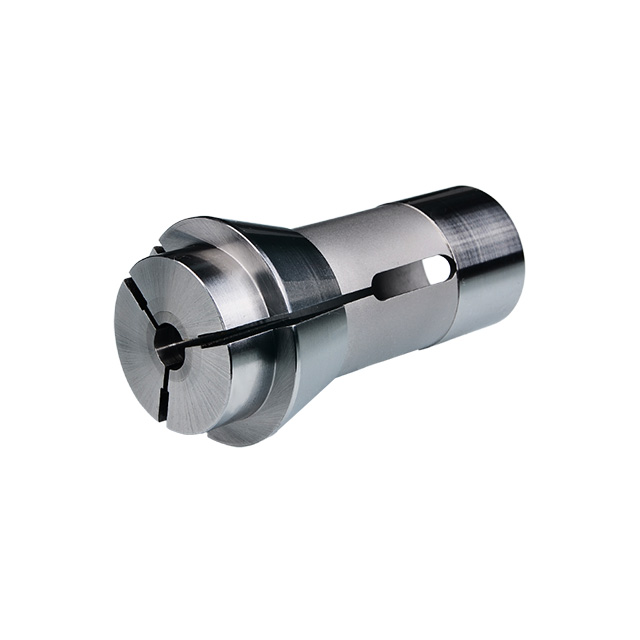

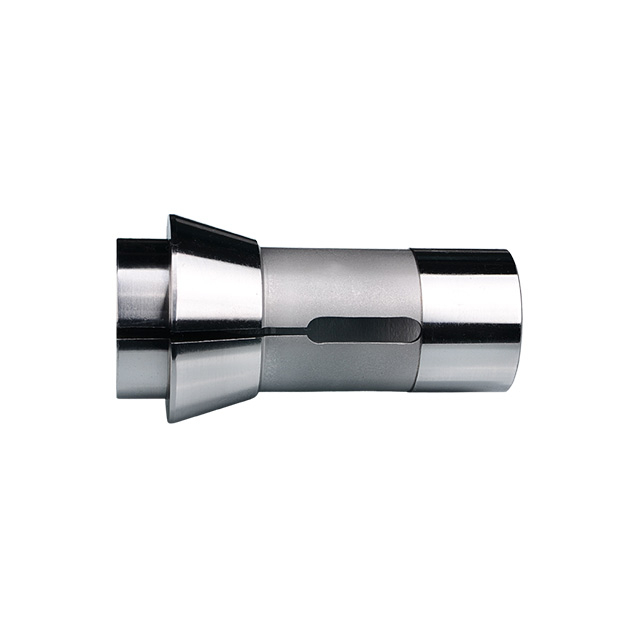

TF30-157E Round Smooth Grooved Dead Length Lathe Collet
Technical Parameters

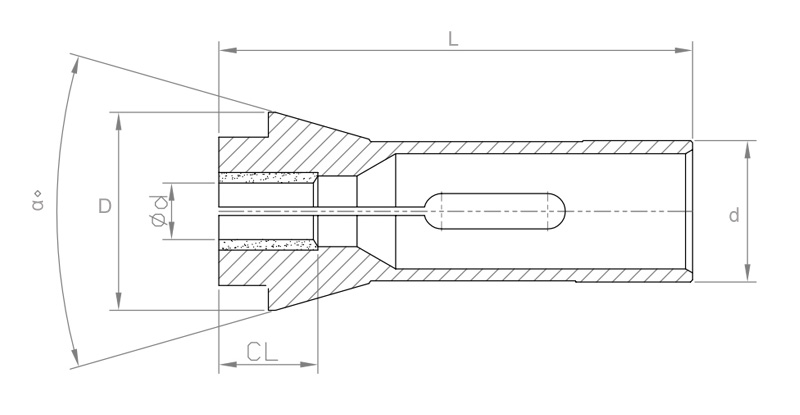

| Order Code | d | D | L | E | F | α | A Max - Round | A Max - Hex | A Max - Square | US code | Swiss code | Swiss code |
| INSF30/63 | 30 | 42 | 80 | 10 | 34 | 16° | 25 | 21 | 17 | TF30 | 157E | F16 76-1076 |
Product Uses
1.Precision dead-length 157E/TF30 collet Swiss-type lathes.
2.The TF30 collet holds the workpiece axially fixed during clamping, ensuring consistent face-location accuracy for deep-hole drilling and thread-chasing operations.
3.This 157E collet combines smooth and grooved bore finishes, preventing surface damage on smaller diameters while delivering anti-slip torque transmission for larger stock.
4.Engineered with precision-balanced geometry, the 157E collet minimizes high-frequency vibration during high-RPM operation, extending both tool and spindle bearing life.
