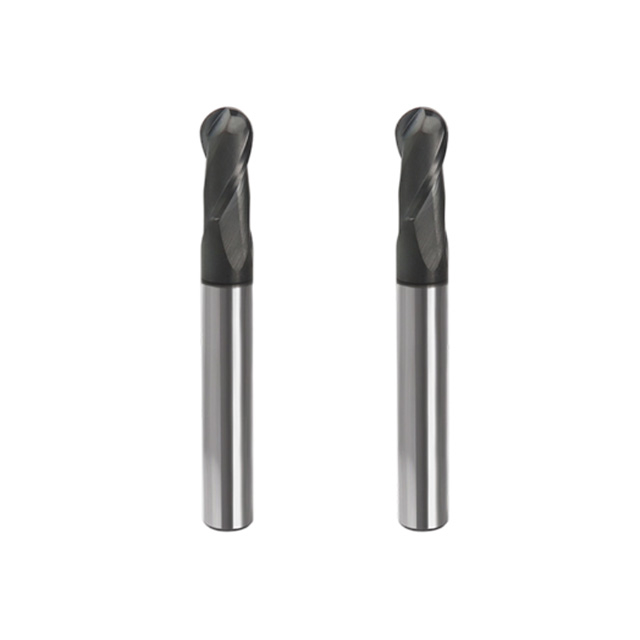

Ball Nose End Mill

Share to:
facebook sharing button
whatsapp sharing button
linkedin sharing button
sharethis sharing button
SKU:
Availability:
Inquire

Ball end mill Carbide ball end mill
Product Description
Technical Parameters
Product Uses

Ball Nose End Mill

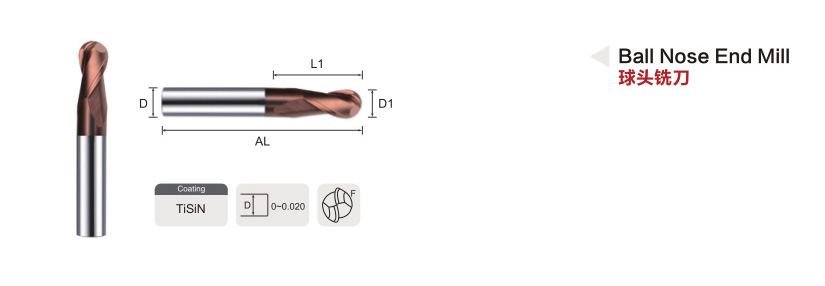

Ball-End-Mill

Technical Parameters

Order NO.D1(刃径)L1(刃长)D(柄径)AL(全长)F(刃数)R(R角)
P-BN-1R05-50-2F124502R0.5
P-BN-1R05-75-2F124752R0.5
P-BN-1R05-100-2F1241002R0.5
P-BN-1.5R075-50-2F1.534502R0.75
P-BN-1.5R075-75-2F1.534752R0.75
P-BN-1.5R075-100-2F1.5341002R0.75
P-BN-2R1-50-2F244502R1
P-BN-2R1-75-2F244752R1
P-BN-2R1-100-2F2441002R1
P-BN-2.5R125-50-2F2.554502R1.25
P-BN-2.5R125-75-2F2.554752R1.25
P-BN-3R15-50A-2F363502R1.5
P-BN-3R15-75A-2F363752R1.5
P-BN-3R15-100A-2F3631002R1.5
P-BN-3R15-50B-2F364502R1.5
P-BN-3R15-75B-2F364752R1.5
P-BN-3R15-100B-2F3641002R1.5
P-BN-3.5R175-50-2F3.574502R1.75
P-BN-4R2-50-2F484502R2
P-BN-4R2-75-2F484752R2
P-BN-4R2-100-2F4841002R2
P-BN-5R25-50A-2F5105502R2.5
P-BN-5R25-75A-2F5105752R2.5
P-BN-5R25-100A-2F51051002R2.5
P-BN-5R25-50B-2F5106502R2.5
P-BN-5R25-75B-2F5106752R2.5
P-BN-5R25-100B-2F51061002R2.5
P-BN-6R3-50-2F6126502R3
P-BN-6R3-75-2F6126752R3
P-BN-6R3-100-2F61261002R3
P-BN-6R3-150-2F61261502R3
P-BN-8R4-60-2F8168602R4
P-BN-8R4-75-2F8168752R4
P-BN-8R4-100-2F81681002R4
P-BN-8R4-150-2F81681502R4
P-BN-10R5-75-2F102010752R5
P-BN-10R5-100-2F1020101002R5
P-BN-10R5-150-2F1020101502R5
P-BN-12R6-75-2F122412752R6
P-BN-12R6-100-2F1224121002R6
P-BN-12R6-150-2F1224121502R6
P-BN-14R7-100-2F1428141002R7
Order NO.D1(刃径)L1(刃长)D(柄径)AL(全长)F(刃数)R(R角)
P-BN-14R7-150-2F1428141502R7
P-BN-16R8-100-2F1632161002R8
P-BN-16R8-150-2F1632161502R8
P-BN-18R9-100-2F1836181002R9
P-BN-20R10-100-2F2040201002R10
P-BN-20R10-150-2F2040201502R10

Product Uses

1. High-precision 3D surface finishing and smooth profiling on complex geometric contours

2. Seamless bottom-pocket radius blending and deep-cavity clearance machining for precision dies and molds

3. Vibration-damped copy-milling and multi-axis continuous cutting in aluminum, steel, or hardened alloys

4. Widely utilized in CNC machining, mold manufacturing, aerospace, medical implants, 3D die sinking, and other industries.
