MBQR Quick Change Micro Boring Cutter

SKU:
Availability:



Inquire

Quick change profiling tool Micro profile boring bar Profile boring bar

Product Description

Technical Parameters

Product Uses

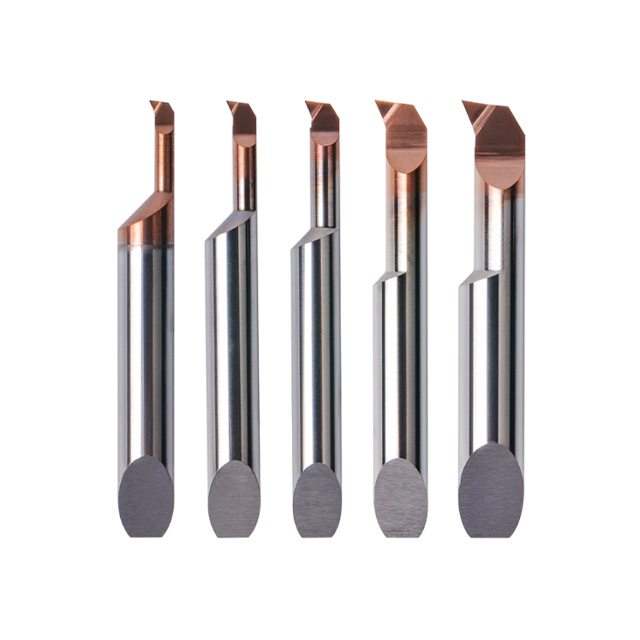

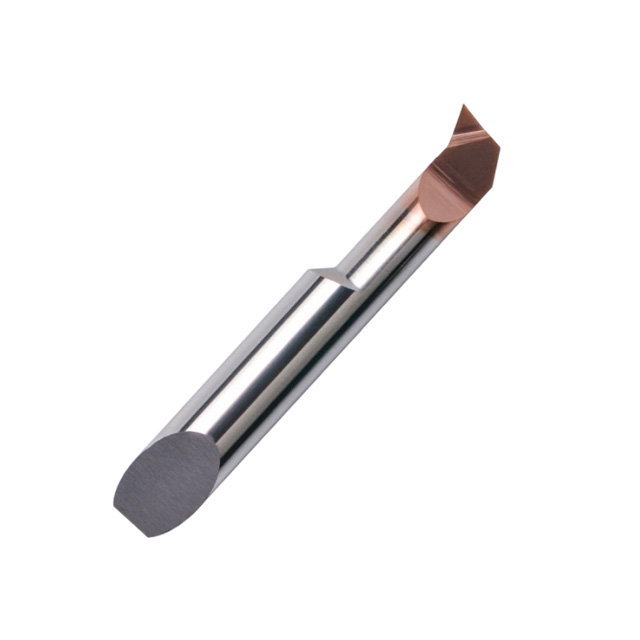

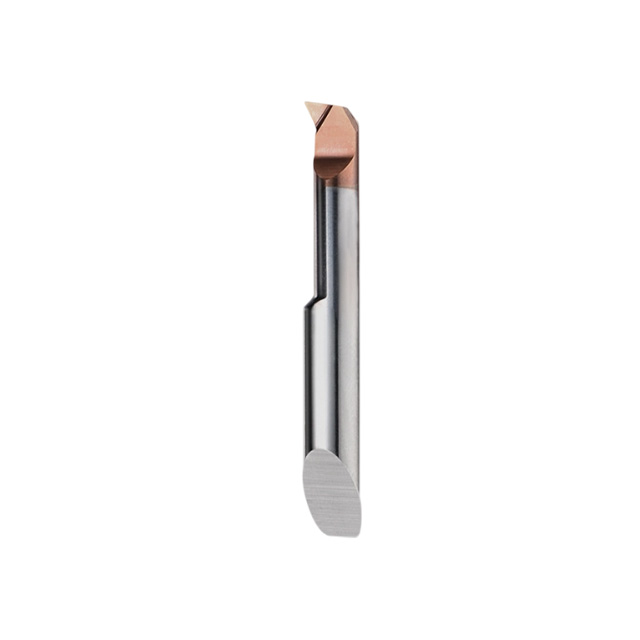

MBQR Quick Change Micro Boring Cutter

Quick-change boring tool is designed to significantly boost machining efficiency, enabling rapid and repeatable tool changes without the need for recalibration.

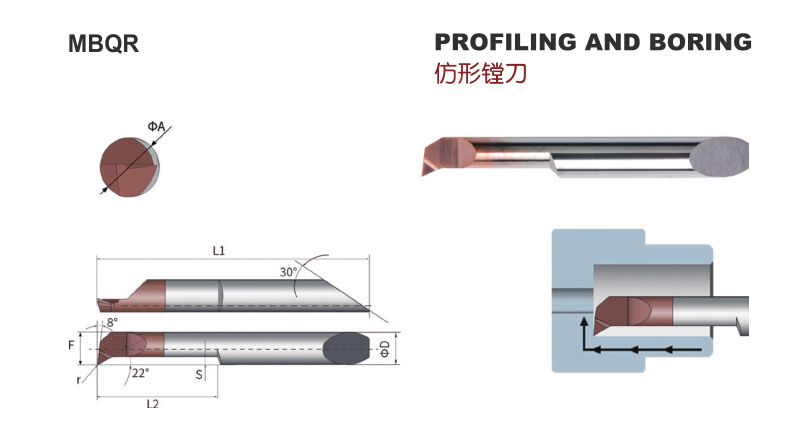

Technical Parameters

Product Type	Min. Dia(mm)ΦA	ΦD	r	L1	L2	F	S
MBQR0404L02R003-D-(C)	0.4	4	0.03	28	2	0.38	0.05
MBQR0406L02R003-D-(C)	0.6	4	0.03	28	2	0.55	0.06
MBQR0408L025R003-D-(C)	0.8	4	0.03	28	2.5	0.75	0.08
MBQR0410L04R005-D-(C)	1	4	0.05	29	4	0.9	0.15
MBQR0410L04R010-D-(C)	1	4	0.1	29	4	0.9	0.15
MBQR0410L06R005-D-(C)	1	4	0.05	31	6	0.9	0.15
MBQR0410L06R010-D-(C)	1	4	0.1	31	6	0.9	0.15
MBQR0412L04R005-D-(C)	1.2	4	0.05	29	4	1.1	0.15
MBQR0412L04R010-D-(C)	1.2	4	0.1	29	4	1.1	0.15
MBQR0412L06R005-D-C）	1.2	4	0.05	29	6	1.1	0.15
MBQR0412L06R010-D-(C)	1.2	4	0.1	29	6	1.1	0.15
MBQR0415L05R005-D-(C)	1.5	4	0.05	30	5	1.4	0.2
MBQR0415L05R010-D-(C)	1.5	4	0.1	30	5	1.4	0.2
MBQR0415L08R005-D-(C)	1.5	4	0.05	33	8	1.4	0.2
MBQR0415L08R010-D-C）	1.5	4	0.1	33	8	1.4	0.2
MBQR0418L05R005-D-(C)	1.8	4	0.05	30	5	1.7	0.2
MBQR0418L05R010-D-(C)	1.8	4	0.1	30	5	1.7	0.2
MBQR0418L09R005-D-(C)	1.8	4	0.05	34	9	1.7	0.2
MBQR0418L09R010-D-(C)	1.8	4	0.1	34	9	1.7	0.2
MBQR0421L06R005-D-(C)	2.1	4	0.05	31	6	1.85	0.25
MBQR0421L06R010-D-(C)	2.1	4	0.1	31	6	1.85	0.25
MBQR0421L10R005-D-(C)	2.1	4	0.05	35	10	1.85	0.25
MBQR0421L10R010-D-(C)	2.1	4	0.1	35	10	1.85	0.25
MBQR0426L08R005-D-(C)	2.6	4	0.05	33	8	2.35	0.3
MBQR0426L08R010-D-(C)	2.6	4	0.1	33	8	2.35	0.3
MBQR0426L08R015-D-(C)	2.6	4	0.15	33	8	2.35	0.3
MBQR0426L12R005-D-(C)	2.6	4	0.05	37	12	2.35	0.3
MBQR0426L12R010-D-(C)	2.6	4	0.1	37	12	2.35	0.3
MBQR0426L12R015-D-(C)	2.6	4	0.15	37	12	2.35	0.3
MBQR0426L15R005-D-(C)	2.6	4	0.05	40	15	2.35	0.3
MBQR0426L15R010-D-(C)	2.6	4	0.1	40	15	2.35	0.3
MBQR0426L15R015-D-(C)	2.6	4	0.15	40	15	2.35	0.3
MBQR0431L10R005-D-(C)	3.1	4	0.05	35	10	2.8	0.5
MBQR0431L10R010-D-(C)	3.1	4	0.1	35	10	2.8	0.5
MBQR0431L10R015-D-(C)	3.1	4	0.15	35	10	2.8	0.5
MBQR0431L15R005-D-(C)	3.1	4	0.05	40	15	2.8	0.5
MBQR0431L15R010-D-(C)	3.1	4	0.1	40	15	2.8	0.5
MBQR0431L15R015-D-(C)	3.1	4	0.15	40	15	2.8	0.5
MBQR0431L20R005-D-(C)	3.1	4	0.05	45	20	2.8	0.5
MBQR0431L20R010-D-(C)	3.1	4	0.1	45	20	2.8	0.5
MBQR0431L20R015-D-(C)	3.1	4	0.15	45	20	2.8	0.5
MBQR0441L12R005-D-(C)	4.1	4	0.05	37	12	3.8	0.6
MBQR0441L12R010-D-(C)	4.1	4	0.1	37	12	3.8	0.6
MBQR0441L12R020-D-(C)	4.1	4	0.2	37	12	3.8	0.6
MBQR0441L16R005-D-(C)	4.1	4	0.05	41	16	3.8	0.6
MBQR0441L16R010-D-(C)	4.1	4	0.1	41	16	3.8	0.6
MBQR0441L16R020-D-(C)	4.1	4	0.2	41	16	3.8	0.6
MBQR0441L20R005-D-(C)	4.1	4	0.05	45	20	3.8	0.6
MBQR0441L20R010-D-(C)	4.1	4	0.1	45	20	3.8	0.6
MBQR0441L20R020-D-(C)	4.1	4	0.2	45	20	3.8	0.6
MBQR0441L25R015-D-(C)	4.1	4	0.15	50	25	3.8	0.6
MBQR0551L15R005-D-(C)	5.1	5	0.05	40	15	4.8	0.8
MBQR0551L15R010-D-(C)	5.1	5	0.1	40	15	4.8	0.8
MBQR0551L15R020-D-(C)	5.1	5	0.2	40	15	4.8	0.8
MBQR0551L20R005-D-(C)	5.1	5	0.05	45	20	4.8	0.8
MBQR0551L20R010-D-(C)	5.1	5	0.1	45	20	4.8	0.8
MBQR0551L20R020-D-(C)	5.1	5	0.2	45	20	4.8	0.8
MBQR0551L25R005-D-(C)	5.1	5	0.05	50	25	4.8	0.8
MBQR0551L25R010-D-(C)	5.1	5	0.1	50	25	4.8	0.8
MBQR0551L25R020-D-(C)	5.1	5	0.2	50	25	4.8	0.8
MBQR0551L30R020-D-(C)	5.1	5	0.2	55	30	4.8	0.8
MBQR0551L35R020-D-(C)	5.1	5	0.2	60	35	4.8	0.9
MBQR0661L15R005-D-(C)	6.1	6	0.05	40	15	5.8	1
MBQR0661L15R010-D-(C)	6.1	6	0.1	40	15	5.8	1
MBQR0661L15R020-D-(C)	6.1	6	0.2	40	15	5.8	1
MBQR0661L20R005-D-(C)	6.1	6	0.05	45	20	5.8	1
MBQR0661L20R010-D-(C)	6.1	6	0.1	45	20	5.8	1
MBQR0661L20R020-D-(C)	6.1	6	0.2	45	20	5.8	1
MBQR0661L25R005-D-(C)	6.1	6	0.05	50	25	5.8	1
MBQR0661L25R010-D-(C)	6.1	6	0.1	50	25	5.8	1
MBQR0661L25R020-D-(C)	6.1	6	0.2	50	25	5.8	1
MBQR0661L30R005-D-(C)	6.1	6	0.05	55	30	5.8	1
MBQR0661L30R010-D-(C)	6.1	6	0.1	55	30	5.8	1
MBQR0661L30R020-D-(C)	6.1	6	0.2	55	30	5.8	1
MBQR0661L35R020-D-(C)	6.1	6	0.2	60	35	5.8	1
MBQR0661L40R020-D-(C)	6.1	6	0.2	65	40	5.8	1
MBQR0771L25R010-D-(C)	7.1	7	0.1	54	25	6.8	1.2
MBQR0771L25R020-D-(C)	7.1	7	0.2	54	25	6.8	1.2
MBQR0771L35R010-D-(C)	7.1	7	0.1	64	35	6.8	1.2
MBQR0771L35R020-D-(C)	7.1	7	0.2	64	35	6.8	1.2
MBQR0771L40R020-D-(C)	7.1	7	0.2	69	40	6.8	1.2
MBQR0771L50R020-D-(C)	7.1	7	0.2	79	50	6.8	1.2

Product Uses

1.The Micro profile boring bar features specialized ultra-small geometry for precise duplication of complex internal contours in miniature components.

2.The Profile boring bar integrates through-coolant supply for effective chip evacuation and heat dissipation, ensuring stable performance in extended lights-out production cycles.
