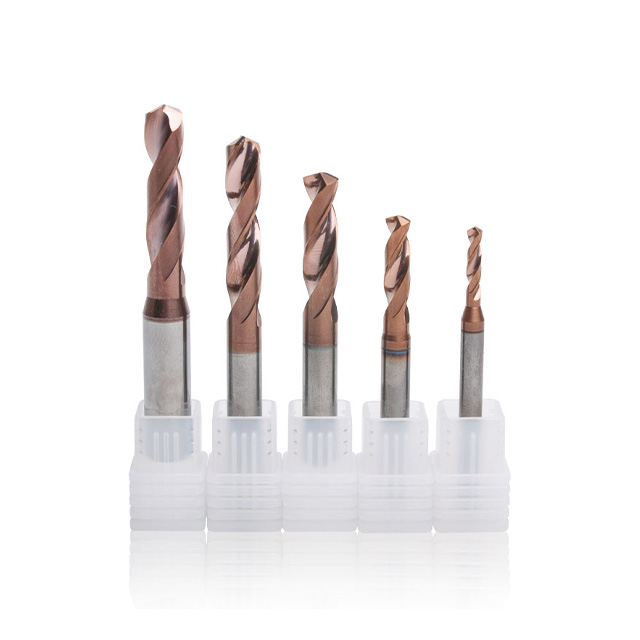

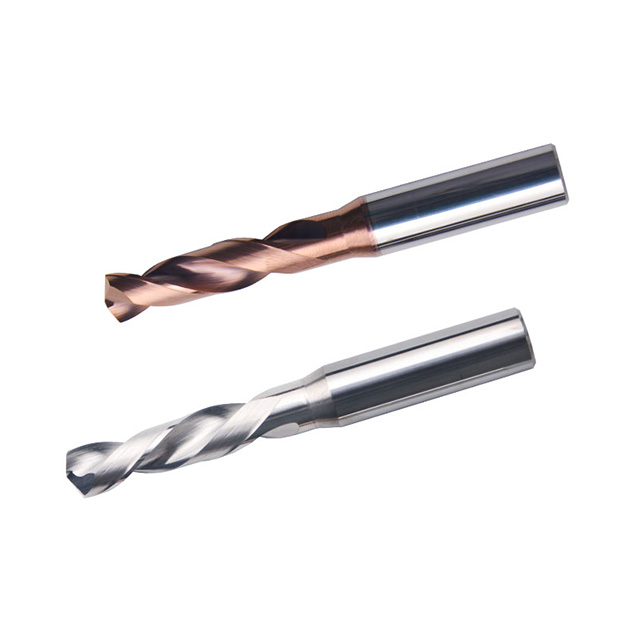

DIN Standard Carbide Drill
Technical Parameters

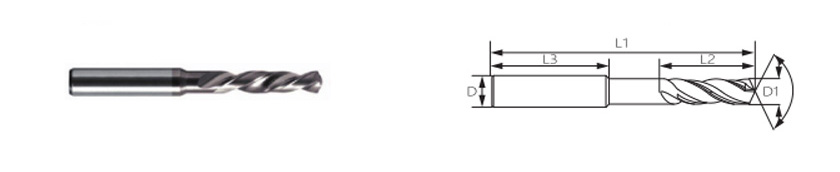

| Order NO. | Diameter D1 | Channel Length L2 | Full Length L1 | Shank Diameter D |
| FS-BG-300 | 3.00 | 20.0 | 62 | 4 |
| FS-BG-310 | 3.10 | 20.0 | 62 | 4 |
| FS-BG-320 | 3.20 | 20.0 | 62 | 4 |
| FS-BG-330 | 3.30 | 20.0 | 62 | 4 |
| FS-BG-340 | 3.40 | 20.0 | 62 | 4 |
| FS-BG-350 | 3.5 | 20 | 62 | 4 |
| FS-BG-360 | 3.6 | 20 | 62 | 4 |
| FS-BG-370 | 3.7 | 20 | 62 | 4 |
| FS-BG-380 | 3.8 | 24 | 66 | 4 |
| FS-BG-390 | 3.9 | 24 | 66 | 4 |
| FS-BG-400 | 4 | 24 | 66 | 4 |
| FS-BG-410 | 4.1 | 24 | 66 | 6 |
| FS-BG-420 | 4.2 | 24 | 66 | 6 |
| FS-BG-430 | 4.3 | 24 | 66 | 6 |
| FS-BG-440 | 4.4 | 24 | 66 | 6 |
| FS-BG-450 | 4.5 | 24 | 66 | 6 |
| FS-BG-460 | 4.6 | 24 | 66 | 6 |
| FS-BG-470 | 4.7 | 28 | 66 | 6 |
| FS-BG-480 | 4.8 | 28 | 66 | 6 |
| FS-BG-490 | 4.9 | 28 | 66 | 6 |
| FS-BG-500 | 5 | 28 | 66 | 6 |
| FS-BG-510 | 5.1 | 28 | 66 | 6 |
| FS-BG-520 | 5.2 | 28 | 66 | 6 |
| FS-BG-530 | 5.3 | 28 | 66 | 6 |
| FS-BG-540 | 5.4 | 28 | 66 | 6 |
| FS-BG-550 | 5.5 | 28 | 66 | 6 |
| FS-BG-560 | 5.6 | 28 | 66 | 6 |
| FS-BG-570 | 5.7 | 28 | 66 | 6 |
| FS-BG-580 | 5.8 | 28 | 66 | 6 |
| FS-BG-590 | 5.9 | 28 | 66 | 6 |
| FS-BG-600 | 6 | 28 | 66 | 6 |
| FS-BG-610 | 6.1 | 34 | 79 | 8 |
| FS-BG-620 | 6.2 | 34 | 79 | 8 |
| FS-BG-630 | 6.3 | 34 | 79 | 8 |
| FS-BG-640 | 6.4 | 34 | 79 | 8 |
| FS-BG-650 | 6.5 | 34 | 79 | 8 |
| FS-BG-660 | 6.6 | 34 | 79 | 8 |
| FS-BG-670 | 6.7 | 34 | 79 | 8 |
| FS-BG-680 | 6.8 | 34 | 79 | 8 |
| FS-BG-690 | 6.9 | 34 | 79 | 8 |
| FS-BG-700 | 7 | 34 | 79 | 8 |
| FS-BG-710 | 7.1 | 41 | 79 | 8 |
| FS-BG-720 | 7.2 | 41 | 79 | 8 |
| FS-BG-730 | 7.3 | 41 | 79 | 8 |
| FS-BG-740 | 7.4 | 41 | 79 | 8 |
| FS-BG-750 | 7.5 | 41 | 79 | 8 |
| FS-BG-760 | 7.6 | 41 | 79 | 8 |
| FS-BG-770 | 7.7 | 41 | 79 | 8 |
| FS-BG-780 | 7.8 | 41 | 79 | 8 |
| FS-BG-790 | 7.9 | 41 | 79 | 8 |
| FS-BG-800 | 8 | 41 | 79 | 8 |
| FS-BG-810 | 8.1 | 47 | 89 | 10 |
| FS-BG-820 | 8.2 | 47 | 89 | 10 |
| FS-BG-830 | 8.3 | 47 | 89 | 10 |
| FS-BG-840 | 8.4 | 47 | 89 | 10 |
| FS-BG-850 | 8.5 | 47 | 89 | 10 |
| FS-BG-860 | 8.6 | 47 | 89 | 10 |
| FS-BG-870 | 8.7 | 47 | 89 | 10 |
| FS-BG-880 | 8.8 | 47 | 89 | 10 |
| FS-BG-890 | 8.9 | 47 | 89 | 10 |
| FS-BG-900 | 9 | 47 | 89 | 10 |
| FS-BG-910 | 9.1 | 47 | 89 | 10 |
| FS-BG-920 | 9.2 | 47 | 89 | 10 |
| FS-BG-930 | 9.3 | 47 | 89 | 10 |
| FS-BG-940 | 9.4 | 47 | 89 | 10 |
| FS-BG-950 | 9.5 | 47 | 89 | 10 |
| FS-BG-960 | 9.60 | 47.0 | 89 | 10 |
| FS-BG-970 | 9.70 | 47.0 | 89 | 10 |
| FS-BG-980 | 9.80 | 47.0 | 89 | 10 |
| FS-BG-990 | 9.90 | 47.0 | 89 | 10 |
| FS-BG-1000 | 10.00 | 47.0 | 89 | 10 |
| FS-BG-1010 | 10.1 | 55 | 102 | 12 |
| FS-BG-1020 | 10.2 | 55 | 102 | 12 |
| FS-BG-1030 | 10.3 | 55 | 102 | 12 |
| FS-BG-1040 | 10.4 | 55 | 102 | 12 |
| FS-BG-1050 | 10.5 | 55 | 102 | 12 |
| FS-BG-1060 | 10.6 | 55 | 102 | 12 |
| FS-BG-1070 | 10.7 | 55 | 102 | 12 |
| FS-BG-1080 | 10.8 | 55 | 102 | 12 |
| FS-BG-1090 | 10.9 | 55 | 102 | 12 |
| FS-BG-1100 | 11 | 55 | 102 | 12 |
| FS-BG-1110 | 11.1 | 55 | 102 | 12 |
| FS-BG-1120 | 11.2 | 55 | 102 | 12 |
| FS-BG-1130 | 11.3 | 55 | 102 | 12 |
| FS-BG-1140 | 11.4 | 55 | 102 | 12 |
| FS-BG-1150 | 11.5 | 55 | 102 | 12 |
| FS-BG-1160 | 11.6 | 55 | 102 | 12 |
| FS-BG-1170 | 11.7 | 55 | 102 | 12 |
| FS-BG-1180 | 11.8 | 55 | 102 | 12 |
| FS-BG-1190 | 11.9 | 55 | 102 | 12 |
| FS-BG-1200 | 12 | 55 | 102 | 12 |
| FS-BG-1210 | 12.1 | 60 | 107 | 14 |
| FS-BG-1220 | 12.2 | 60 | 107 | 14 |
| FS-BG-1230 | 12.3 | 60 | 107 | 14 |
| FS-BG-1240 | 12.4 | 60 | 107 | 14 |
| FS-BG-1250 | 12.5 | 60 | 107 | 14 |
| FS-BG-1260 | 12.6 | 60 | 107 | 14 |
| FS-BG-1270 | 12.7 | 60 | 107 | 14 |
| FS-BG-1280 | 12.8 | 60 | 107 | 14 |
| FS-BG-1290 | 12.9 | 60 | 107 | 14 |
| FS-BG-1300 | 13 | 60 | 107 | 14 |
| FS-BG-1310 | 13.1 | 60 | 107 | 14 |
| FS-BG-1320 | 13.2 | 60 | 107 | 14 |
| FS-BG-1330 | 13.3 | 60 | 107 | 14 |
| FS-BG-1340 | 13.4 | 60 | 107 | 14 |
| FS-BG-1350 | 13.5 | 60 | 107 | 14 |
| FS-BG-1360 | 13.6 | 60 | 107 | 14 |
| FS-BG-1370 | 13.7 | 60 | 107 | 14 |
| FS-BG-1380 | 13.8 | 60 | 107 | 14 |
| FS-BG-1390 | 13.9 | 60 | 107 | 14 |
| FS-BG-1400 | 14 | 60 | 107 | 14 |
| FS-BG-1410 | 14.1 | 65 | 115 | 16 |
| FS-BG-1420 | 14.2 | 65 | 115 | 16 |
| FS-BG-1430 | 14.3 | 65 | 115 | 16 |
| FS-BG-1440 | 14.4 | 65 | 115 | 16 |
| FS-BG-1450 | 14.5 | 65 | 115 | 16 |
| FS-BG-1460 | 14.6 | 65 | 115 | 16 |
| FS-BG-1470 | 14.7 | 65 | 115 | 16 |
| FS-BG-1480 | 14.8 | 65 | 115 | 16 |
| FS-BG-1490 | 14.9 | 65 | 115 | 16 |
| FS-BG-1500 | 15 | 65 | 115 | 16 |
| FS-BG-1510 | 15.1 | 65 | 115 | 16 |
| FS-BG-1520 | 15.2 | 65 | 115 | 16 |
| FS-BG-1530 | 15.3 | 65 | 115 | 16 |
| FS-BG-1540 | 15.4 | 65 | 115 | 16 |
| FS-BG-1550 | 15.5 | 65 | 115 | 16 |
| FS-BG-1560 | 15.6 | 65 | 115 | 16 |
| FS-BG-1570 | 15.7 | 65 | 115 | 16 |
| FS-BG-1580 | 15.8 | 65 | 115 | 16 |
| FS-BG-1590 | 15.9 | 65 | 115 | 16 |
| FS-BG-1600 | 16 | 65 | 115 | 16 |
| Order NO. | Diameter D1 | Channel Length L2 | Full Length L1 | Shank Diameter D |
| FS-BG-1680 | 16.80 | 73.0 | 123 | 18 |
| FS-BG-1700 | 17.00 | 73.0 | 123 | 18 |
| FS-BG-1750 | 17.50 | 73.0 | 123 | 18 |
| FS-BG-1800 | 18.00 | 73.0 | 123 | 18 |
| FS-BG-1900 | 19 | 79 | 131 | 20 |
| FS-BG-1950 | 19.5 | 79 | 131 | 20 |
| FS-BG-1980 | 19.8 | 79 | 131 | 20 |
| FS-BG-2000 | 20 | 79 | 131 | 20 |
| FS-BG-2050 | 20.5 | 79 | 131 | 22 |
| FS-BG-2100 | 21 | 79 | 131 | 22 |
| FS-BG-2150 | 21.5 | 79 | 131 | 22 |
| FS-BG-2200 | 22 | 79 | 131 | 22 |
| FS-BG-2250 | 22.5 | 96 | 153 | 24 |
| FS-BG-2350 | 23.5 | 96 | 153 | 24 |
| FS-BG-2400 | 24 | 96 | 153 | 24 |
| FS-BG-2450 | 24.5 | 96 | 153 | 25 |
| FS-BG-2500 | 25 | 96 | 153 | 25 |
Product Uses
1. High-speed, high-feed solid drilling on CNC machining centers and Swiss-type lathes under strict DIN dimensional tolerances.
2. Continuous high-speed hole-making with optimized cutting edges to achieve low runout and superior surface roughness.
3. Excellent self-centering performance to eliminate wandering and ensure perfect hole straightness.
4. Widely utilized in CNC machining, automotive engineering, aerospace, mold manufacturing, heavy industries, and other sectors.
