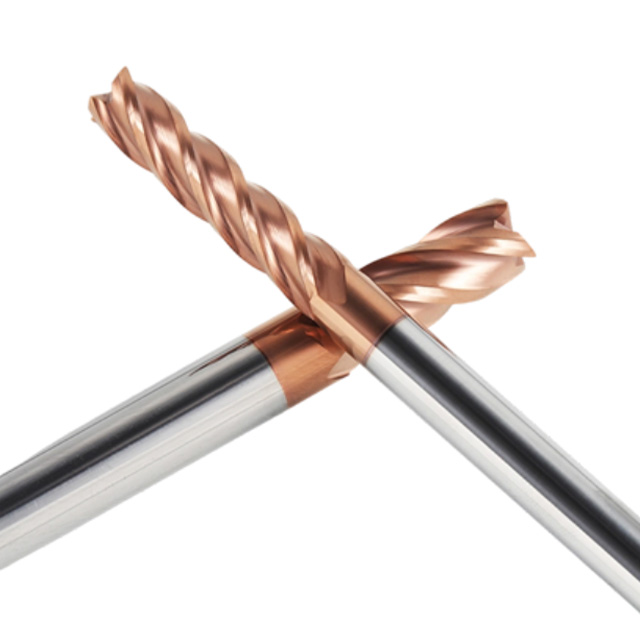

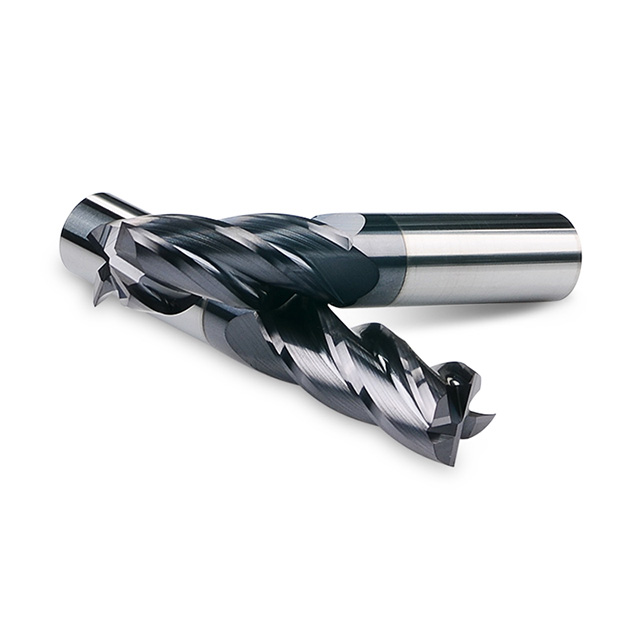

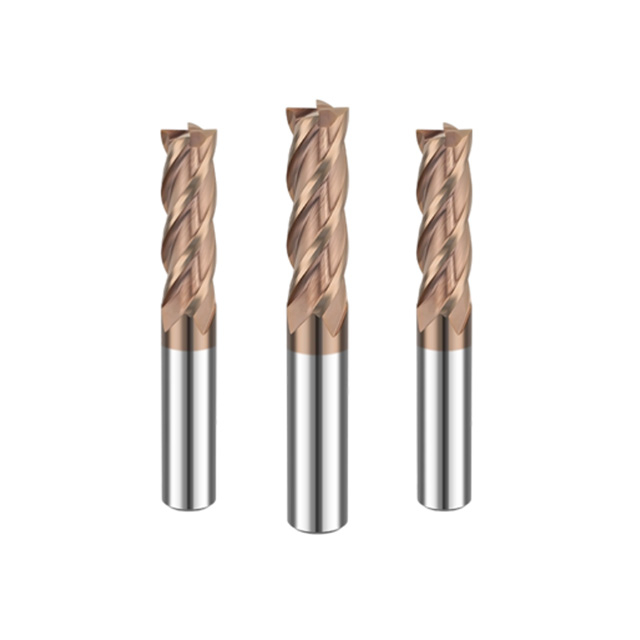

Flat End Mill

Flat End Mill

SKU:
Availability:



Inquire

Square end mill Carbide flat end mill

Product Description

Technical Parameters

Product Uses

Flat End Mill

P Series

Applicable materials: ≤HRC55, non-ferrous alloys, steel, pre-hardened steel, quenched and tempered steel, stainless steel, and other materials.

Characteristic: Achieves finishing from high metal removal rates to high precision and high surface quality.

Flat End Mill

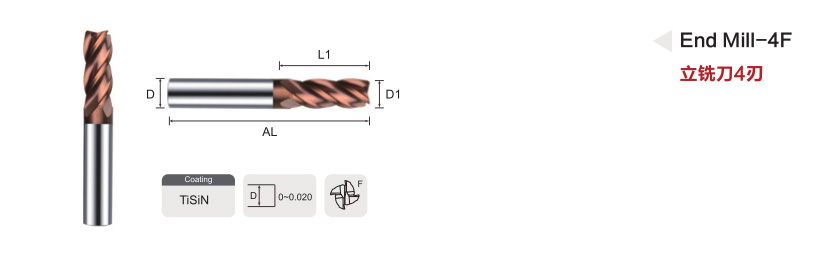

Technical Parameters

Order NO.	D1(刃径)	L1(刃长)	D(柄径)	AL(全长)	F(刃数)	R(角)
P-EM-1-50-4F	1	3	4	50	4	/
P-EM-1-75-4F	1	3	4	75	4	/
P-EM-1-100-4F	1	3	4	100	4	/
P-EM-1.5-50-4F	1.5	4	4	50	4	/
P-EM-1.5-75-4F	1.5	4	4	75	4	/
P-EM-1.5-100-4F	1.5	4	4	100	4	/
P-EM-2-50-4F	2	5	4	50	4	/
P-EM-2-75-4F	2	5	4	75	4	/
P-EM-2-100-4F	2	5	4	100	4	/
P-EM-2.5-50-4F	2.5	7	4	50	4	/
P-EM-3-50A-4F	3	8	3	50	4	/
P-EM-3-75A-4F	3	9	3	75	4	/
P-EM-3-100A-4F	3	12	3	100	4	/
P-EM-3-50B-4F	3	8	4	50	4	/
P-EM-3-75B-4F	3	9	4	75	4	/
P-EM-3-100B-4F	3	12	4	100	4	/
P-EM-3.5-50-4F	3.5	9	4	50	4	/
P-EM-4-50-4F	4	10	4	50	4	/
P-EM-4-75-4F	4	16	4	75	4	/
P-EM-4-100-4F	4	20	4	100	4	/
P-EM-4-150-4F	4	20	4	150	4	/
P-EM-5-50-4F	5	13	5	50	4	/
P-EM-5-75-4F	5	18	5	75	4	/
P-EM-5-100-4F	5	20	5	100	4	/
P-EM-5-150-4F	5	20	5	150	4	/
P-EM-6-50-4F	6	15	6	50	4	/

Order NO.	D1(刃径)	L1(刃长)	D(柄径)	AL(全长)	F(刃数)	R(R角)
P-EM-6-75-4F	6	24	6	75	4	/
P-EM-6-100-4F	6	30	6	100	4	/
P-EM-6-150-4F	6	45	6	150	4	/
P-EM-6-200-4F	6	45	6	200	4	/
P-EM-8-60-4F	8	20	8	60	4	/
P-EM-8-75-4F	8	25	8	75	4	/
P-EM-8-100-4F	8	35	8	100	4	/
P-EM-8-150-4F	8	50	8	150	4	/
P-EM-8-200-4F	8	50	8	200	4	/
P-EM-10-75-4F	10	25	10	75	4	/
P-EM-10-100-4F	10	40	10	100	4	/
P-EM-10-150-4F	10	55	10	150	4	/
P-EM-10-200-4F	10	55	10	200	4	/
P-EM-12-75-4F	12	30	12	75	4	/
P-EM-12-100-4F	12	45	12	100	4	/
P-EM-12-150-4F	12	55	12	150	4	/
P-EM-12-200-4F	12	55	12	200	4	/
P-EM-12-250-4F	12	55	12	250	4	/
P-EM-14-100-4F	14	45	14	100	4	/
P-EM-14-150-4F	14	60	14	150	4	/
P-EM-16-100-4F	16	45	16	100	4	/
P-EM-16-150-4F	16	70	16	150	4	/
P-EM-16-200-4F	16	70	16	200	4	/
P-EM-16-250-4F	16	70	16	250	4	/
P-EM-18-100-4F	18	45	18	100	4	/
P-EM-18-150-4F	18	70	18	150	4	/
P-EM-18-200-4F	18	70	18	200	4	/
P-EM-20-100-4F	20	45	20	100	4	/
P-EM-20-150-4F	20	70	20	150	4	/
P-EM-20-200-4F	20	70	20	200	4	/
P-EM-20-250-4F	20	70	20	250	4	/
P-EM-22-100-4F	22	45	22	100	4	/
P-EM-25-100-4F	25	45	25	100	4	/

Product Uses

1. High-efficiency face milling, slotting, and 90-degree square shoulder machining on CNC milling machines.

2. High-precision pocket plunging, side contouring, and bottom finishing for mold and die components.

3. Stable heavy-duty roughing and high-speed chip evacuation in materials like carbon steel, stainless steel, or aluminum.

4. Widely utilized in CNC machining, mold manufacturing, aerospace, automotive, 3D profiling, and other industries.
