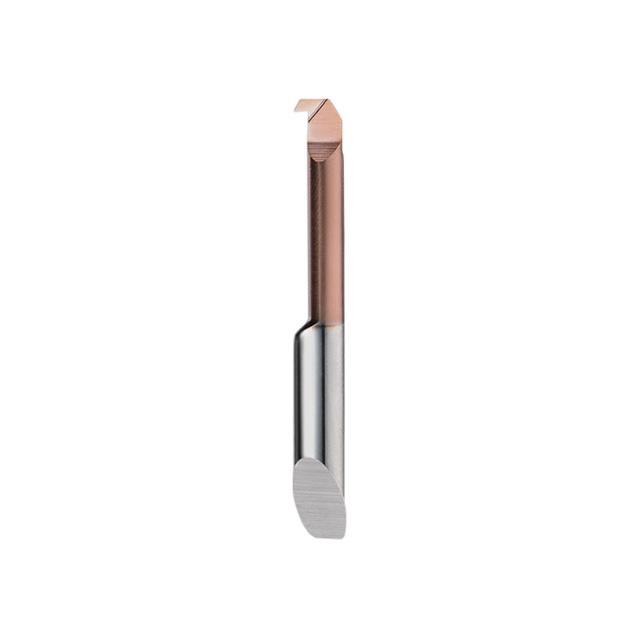

MBXR Quick Change Reverse Boring Cutter
Technical Parameters

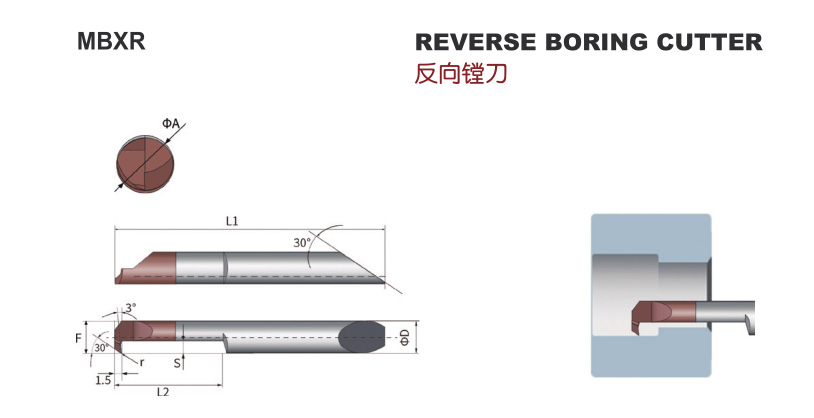

| Product Type | Min. Dia(mm)ΦA | ΦD | r | L1 | L2 | F | S |
| MBXR0441L16R010-D-(C) | 4.1 | 4 | 0.1 | 41 | 16 | 3.8 | 1 |
| MBXR0551L20R010-D-(C) | 5.1 | 5 | 0.1 | 45 | 20 | 4.8 | 1.3 |
| MBXR0661L25R010-D-(C) | 6.1 | 6 | 0.1 | 50 | 25 | 5.8 | 1.6 |
Product Uses
1.Designed for CNC Swiss-type lathes and turning centers requiring reverse boring in confined internal areas
2.The Reverse boring tool is constructed from micro-grain carbide, delivering stable cutting performance and wear resistance when machining stainless steel and titanium alloys in tight internal bores
3.The Reverse boring tool features precision edge honing that strengthens the cutting edge, effectively resisting chipping and micro-fractures during interrupted cutting, significantly extending insert service life in demanding applications.
