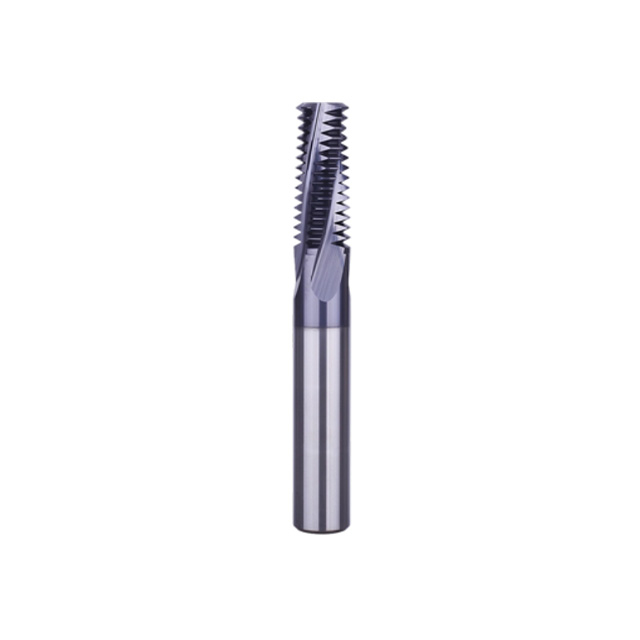

Full Teeth Metric Thread Milling Cutter

SKU:
Availability:



Inquire

Full Teeth Metric Thread Mill Multi point thread mill Metric thread mill Full form thread mill

Product Description

Technical Parameters

Product Uses

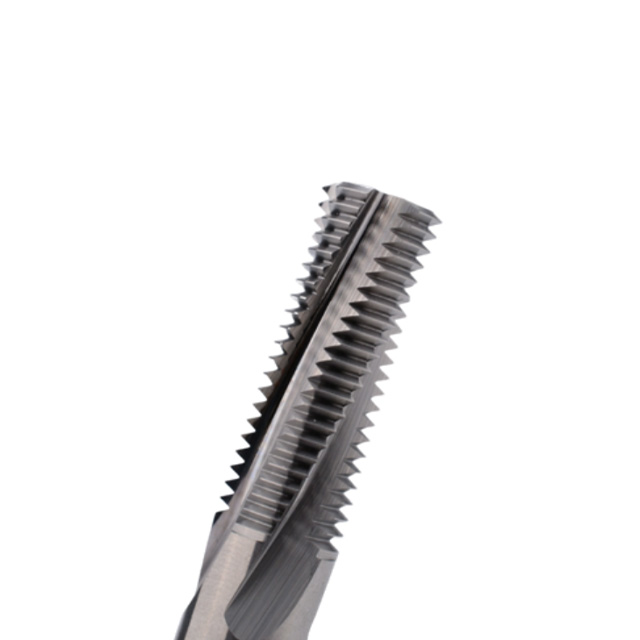

Full Teeth Metric Thread Milling Cutter

Coating Items

JS25 – Applicable materials: Universal use for ≤HRC60 material; Stainless (austenitic & martensite, 316L, 303, 304, 321, 316F, High Nickel Stainless...); Steel (Bearing steel, quenched steel, Cr–Mo steel, Mn steel...); Kovar alloy; Superalloy; Copper; Iron casting; Pig iron; Nickel alloy.

AT25 – Applicable materials: Stainless steels, Carbon Steel, Alloy steel, Bearing steel, Quenched steel, Cr–Mo steel, Mn steel, etc.

LC25 – Applicable materials: Special use for viscous material: Aluminium, PMMA, Polyethylene, CFRP.

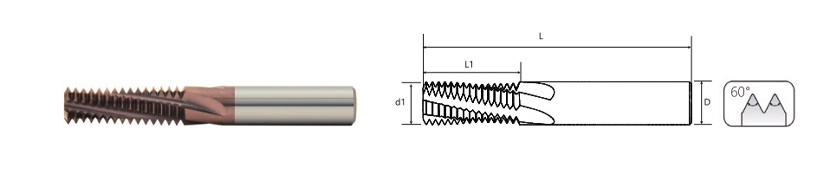

Technical Parameters

Order Code	PITCH	Thread Size	d1	L1	D	L	Flutes
P035.120.034.0450F	0.35	M1.6×0.35	1.2	3.4	4	50	3
P040.154.050.0450F	0.4	M2×0.4	1.54	5	4	50	3
P045.196.053.0450F	0.45	M2.5×0.45	1.96	5.3	4	50	3
P050.230.060.0450F	0.5	M3×P0.5	2.3	6	4	50	3
P050.400.100.0450F	0.5	M6×P0.5	4	10	4	50	3
P050.600.160.0650F	0.5	M8×M12×P0.5	6	16	6	50	3
P060.270.070.0450F	0.6	M3.5×P0.6	2.7	7	4	50	3
P070.300.080.0450F	0.7	M4×P0.7	3	8	4	50	3
P075.340.090.0450F	0.75	M4.5×P0.75	3.4	9	4	50	3
P075.480.120.0660F	0.75	M6×P0.75	4.8	12	6	60	3
P075.600.160.0660F	0.75	M8×P0.75	6	16	6	60	3
P075.800.200.0860F	0.75	M10×M12×P0.75	8	20	8	60	3
P080.400.100.0450F	0.8	M5×P0.8	4	10	4	50	3
P100.480.120.0660F	1	M6×P1	4.8	12	6	60	3
P100.600.160.0660F	1	M8×P1	6	16	6	60	3
P100.800.200.0860F	1	M10×P1	8	20	8	60	3
P100.1000.220.1075F	1	M12×M14×P1	10	22	10	75	4
P100.1200.220.1275F	1	M16×P1	12	22	12	75	4
P100.1600.300.1690F	1	M20×M48×P1	16	30	16	90	4
P125.600.160.0660F	1.25	M8×P1.25	6	16	6	60	3
P125.650.175.0860F	1.25	M8×P1.25	6.5	17.5	8	60	3
P125.800.200.0860F	1.25	M10×P1.25	8	20	8	60	3
P125.1000.250.1075F	1.25	M12×M14×P1.25	10	25	10	75	4
P150.800.200.0860F	1.5	M10×P1.5	8	20	8	60	3
P150.820.210.1075F	1.5	M10×P1.5	8.2	21	10	75	4
P150.1000.280.1075F	1.5	M12×M20×P1.5	10	28	10	75	4
P150.1200.280.1275F	1.5	M14×M24×P1.5	12	28	12	75	4
P150.1600.300.1690F	1.5	M20×M48×P1.5	16	30	16	90	4
P175.980.300.1075F	1.75	M12×P1.75	9.8	30	10	75	4
P200.1000.300.1075F	2	M14×P2.0	10	30	10	75	4
P200.1160.300.1275F	2	M14×P2.0	11.6	30	12	75	4
P200.1200.300.1275F	2	M16×P2.0	12	30	12	75	4
P200.1360.330.1410F	2	M16×P2.0	13.6	33	14	100	4
P200.1600.400.1610F	2	M20×M80×P2.0	16	40	16	100	4
P250.1400.360.1410F	2.5	M18×M20×P2.5	14	36	14	100	4
P250.1600.400.1610F	2.5	M20×M80×P2.5	16	40	16	100	4
P300.1600.420.1610F	3	M24×P3.0	16	42	16	100	4
