Bar Feeder Collets

SKU:
Availability:



Inquire

Bar Feeder Collets CNC Bar Feeder Collet Clamps

Product Description

Technical Parameters

Product Uses

Bar Feeder Collets

Technical Parameters

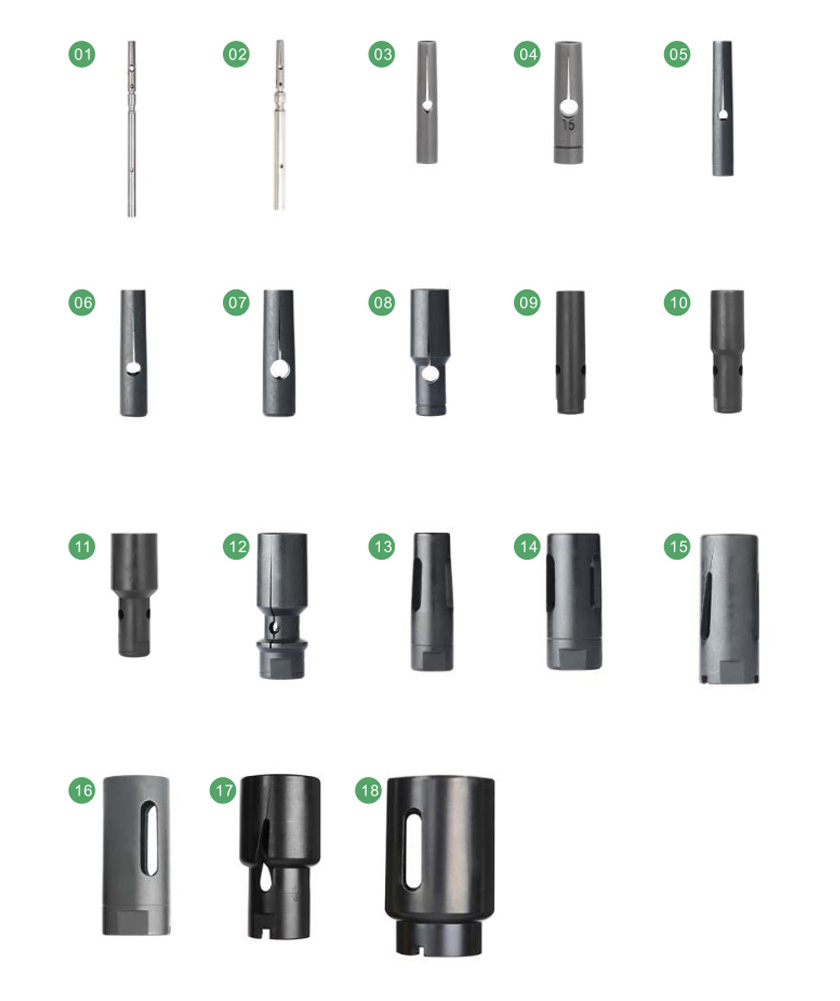

Product Code	Model	ID	OD	L	Tooth Gauge	Numbering
FL01	4#	0.8~4.0mm	5mm	98mm	M4P0.7	1
FL02	4-7#	0.8~4.0mm	7mm	98mm	M4P0.7	2
FL02	4-7#	4.1~6.0mm	7mm	98mm	M4P0.7	2
FL03	4#	2.0~5.5mm	7mm	98mm	M4P0.7	3
FL04	4-7#	0.8~4.0mm	5mm	28mm	M4P0.7	4
FL04	4-7#	1.5~6.0mm	7mm	28mm	M4P0.7	4
FL05	7#	1.3~6.0mm	7mm	50mm	M4P0.7	5
FL05	7#	1.3~6.5mm	8mm	50mm	M4P0.7	5
FL06	8.5#	6.6~7.0mm	9mm	50mm	M4P0.7	5
FL06	8.5#	1.5~7.8mm	9.5mm	45mm	M5P0.8	6
FL07	8.5#	7.9~8.5mm	10mm	45mm	M5P0.8	6
FL07	8.5#	3.0~10.5mm	12mm	45mm	M5P0.8	7
FL07	8.5#	10.8~11.0mm	13mm	45mm	M5P0.8	8
FL08	8.5#	11.5~12.0mm	14mm	45mm	M5P0.8	8
FL08	8.5#	12.5~13.0mm	15mm	45mm	M5P0.8	8
FL09	8.5#	13.5mm	15.5mm	45mm	M5P0.8	8
FL10	20#	2.5~13.0mm	15mm	60mm	M9P1.0	9
FL10	20#	11.5~15.1mm	18mm	60mm	M9P1.0	10
FL10	20#	15.2~16.0mm	19mm	60mm	M9P1.0	10
FL10	20#	16.5~18.0mm	20mm	60mm	M9P1.0	10
FL10	20#	18.5~19.0mm	22mm	60mm	M9P1.0	11
FL11	20#	19.5~21.0mm	24mm	60mm	M9P1.0	11
FL11	20#	21.5~22.0mm	25mm	60mm	M9P1.0	11
FL11	XT326	18.0~19.5mm	22mm	60mm	M9P1.0	12
FL11	XT326	20.0~21.0mm	23mm	60mm	M9P1.0	12
FL12	XT326	21.5~23.0mm	26mm	60mm	M9P1.0	12
FL13	XT326	24.0~26.0mm	28mm	60mm	M9P1.0	12
FL14	SN20#	3.0~18.0mm	30mm	60mm	M10P1.0	13
FL15	SN25#	16.5~23.0mm	25mm	60mm	M10P1.0	14
FL16	SN27#	16.5~25.0mm	27mm	60mm	M10P1.0	14
FL17	SN32#	23.5~28.0mm	32mm	70mm	M17P1.0	15
FL18	SN35#	28.5~33.0mm	35mm	80mm	M25P1.5	16
FL19	SN37#	31.0~34.0mm	37mm	80mm	M25P1.5	17
FL20	SN38#	31.0~35.0mm	38mm	80mm	M25P1.5	17
FL21	SN42#	31.5~40.0mm	42mm	80mm	M25P1.5	17
FL22	SN45#	38.5~42.2mm	45mm	80mm	M25P1.5	17
FL23	SN51#	42.5~48.0mm	51mm	80mm	M25P1.5	18
FL22	32#	4.0~30.0mm	32mm	80mm	M25P1.5	15
FL23	40#	21.0~36.5mm	40mm	80mm	M25P1.5	17

Product Uses

1. Highly stable bar stock gripping and automated feeding on CNC lathes paired with automatic bar feeders.

2. Seamless material transition and non-stop continuous feeding for high-speed Swiss-type precision machining.

3. Safe material retention to eliminate bar vibration and whip inside the guide channels during high-RPM spindle rotations.

4. Widely utilized in automated CNC machining, automotive components, high-volume fastener production, medical contract manufacturing, and other industries.
