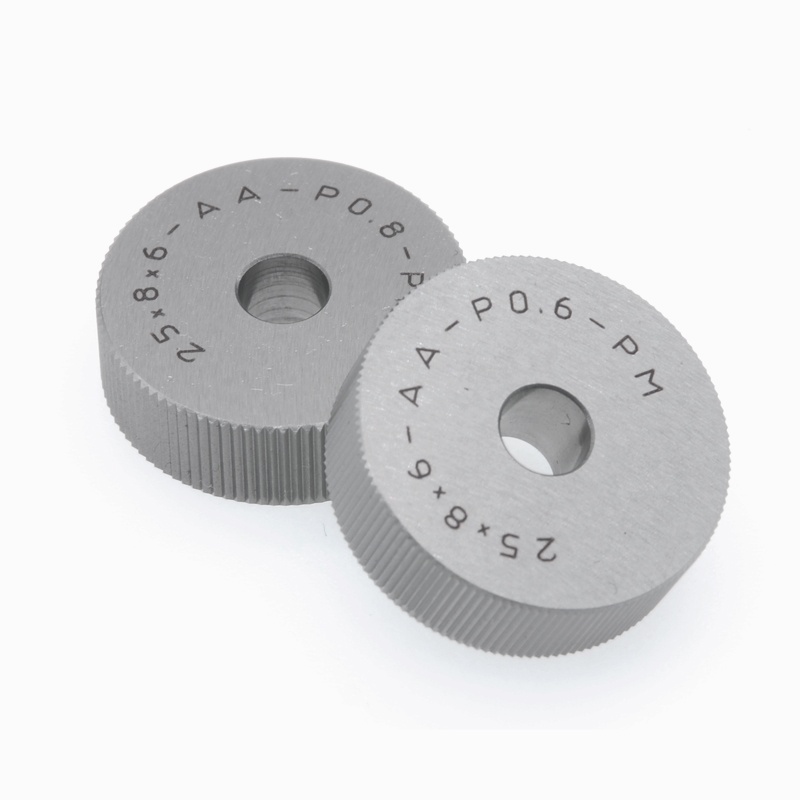

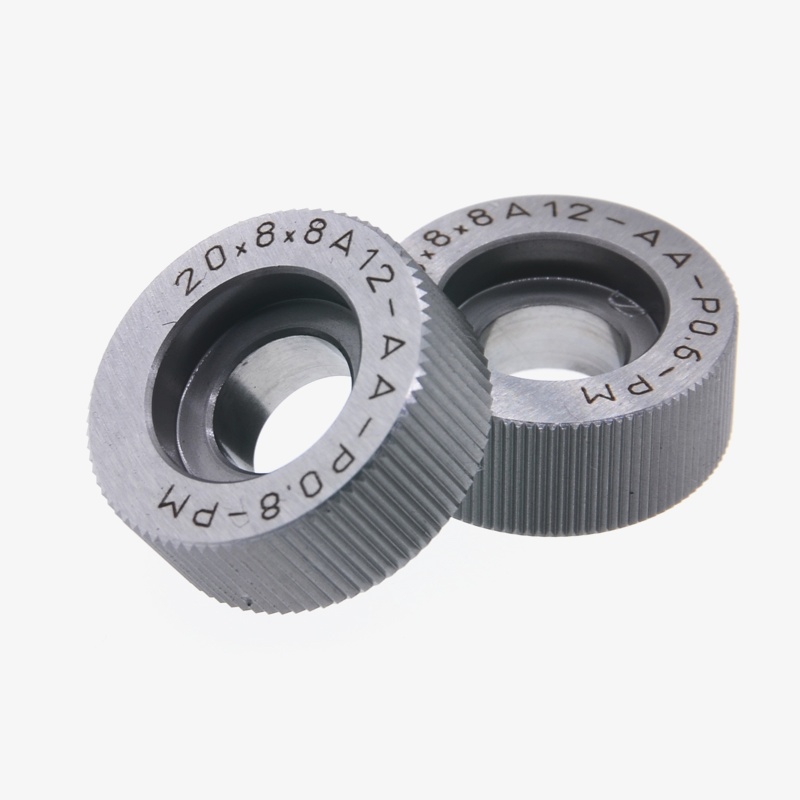

Straight Knurling Wheel

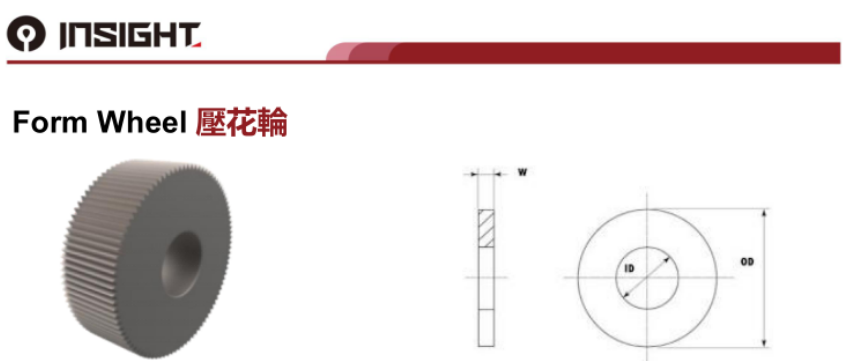

Technical Parameters
| Profile | Spiral Angle | OD | Width | ID | Pitch(mm) |
| AA | 0 | 10 | 4 | 4 | 0.3-1.5 |
| AA | 0 | 15 | 4 | 4 | 0.3-1.5 |
| AA | 0 | 15 | 6 | 4 | 0.3-1.5 |
| AA | 0 | 20 | 6 | 6 | 0.4-1.6 |
| AA | 0 | 20 | 8 | 6 | 0.3-2.0 |
| AA | 0 | 20 | 10 | 6 | 0.5-2.0 |
| AA | 0 | 25 | 8 | 6 | 0.6-1.5 |
| Profile | Spiral Angle | OD | Width | ID | Pitch(mm) |
| AA | 0 | 8.9 | 2.4 | 4 | 0.3-1.0 |
| AA | 0 | 10 | 3 | 6 | 0.5-1.2 |
| AA | 0 | 14.5 | 3 | 5 | 0.5-1.2 |
| AA | 0 | 15 | 4 | 8 | 0.5-1.2 |
| AA | 0 | 21.5 | 5 | 8 | 0.6-2.0 |
| AA | 0 | 25 | 6 | 8 | 0.5-2.0 |
Product Uses
1.High-efficiency longitudinal straight line texturing on cylindrical parts using manual or CNC lathes
2.Surface multi-grooving on insert metal pins or studs to ensure superior pull-out resistance in press-fit assemblies
3.Widely utilized in hardware fastening, precision electronics, office equipment, electrical switches, plastic molding inserts, and other industries.
