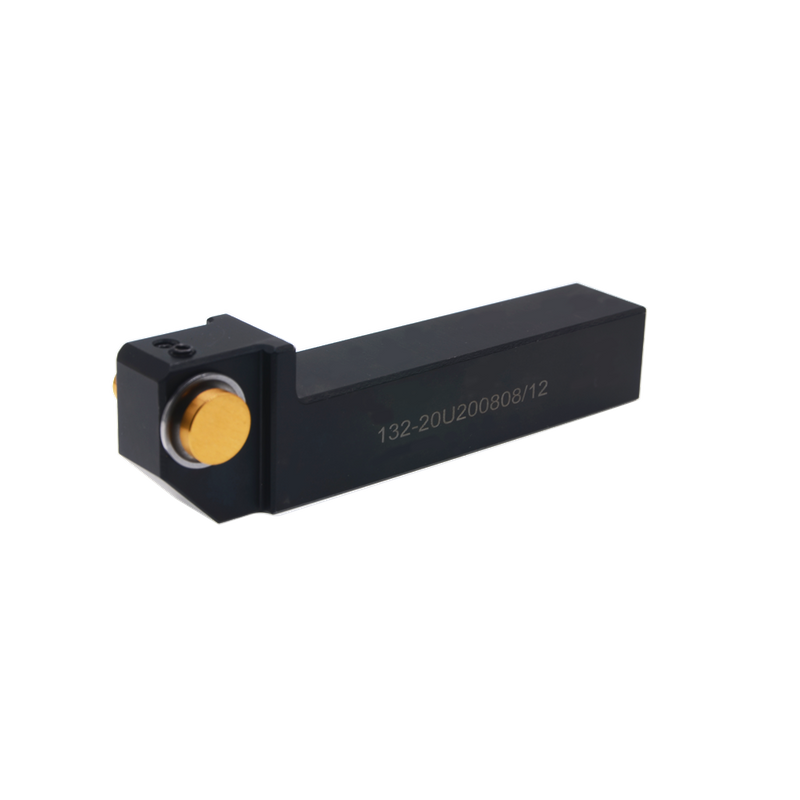

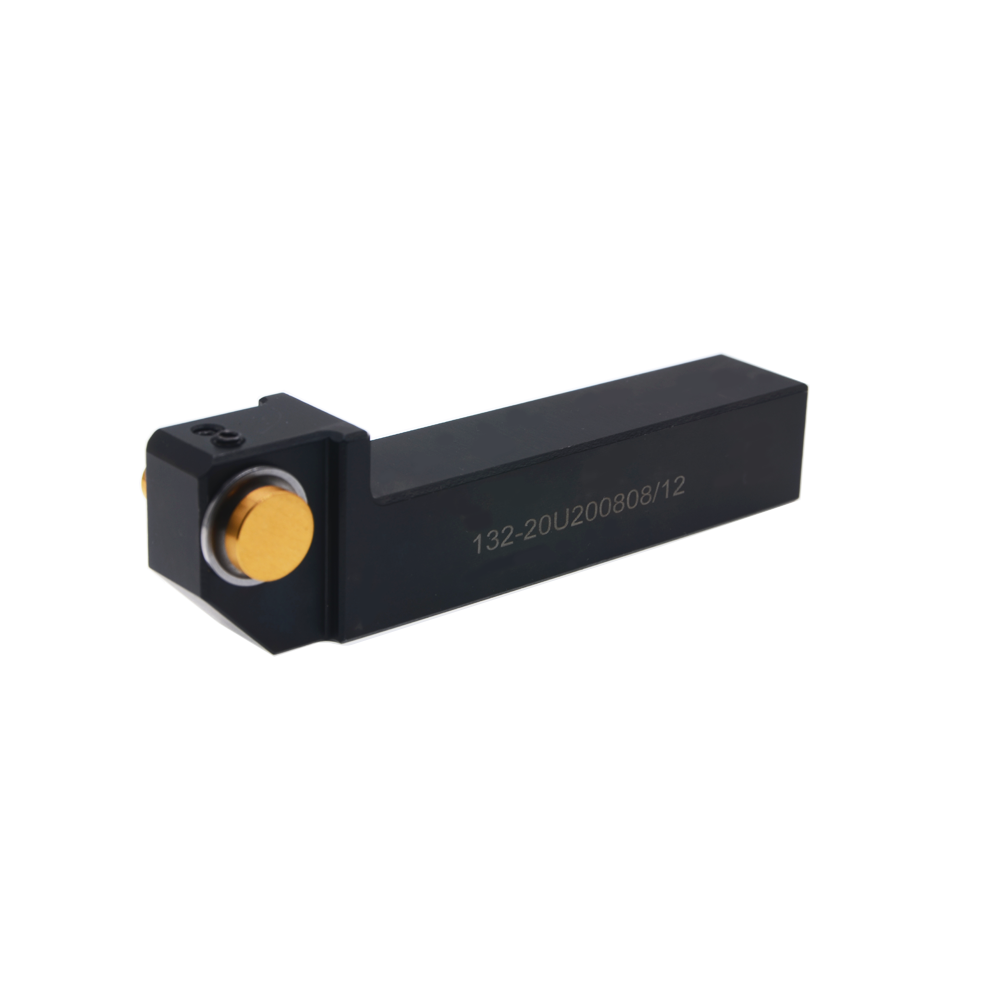

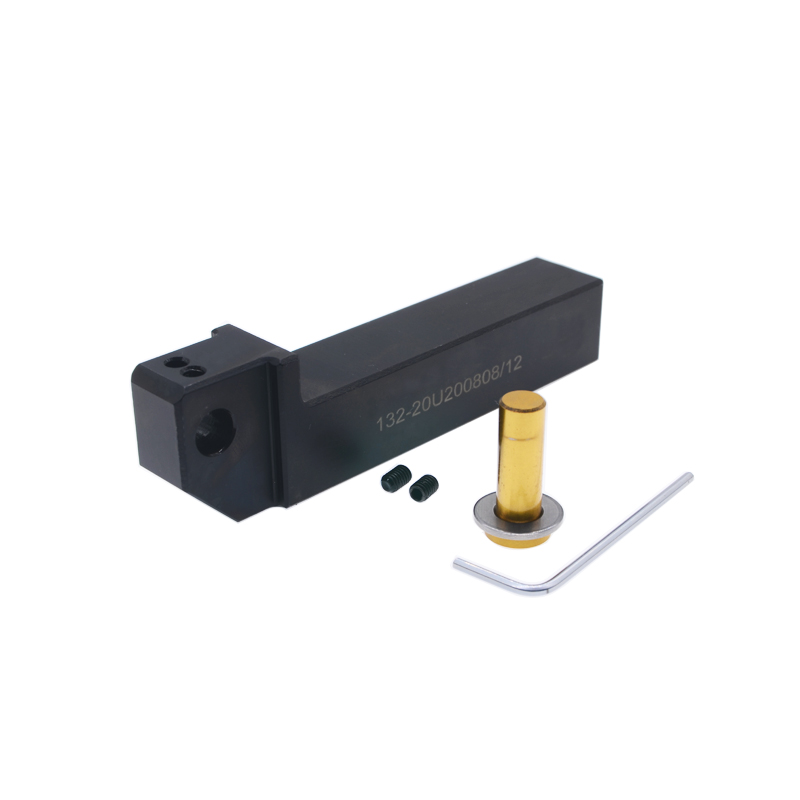

Single-wheel Knurling Tool Holder
Technical Parameters

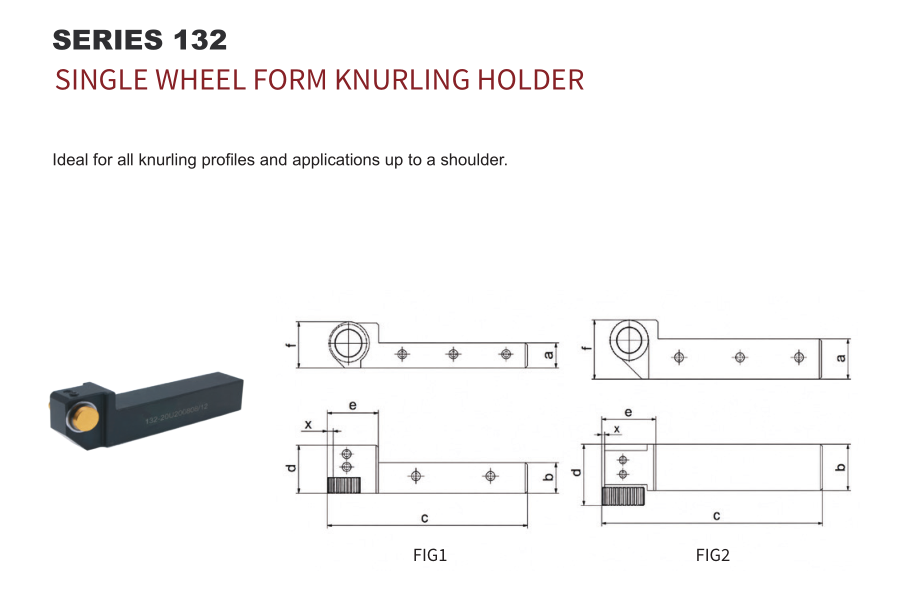

| 訂購代碼 Item No | 類型 MODEL | Dimensions [mm] | Knurling Wheel (∅*w*b)[mm] | Workpiece ∅ [mm] | Fig | ||||||||||||
| a | b | c | d | e | f | x | |||||||||||
| INS-132126611R/L | 132-12 | 12 | 12 | 100 | 19 | 21 | 20 | 1.5 | 15x6x6 A11 | 3 – 50 | 1 | ||||||
| INS-132166611R/L | 132-16 | 16 | 16 | 105 | 19 | 21 | 24 | 1.5 | 15x6x6 A11 | 3 – 50 | 1 | ||||||
| INS-132208812R/L | 132-20 | 20 | 20 | 110 | 26.5 | 25.3 | 30 | 1.3 | 20x8x8 A12 | 8 – 110 | 2 | ||||||
| INS-132258812R/L | 132-25 | 25 | 20 | 110 | 26.5 | 25.3 | 35 | 1.3 | 20x8x8 A12 | 8 – 110 | 2 | ||||||
Product Uses
1.High-precision straight or diagonal pattern texturing on short and rigid workpieces using manual or CNC lathes
2.Fast tool setup and straightforward single-wheel operation for small-batch prototyping or repair tasks
3.Widely utilized in metal hardware, maintenance shops, custom fasteners, small component manufacturing, and other industries.
