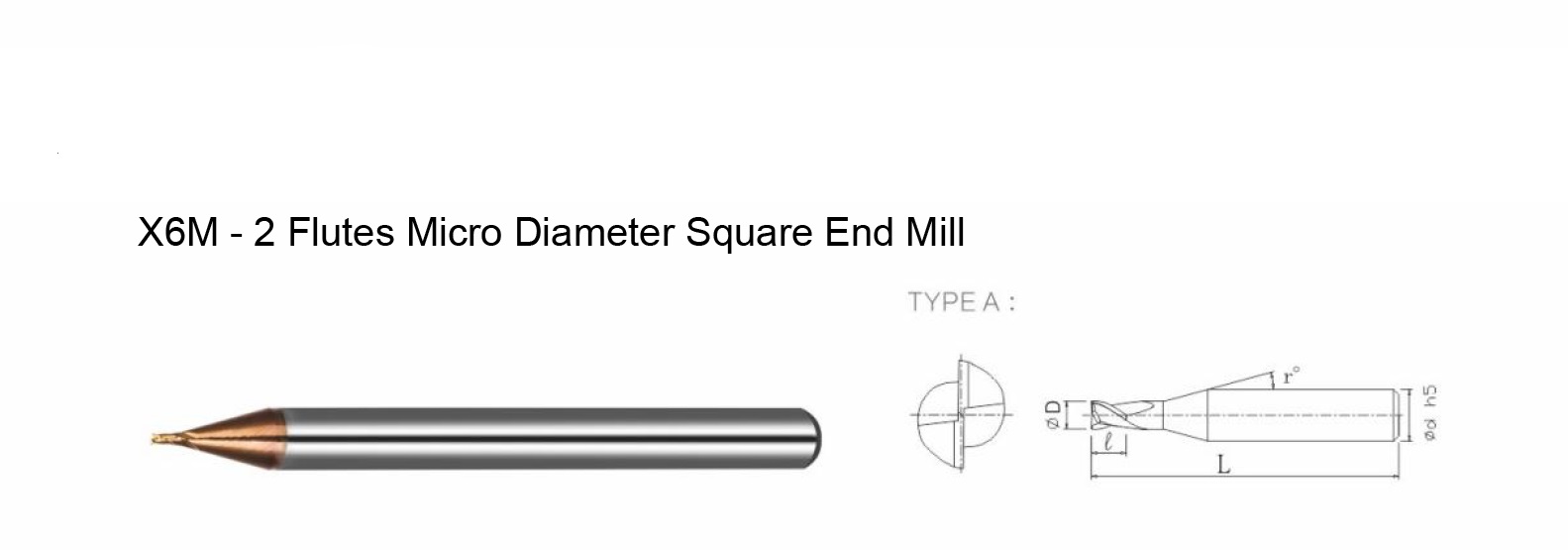

Model No.	Specification	Cutting Dia	Cutting Length	Shank Dia	Full Length	Neck Taper	Shape
X6MSE0012	0.1*0.15L	0.1	0.15	4	45	15°	A
X6MSE00152	0.15*0.2L	0.15	0.2	4	45	15°	A
X6MSE0022	0.2*0.4L	0.2	0.4	4	45	15°	A
X6MSE00252	0.25*0.5L	0.25	0.5	4	45	15°	A
X6MSE0032	0.3*0.6L	0.3	0.6	4	45	15°	A
X6MSE00352	0.35*0.7L	0.35	0.7	4	45	15°	A
X6MSE0042	0.4*0.8L	0.4	0.8	4	45	15°	A
X6MSE00452	0.45*0.9L	0.45	0.9	4	45	15°	A
X6MSE0052	0.5*1L	0.5	1	4	45	15°	A
X6MSE0062	0.6*1.2L	0.6	1	4	45	15°	A
X6MSE0072	0.7*1.4L	0.7	1.4	4	45	15°	A
X6MSE0082	0.8*1.6L	0.8	1.6	4	45	15°	A
