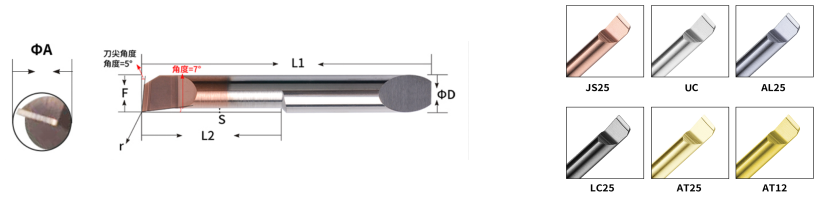

| Mode code | Min.Dia (mm) | Specification(mm) |
| MBPR0421L06R005-Y | 2.1 | D=4 r=0.05 F=1.85 S=0.2 L1=31 L2=6 |
| MBPR0421L06R010-Y | 2.1 | D=4 r=0.1 F=1.85 S=0.2 L1=31 L2=6 |
| MBPR0421L10R005-Y | 2.1 | D=4 r=0.05 F=1.85 S=0.2 L1=35 L2=10 |
| MBPR0421L10R010-Y | 2.1 | D=4 r=0.1 F=1.85 S=0.2 L1=35 L2=10 |
| MBPR0426L08R005-Y | 2.6 | D=4 r=0.05 F=2.35 S=0.25 L1=33 L2=8 |
| MBPR0426L08R010-Y | 2.6 | D=4 r=0.1 F=2.35 S=0.25 L1=33 L2=8 |
| MBPR0426L08R015-Y | 2.6 | D=4 r=0.15 F=2.35 S=0.25 L1=33 L2=8 |
| MBPR0426L12R005-Y | 2.6 | D=4 r=0.05 F=2.35 S=0.25 L1=37 L2=12 |
| MBPR0426L12R010-Y | 2.6 | D=4 r=0.1 F=2.35 S=0.25 L1=37 L2=12 |
| MBPR0426L12R010-Y | 2.6 | D=4 r=0.15 F=2.35 S=0.25 L1=37 L2=12 |
| MBPR0431L10R005-Y | 4.1 | D=4 r=0.05 F=2.8 S=0.3 L1=35 L2=10 |
| MBPR0431L10R010-Y | 4.1 | D=4 r=0.1 F=2.8 S=0.3 L1=35 L2=10 |
| MBPR0431L10R015-Y | 4.1 | D=4 r=0.15 F=2.8 S=0.3 L1=35 L2=10 |
| MBPR0431L15R005-Y | 4.1 | D=4 r=0.05 F=2.8 S=0.3 L1=40 L2=15 |
| MBPR0431L15R010-Y | 4.1 | D=4 r=0.1 F=2.8 S=0.3 L1=40 L2=15 |
| MBPR0431L15R015-Y | 4.1 | D=4 r=0.15 F=2.8 S=0.3 L1=40 L2=15 |
| MBPR0441L12R005-Y | 4.1 | D=4 r=0.05 F=3.8 S=0.4 L1=37 L2=12 |
| MBPR0441L12R010-Y | 4.1 | D=4 r=0.1 F=3.8 S=0.4 L1=37 L2=12 |
| MBPR0441L12R020-Y | 4.1 | D=4 r=0.2 F=3.8 S=0.4 L1=37 L2=12 |
| MBPR0441L16R005-Y | 4.1 | D=4 r=0.05 F=3.8 S=0.4 L1=41 L2=16 |
| MBPR0441L16R010-Y | 4.1 | D=4 r=0.1 F=3.8 S=0.4 L1=41 L2=16 |
| MBPR0441L16R020-Y | 4.1 | D=4 r=0.2 F=3.8 S=0.4 L1=41 L2=16 |
| MBPR0441L20R005-Y | 4.1 | D=4 r=0.05 F=3.8 S=0.4 L1=45 L2=20 |
| MBPR0441L20R010-Y | 4.1 | D=4 r=0.1 F=3.8 S=0.4 L1=45 L2=20 |
| MBPR0441L20R020-Y | 4.1 | D=4 r=0.2 F=3.8 S=0.4 L1=45 L2=20 |
| MBPR0551L15R010-Y | 5.1 | D=5 r=0.1 F=4.8 S=0.5 L1=40 L2=15 |
| MBPR0551L15R020-Y | 5.1 | D=5 r=0.2 F=4.8 S=0.5 L1=40 L2=15 |
| MBPR0551L20R010-Y | 5.1 | D=5 r=0.1 F=4.8 S=0.5 L1=45 L2=20 |
| MBPR0551L20R020-Y | 5.1 | D=5 r=0.2 F=4.8 S=0.5 L1=45 L2=20 |
| MBPR0551L25R010-Y | 5.1 | D=5 r=0.1 F=4.8 S=0.5 L1=50 L2=25 |
| MBPR0551L25R020-Y | 5.1 | D=5 r=0.2 F=4.8 S=0.5 L1=50 L2=25 |
| MBPR0661L15R010-Y | 6.1 | D=6 r=0.1 F=5.8 S=0.6 L1=40 L2=15 |
| MBPR0661L15R020-Y | 6.1 | D=6 r=0.2 F=5.8 S=0.6 L1=40 L2=15 |
| MBPR0661L20R020-Y | 6.1 | D=6 r=0.1 F=5.8 S=0.6 L1=45 L2=20 |
| MBPR0661L20R020-Y | 6.1 | D=6 r=0.2 F=5.8 S=0.6 L1=45 L2=20 |
| MBPR0661L25R010-Y | 6.1 | D=6 r=0.1 F=5.8 S=0.6 L1=50 L2=25 |
| MBPR0661L25R020-Y | 6.1 | D=6 r=0.2 F=5.8 S=0.6 L1=50 L2=25 |
| MBPR0661L30R010-Y | 6.1 | D=6 r=0.1 F=5.8 S=0.6 L1=55 L2=30 |
| MBPR0661L30R020-Y | 6.1 | D=6 r=0.2 F=5.8 S=0.6 L1=55 L2=30 |
| MBPR0771L25R010-Y | 7.1 | D=7 r=0.1 F=6.8 S=0.7 L1=54 L2=25 |
| MBPR0771L25R020-Y | 7.1 | D=7 r=0.2 F=6.8 S=0.7 L1=54 L2=25 |
| MBPR0771L35R010-Y | 7.1 | D=7 r=0.1 F=6.8 S=0.7 L1=64 L2=35 |
| MBPR0771L35R020-Y | 7.1 | D=7 r=0.2 F=6.8 S=0.7 L1=64 L2=35 |
