Three teeth threading milling
Single tooth
Model Number
ISO A60/A55 SINGLE TOOTH
Size
M0.8-M22 ISO Metric
Customization
Coating / material / threads requirment,contact : disir@insight-t.com
Quick Details
ISO-A60 : M0.8*0.2 M0.9*0.225 M1*0.25 M1.2*0.25 M1.4*0.3 M1.6*0.35 M2*0.4 M2.5*0.45 M3*0.5 M5*0.8 M4*0.7 M5*0.8 M6*1.0 M8*1.25 M10*1.5 M12*1.5 M12*1.75 M12*2.0 M16*2.0 M18*2.5 M22*3.0
ISO-A55 : d3.0*A55 d4.0*A55 d5.0*A55 d5.0*A55 d6.0*A55 d7.9*A55 d9.9*A55

Applicable Materia l: Carbon steel,Alloy steel,Quenched and tempeped steel,SUS,Mold steel,Titanium alloy,Other steel,Ductile iron and so on.
DESCRIPTION


∞ UC Applicable Materials:aluminum,non -ferrous metals.non -metallic.(uncoated tools).

∞ BC Applicable Materials:carbon steei,alloy steel,quenchedandtempered,steel,sus,mold steel,titanium alloy,other steel,ductile iron.

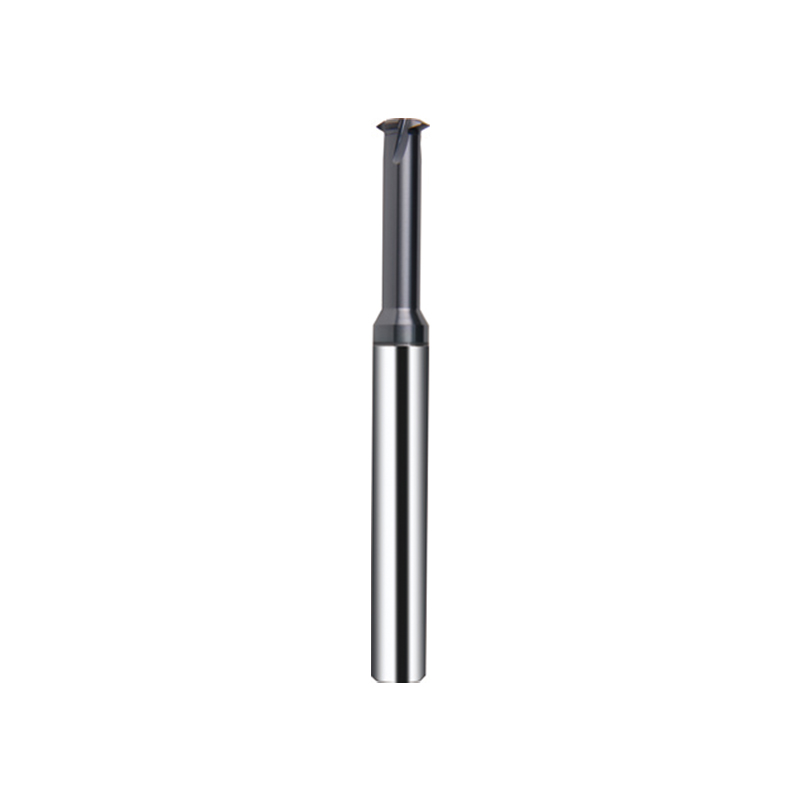

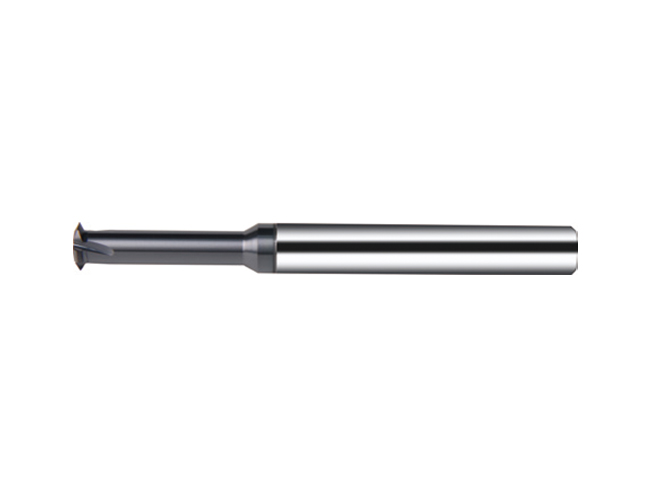

ISO A60 Thread mills Single tooth


ModelPITCHdL1DLFlutes
M0.8*0.20.2-0.2250.551.64503
M0.9*0.2250.225-0.30.60 1.8 4503
M1*0.250.25-0.350.73 2.3 4503
M1.2*0.250.25-0.350.92 2.8 4503
M1.4*0.30.3-0.41.05 3.2 4503
M1.6*0.350.35-0.41.20 4.0 4503
M2*0.40.4-0.51.54 4.4 4503
M2.5*0.450.45-0.51.9654503
M3*0.50.5-0.62.47.54503
M5*0.80.5-0.83124504
M4*0.70.5-0.83.15104503
M5*0.80.5-1.04124504
M5*0.80.5-1.04136503
M6*1.00.5-1.04.75166503
M8*1.250.5-1.255166504
M8*1.250.5-1.256206603
M10*1.50.8-1.57.9258604
M10*1.50.8-1.58208754
M12*1.51.25-2.09.42810754
M12*1.751.0-3.09.93010754
M12*2.01.25-2.0102810754
M16*2.02.0-5.0123012754
M16*2.01.0-5.0123012834
M18*2.51.0-5.01435141005
M22*3.02.0-5.0164016
1005


ISO A55 Thread mills Single tooth


Model
PITCHdL1DLFlutes
d3.0*A550.5-1.04.00 8.0 4503
d4.0*A550.5-1.04.00 10.0 6503
d5.0*A550.5-1.255.00 11.0 6503
d5.0*A550.5-1.255.00 16.0 6504
d6.0*A550.5-1.256.00 14.0 6503
d7.9*A551.0-2.07.90 21.0 8754
d9.9*A551.0-2.59.90 26.0 10755
