OEM/ODM

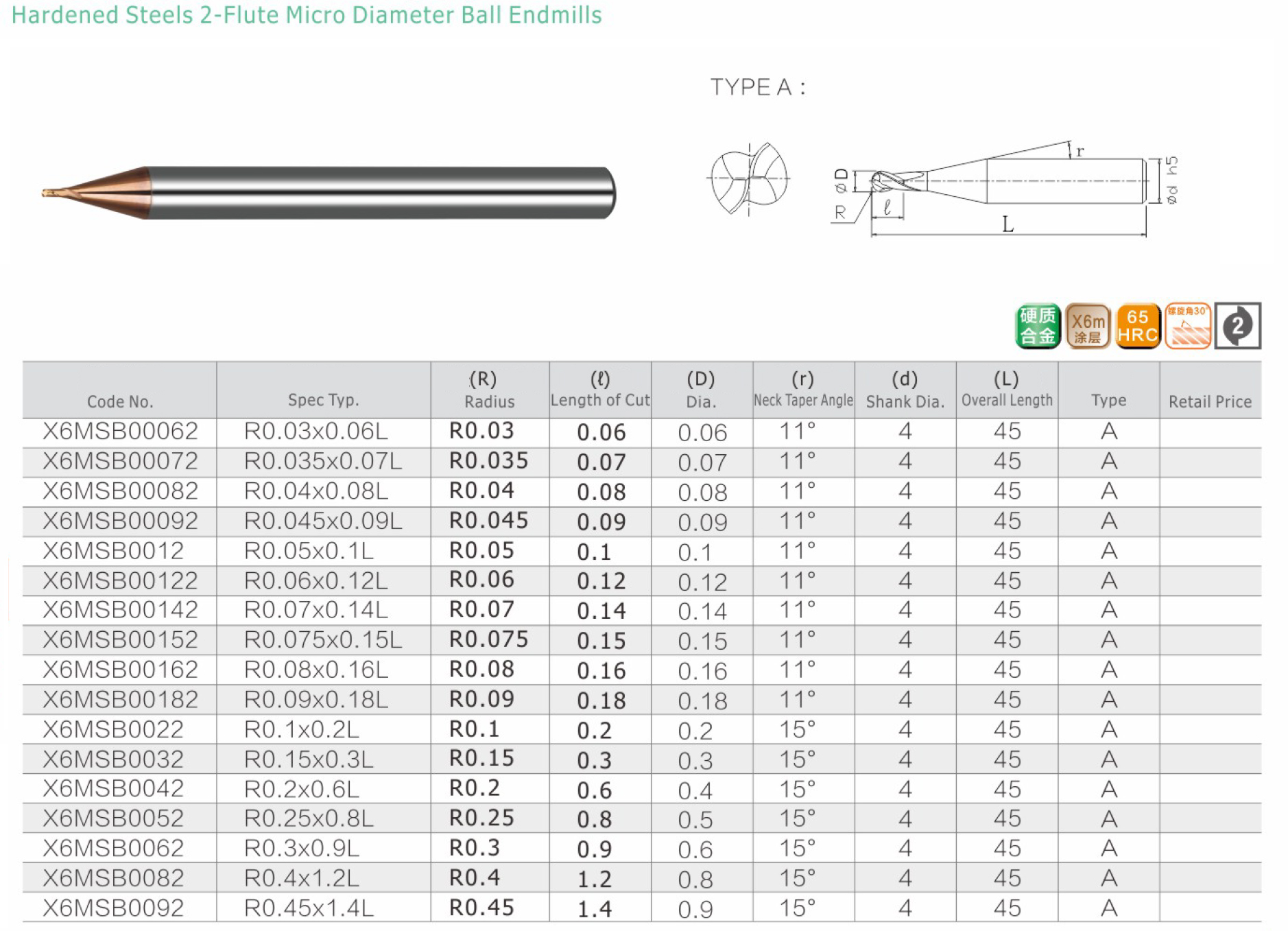

| Model No. | Specification | Radius | Cutting Length | Cutting Dia | Shank Dia | Full Length | Shape |
| X6MSB0032 | R0.15*0.3L | R0.15 | 0.3 | 0.3 | 4 | 45 | A |
| X6MSB0042 | R0.2*0.6L | R0.2 | 0.6 | 0.4 | 4 | 45 | A |
| X6MSB0052 | R0.25*0.8L | R0.25 | 0.8 | 0.5 | 4 | 45 | A |
| X6MSB0062 | R0.3*0.9L | R0.3 | 0.9 | 0.6 | 4 | 45 | A |
| X6MSB0082 | R0.4*1.2L | R0.4 | 1.2 | 0.8 | 4 | 45 | A |
For other models or OEM, please contact the supplier>> | |||||||
1. Imported tungsten steel, 0.4um microgranular tungsten steel raw material, solid tungsten steel body takes shape, higher wear resistance and strength.
2. Imported passivation equipment, increase the corrosion resistance and wear resistance of the tool, The blade has no burrs, extend tool life.
3. Prady coating equipment imported from Switzerland, 800° high temperature vacuum seal, Five nanocoatings.
4. Large core diameter design, Smooth chip removal, effectively enhance rigidity and shock resistance, anti-broken, increase efficiency.
| Product Name | 2-Flute Micro Diameter Ball End Mill |
| Tooy Type | Micro Diameter End Mill |
| Texture | Tungsten Carbide |
| HRC | 60° |
| Flute | 2 Flute |
| Coating | Nanocoating Technology |
| Helical Angle | 35° |
Applicable material：Cast iron, die steel, HRC≤60° material...
Applicable machine：CNC machining center, engraving machine, fine engraving machine...
