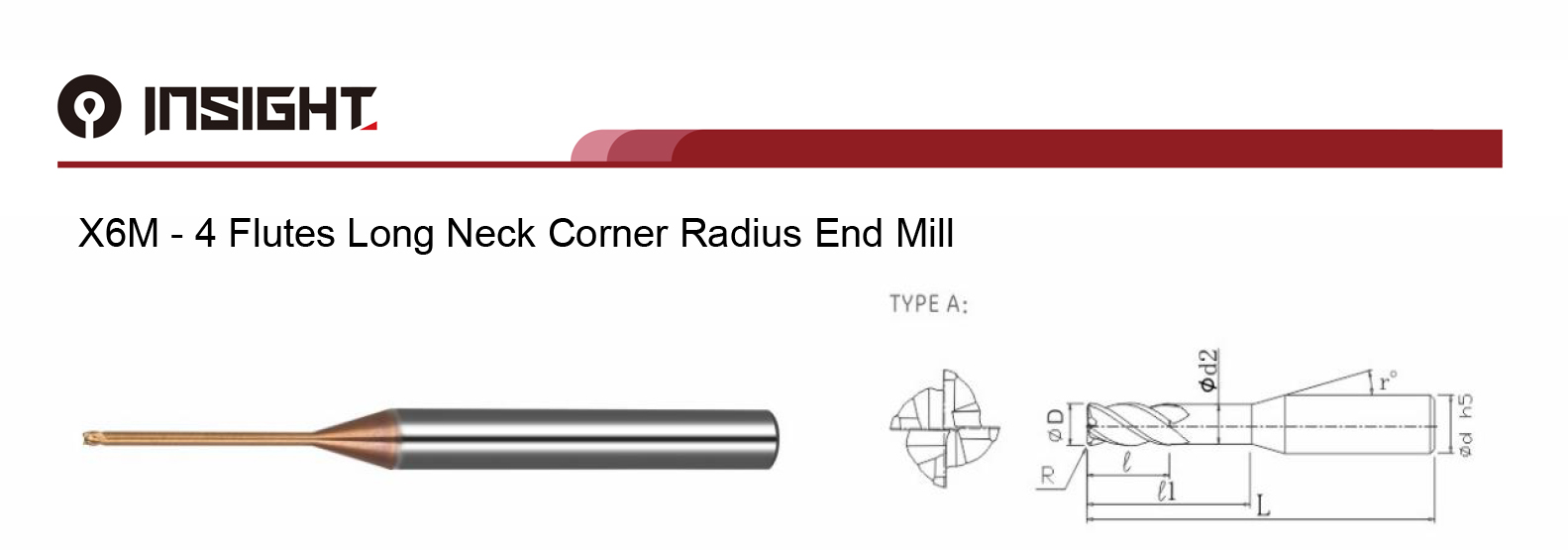

4 Flutes Long Neck Corner Radius End Mill

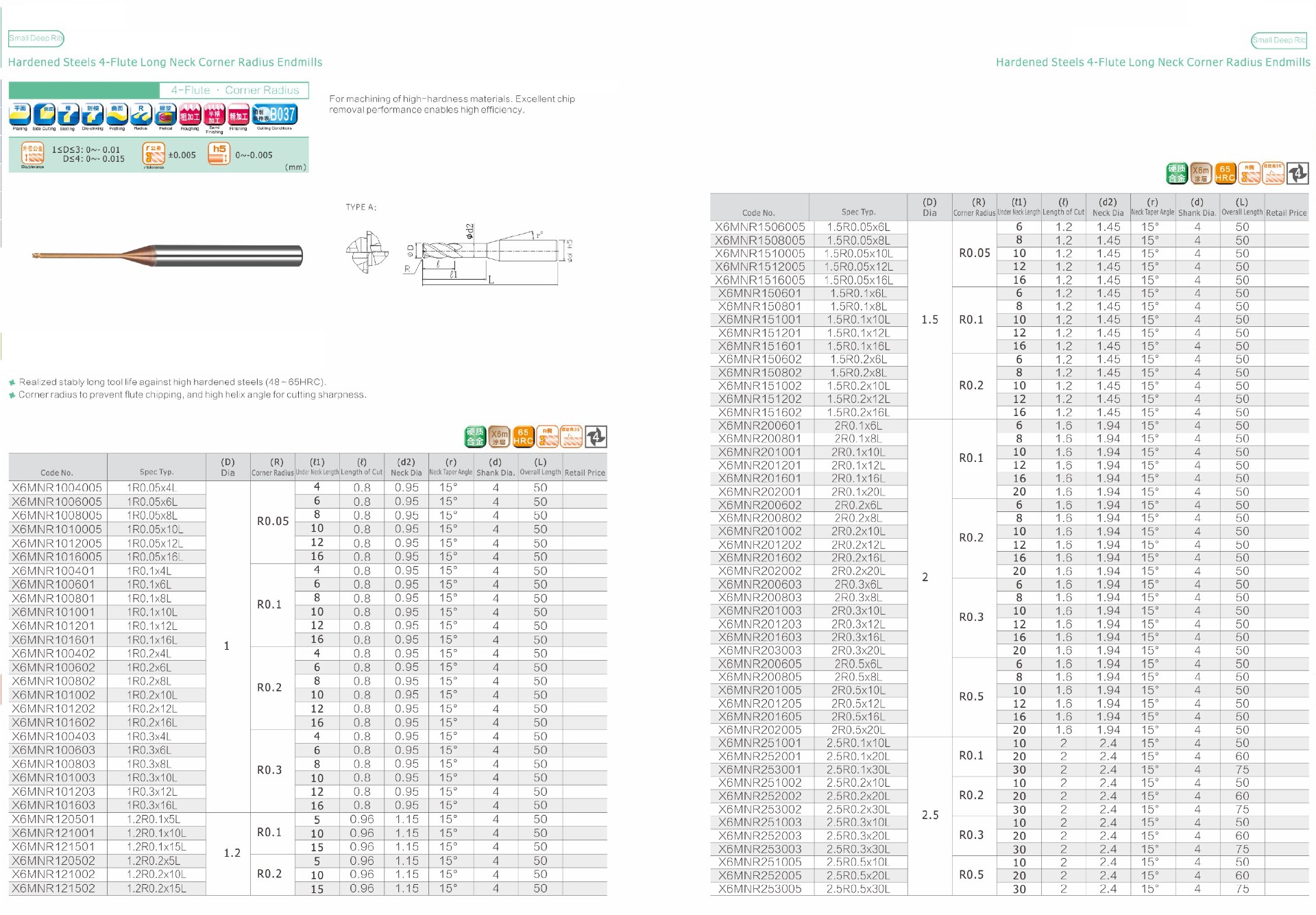

| Model No | Radius | Cutting Dia | Neck Length | Cutting Length | Neck Dia | Shank Dia | Full Length |
| X6MNR1004005 | 0.05 | 1 | 4 | 0.8 | 0.95 | 4 | 50 |
| X6MNR100401 | 0.1 | 1 | 4 | 0.8 | 0.95 | 4 | 50 |
| X6MNR100402 | 0.2 | 1 | 4 | 0.8 | 0.95 | 4 | 50 |
| X6MNR1006005 | 0.05 | 1 | 6 | 0.8 | 0.95 | 4 | 50 |
| X6MNR100601 | 0.1 | 1 | 6 | 0.8 | 0.95 | 4 | 50 |
| X6MNR100602 | 0.2 | 1 | 6 | 0.8 | 0.95 | 4 | 50 |
| X6MNR100801 | 0.1 | 1 | 8 | 0.8 | 0.95 | 4 | 50 |
| X6MNR100802 | 0.2 | 1 | 8 | 0.8 | 0.95 | 4 | 50 |
| X6MNR101001 | 0.1 | 1 | 10 | 0.8 | 0.95 | 4 | 50 |
| X6MNR101002 | 0.2 | 1 | 10 | 0.8 | 0.95 | 4 | 50 |
| X6MNR101202 | 0.2 | 1 | 12 | 0.8 | 0.95 | 4 | 50 |
| X6MNR1506005 | 0.05 | 1.5 | 6 | 1.2 | 1.45 | 4 | 50 |
| X6MNR150602 | 0.2 | 1.5 | 6 | 1.2 | 1.45 | 4 | 50 |
| X6MNR150802 | 0.2 | 1.5 | 8 | 1.2 | 1.45 | 4 | 50 |
| X6MNR151002 | 0.2 | 1.5 | 10 | 1.2 | 1.45 | 4 | 50 |
| X6MNR151202 | 0.2 | 1.5 | 12 | 1.2 | 1.45 | 4 | 50 |
| X6MNR200801 | 0.1 | 2 | 8 | 1.6 | 1.94 | 4 | 50 |
| X6MNR200802 | 0.2 | 2 | 8 | 1.6 | 1.94 | 4 | 50 |
| X6MNR200805 | 0.5 | 2 | 8 | 1.6 | 1.94 | 4 | 50 |
| X6MNR201001 | 0.1 | 2 | 10 | 1.6 | 1.94 | 4 | 50 |
| X6MNR201002 | 0.2 | 2 | 10 | 1.6 | 1.94 | 4 | 50 |
| X6MNR201005 | 0.5 | 2 | 10 | 1.6 | 1.94 | 4 | 50 |
| X6MNR201201 | 0.1 | 2 | 12 | 1.6 | 1.94 | 4 | 50 |
| X6MNR201202 | 0.2 | 2 | 12 | 1.6 | 1.94 | 4 | 50 |
| X6MNR201205 | 0.5 | 2 | 12 | 1.6 | 1.94 | 4 | 50 |
| X6MNR201602 | 0.2 | 2 | 16 | 1.6 | 1.94 | 4 | 50 |
| X6MNR201605 | 0.5 | 2 | 16 | 1.6 | 1.94 | 4 | 50 |
| X6MNR300802 | 0.2 | 3 | 8 | 2.4 | 2.85 | 4 | 50 |
| X6MNR300805 | 0.5 | 3 | 8 | 2.4 | 2.85 | 4 | 50 |
| X6MNR301002 | 0.2 | 3 | 10 | 2.4 | 2.85 | 4 | 50 |
| X6MNR301005 | 0.5 | 3 | 10 | 2.4 | 2.85 | 4 | 50 |
| X6MNR301202 | 0.2 | 3 | 12 | 2.4 | 2.85 | 4 | 50 |
| X6MNR301202L | 0.2 | 3 | 12 | 2.4 | 2.85 | 4 | 50 |
| X6MNR301205 | 0.5 | 3 | 12 | 2.4 | 2.85 | 4 | 50 |
| X6MNR301205L | 0.5 | 3 | 12 | 2.4 | 2.85 | 4 | 50 |
| X6MNR301602 | 0.2 | 3 | 16 | 2.4 | 2.85 | 4 | 50 |
| X6MNR301602L | 0.2 | 3 | 16 | 2.4 | 2.85 | 4 | 50 |
| X6MNR301605 | 0.5 | 3 | 16 | 2.4 | 2.85 | 4 | 50 |
| X6MNR301605L | 0.5 | 3 | 16 | 2.4 | 2.85 | 6 | 50 |
| X6MNR302002L | 0.2 | 3 | 20 | 2.4 | 2.85 | 6 | 50 |
| X6MNR302005L | 0.5 | 3 | 20 | 2.4 | 2.85 | 6 | 50 |
| X6MNR302502L | 0.2 | 3 | 25 | 2.4 | 2.85 | 6 | 75 |
| X6MNR302505L | 0.5 | 3 | 25 | 2.4 | 2.85 | 6 | 75 |
| X6MNR303002L | 0.2 | 3 | 30 | 2.4 | 2.85 | 6 | 75 |
| X6MNR303005L | 0.5 | 3 | 30 | 2.4 | 2.85 | 6 | 75 |
| X6MNR401202L | 0.2 | 4 | 12 | 3.2 | 3.8 | 6 | 60 |
| X6MNR401205L | 0.5 | 4 | 12 | 3.2 | 3.8 | 6 | 60 |
| X6MNR401205L | 0.2 | 4 | 16 | 3.2 | 3.8 | 6 | 60 |
| X6MNR401605L | 0.5 | 4 | 16 | 3.2 | 3.8 | 6 | 60 |
| X6MNR402002L | 0.2 | 4 | 20 | 3.2 | 3.8 | 6 | 60 |
| X6MNR402005L | 0.5 | 4 | 20 | 3.2 | 3.8 | 6 | 60 |
1. WF25 is used as the base material, 0.4nm particulate matter Tungsten steel raw material, Effectively ensure high wear resistance, service life.
2. Using the classic German coating technology, improved service life, high lubricity, Increase wear resistance and prolong service life.

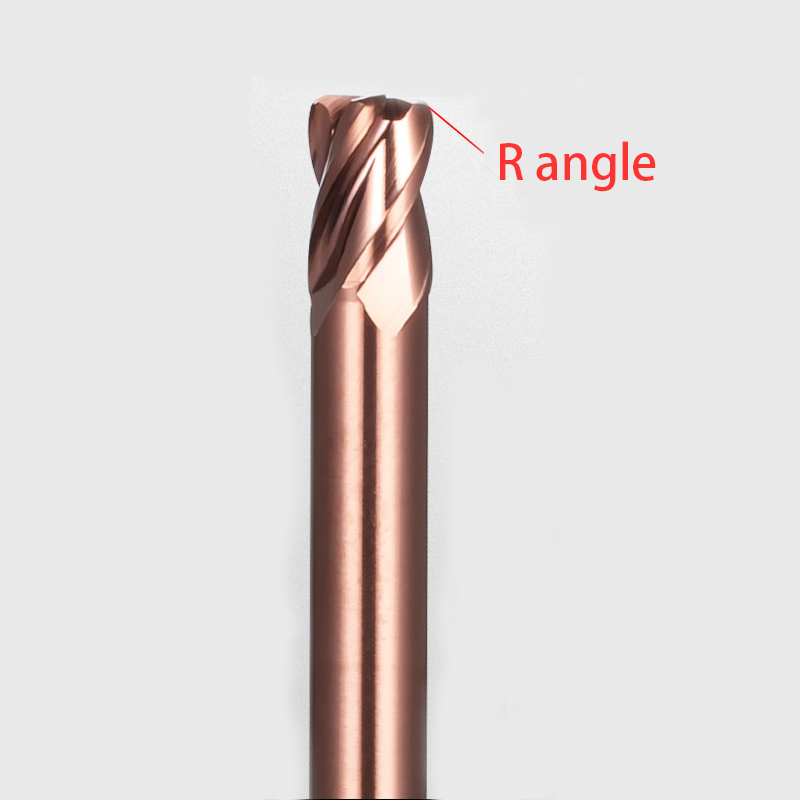

3. 35°spiral Angle design, use of tools to cut more sharp, the workpiece processing luster bright without burrs.
4. 60° tungsten steel coated milling cutter specifications complete, full stock, lightning delivery.
| Product Name | Long Neck Corner Radius End Mill |
| Flute | 4 Flute |
| Helix Angle | 35° |
| Materials | Tungsten Carbide |
| coating | Germanism Coating |
| Granularity | 0.4nm |
| HRC | 60° |
| Apply | Copper, stainless steel, alloy steel, tool steel, modulation steel, carbon steel. |
