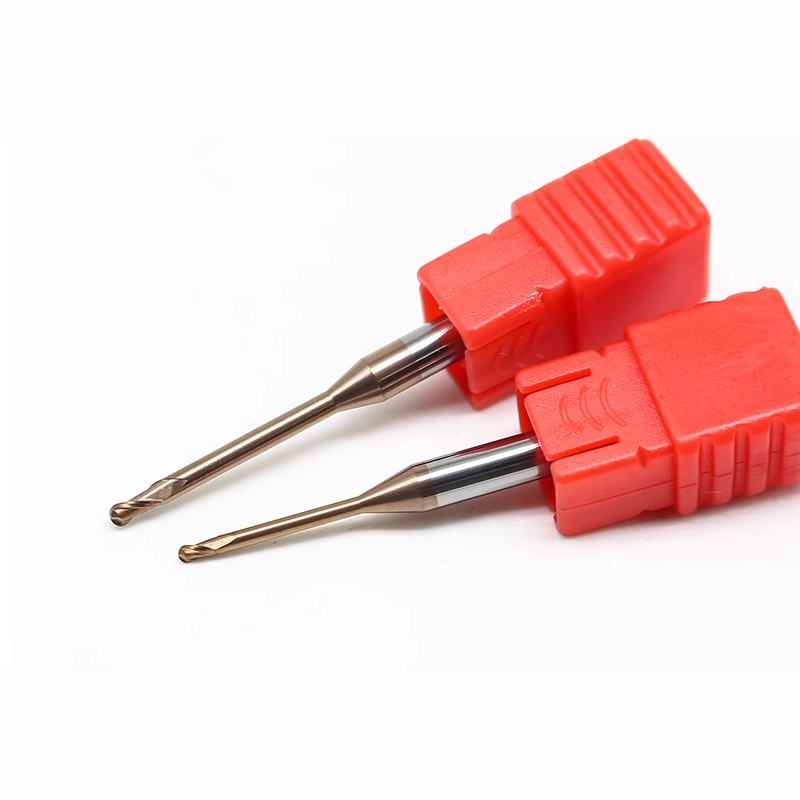

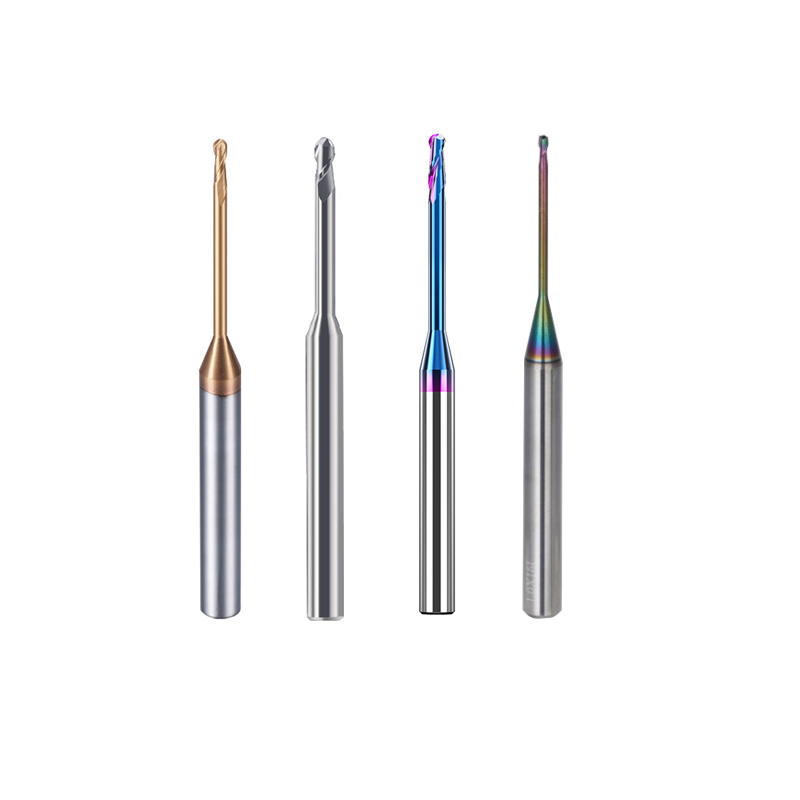

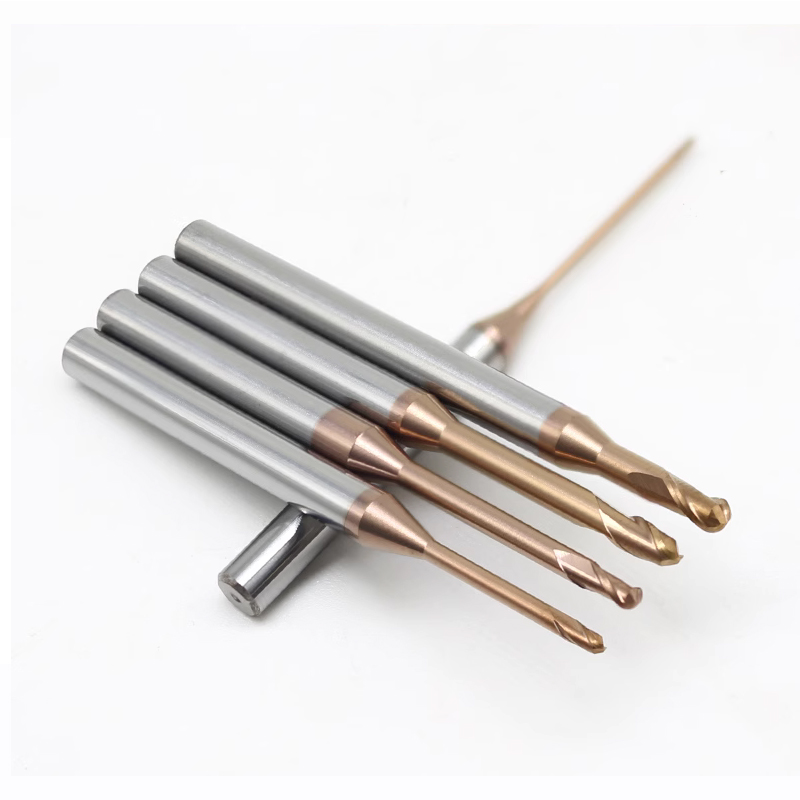

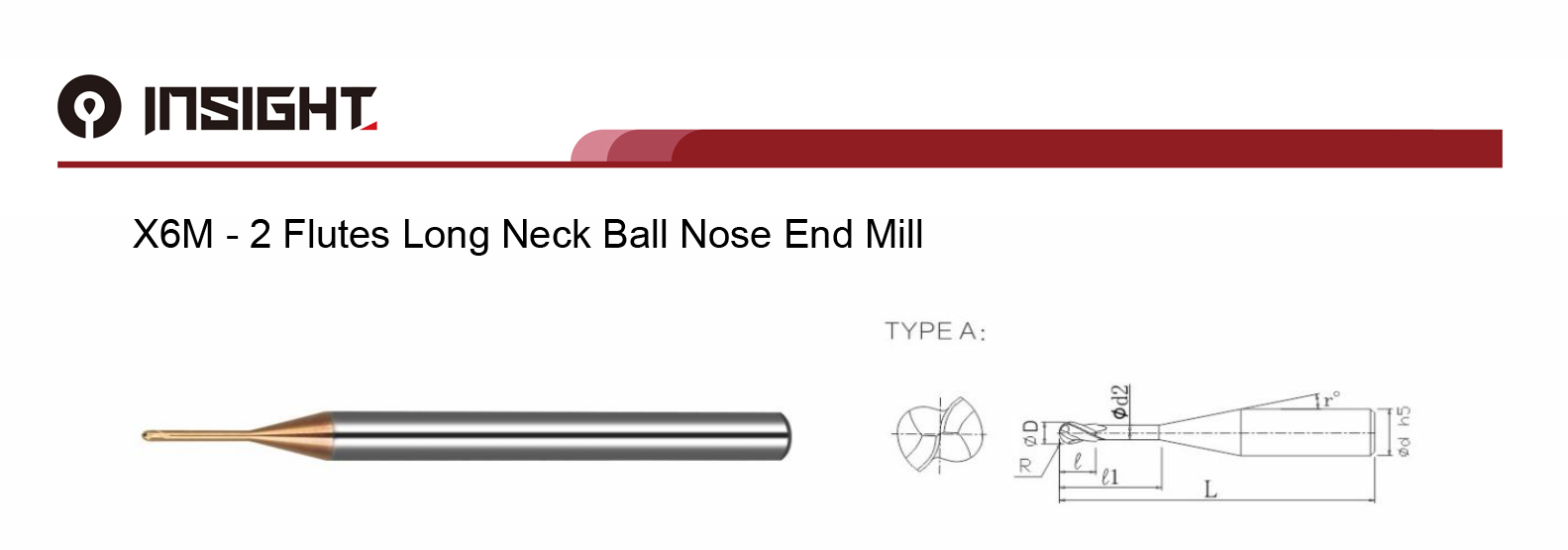

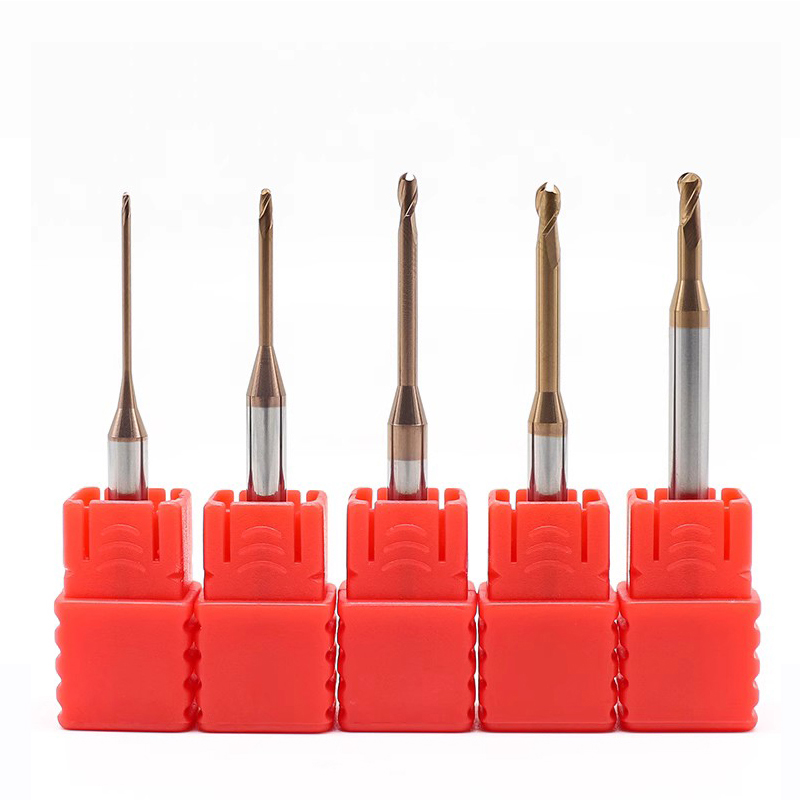

2 Flutes Long Neck Ball Nose End Mill

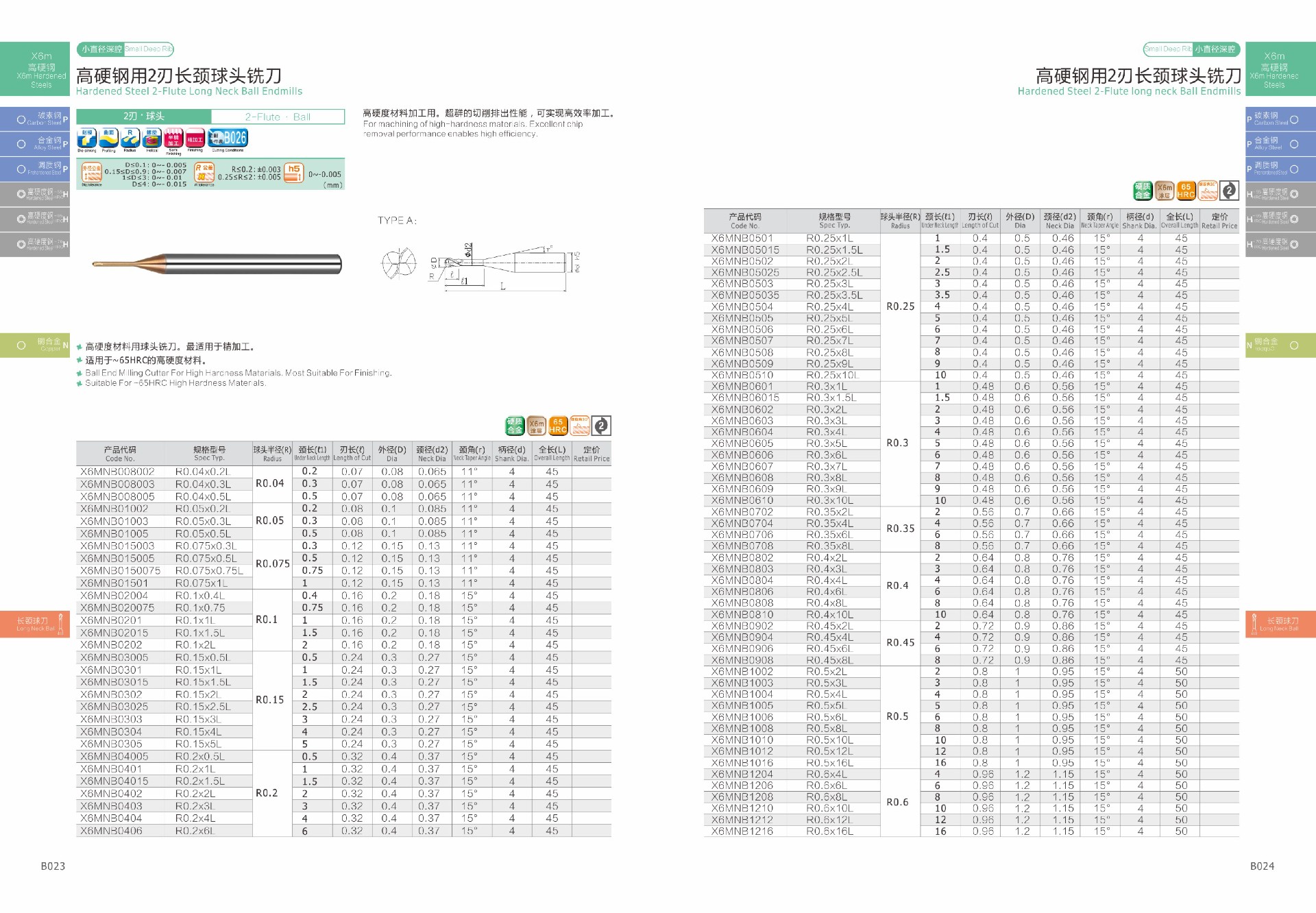

Model No. | Radius | Neck Length | Cutting Length | Cutting Dia | Neck Dia | Shank Dia | Full Length |
X6MNB0201 | 0.1 | 1 | 0.16 | 0.2 | 0.18 | 4 | 45 |
X6MNB02015 | 0.1 | 1.5 | 0.16 | 0.2 | 0.18 | 4 | 45 |
X6MNB0202 | 0.1 | 2 | 0.16 | 0.2 | 0.18 | 4 | 45 |
X6MNB0301 | 0.15 | 1 | 0.24 | 0.3 | 0.27 | 4 | 45 |
X6MNB03015 | 0.15 | 1.5 | 0.24 | 0.3 | 0.27 | 4 | 45 |
X6MNB0302 | 0.15 | 2 | 0.24 | 0.3 | 0.27 | 4 | 45 |
X6MNB0303 | 0.15 | 3 | 0.24 | 0.3 | 0.27 | 4 | 45 |
X6MNB0304 | 0.15 | 4 | 0.24 | 0.3 | 0.27 | 4 | 45 |
X6MNB0305 | 0.15 | 5 | 0.24 | 0.3 | 0.27 | 4 | 45 |
X6MNB0401 | 0.2 | 1 | 0.32 | 0.4 | 0.37 | 4 | 45 |
X6MNB04015 | 0.2 | 1.5 | 0.32 | 0.4 | 0.37 | 4 | 45 |
X6MNB0402 | 0.2 | 2 | 0.32 | 0.4 | 0.37 | 4 | 45 |
X6MNB0403 | 0.2 | 3 | 0.32 | 0.4 | 0.37 | 4 | 45 |
X6MNB0404 | 0.2 | 4 | 0.32 | 0.4 | 0.37 | 4 | 45 |
X6MNB0406 | 0.2 | 6 | 0.32 | 0.4 | 0.37 | 4 | 45 |
X6MNB1504 | 0.75 | 4 | 1.2 | 1.5 | 1.45 | 4 | 50 |
X6MNB1506 | 0.75 | 6 | 1.2 | 1.5 | 1.45 | 4 | 50 |
X6MNB1508 | 0.75 | 8 | 1.2 | 1.5 | 1.45 | 4 | 50 |
X6MNB1510 | 0.75 | 10 | 1.2 | 1.5 | 1.45 | 4 | 50 |
X6MNB1512 | 0.75 | 12 | 1.2 | 1.5 | 1.45 | 4 | 50 |
X6MNB1516 | 0.75 | 16 | 1.2 | 1.5 | 1.45 | 4 | 50 |
X6MNB2006 | 1 | 6 | 1.6 | 2 | 1.94 | 4 | 50 |
X6MNB2008 | 1 | 8 | 1.6 | 2 | 1.94 | 4 | 50 |
X6MNB2010 | 1 | 10 | 1.6 | 2 | 1.94 | 4 | 50 |
X6MNB2012 | 1 | 12 | 1.6 | 2 | 1.94 | 4 | 50 |
X6MNB2016 | 1 | 16 | 1.6 | 2 | 1.94 | 4 | 50 |
X6MNB3008L | 1.5 | 8 | 2.4 | 3 | 2.85 | 6 | 60 |
X6MNB3012L | 1.5 | 12 | 2.4 | 3 | 2.85 | 6 | 60 |
X6MNB3016L | 1.5 | 16 | 2.4 | 3 | 2.85 | 6 | 60 |
X6MNB3020L | 1.5 | 20 | 2.4 | 3 | 2.85 | 6 | 60 |
X6MNB3025L | 1.5 | 25 | 2.4 | 3 | 2.85 | 6 | 75 |
X6MNB3030L | 1.5 | 30 | 2.4 | 3 | 2.85 | 6 | 75 |
X6MNB4012L | 2 | 12 | 3.2 | 4 | 3.8 | 6 | 60 |
X6MNB4016L | 2 | 16 | 3.2 | 4 | 3.8 | 6 | 60 |
X6MNB4020L | 2 | 20 | 3.2 | 4 | 3.8 | 6 | 60 |
X6MNB4025L | 2 | 25 | 3.2 | 4 | 3.8 | 6 | 75 |
X6MNB4030L | 2 | 30 | 3.2 | 4 | 3.8 | 6 | 75 |
For other models or customizations, please contact the supplier>> |
1.High steel and strong wear resistance of high quality tungsten steel bar.
2.Under the condition of volume cutting space, the large core diameter design adopted, and the cutting edge strength and sharpenss are compatible to enhance the rigidity of the cutting tool.
3.Nano-materials were introduced into the coating, which significantly improved the high temperature resistance and oxidation resistance of the material. More durable.
4.After grinding maching fine grinding, smooth surface, smooth chip removal process, Non-stick knife, improve the quality of the processed surface.
5.The utility model has advantages of convenient use, good compatibility, enhanced Anti-vibration and cutting speed of the milling cutter, and tighter clamping and Non-skid.
Product Name | Micro Diameter Ball Nose End Mill |
Tool Type | Milling Cutter |
Coating | Nona-Coating |
Material | Tungsten Carbide |
Flute | 2 Flute |
HRC | 55° |
Radius angle | 0.1-2mm |
Shank Diameter | 4-6mm |
Neck Lenght | 1-30mm |
Cutting Length | 0.16-4mm |
Apply: Copper, stainless steel, cast iron, tool steel... Deep groove, deep cavity processing
