European Standard Carbide Tungsten Drill

European Standard Tungsten Carbide Drill

European Standard Tungsten Drill

Model Number

FS-SUSL SERIES /SIZE 5XD

Size

Shank Diameter 4.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0 22.0 24.0 25.0

Customization

OEM/ODM

Quick Details

1. New fine particle tungsten steel base material
2. Passivation treatment.
3. Wear-resistant.
4. High-gloss long life.
5. Large core diameter design.
6. Massive inventory, lightning delivery.

Inquiry Download

DESCRIPTION

Specification

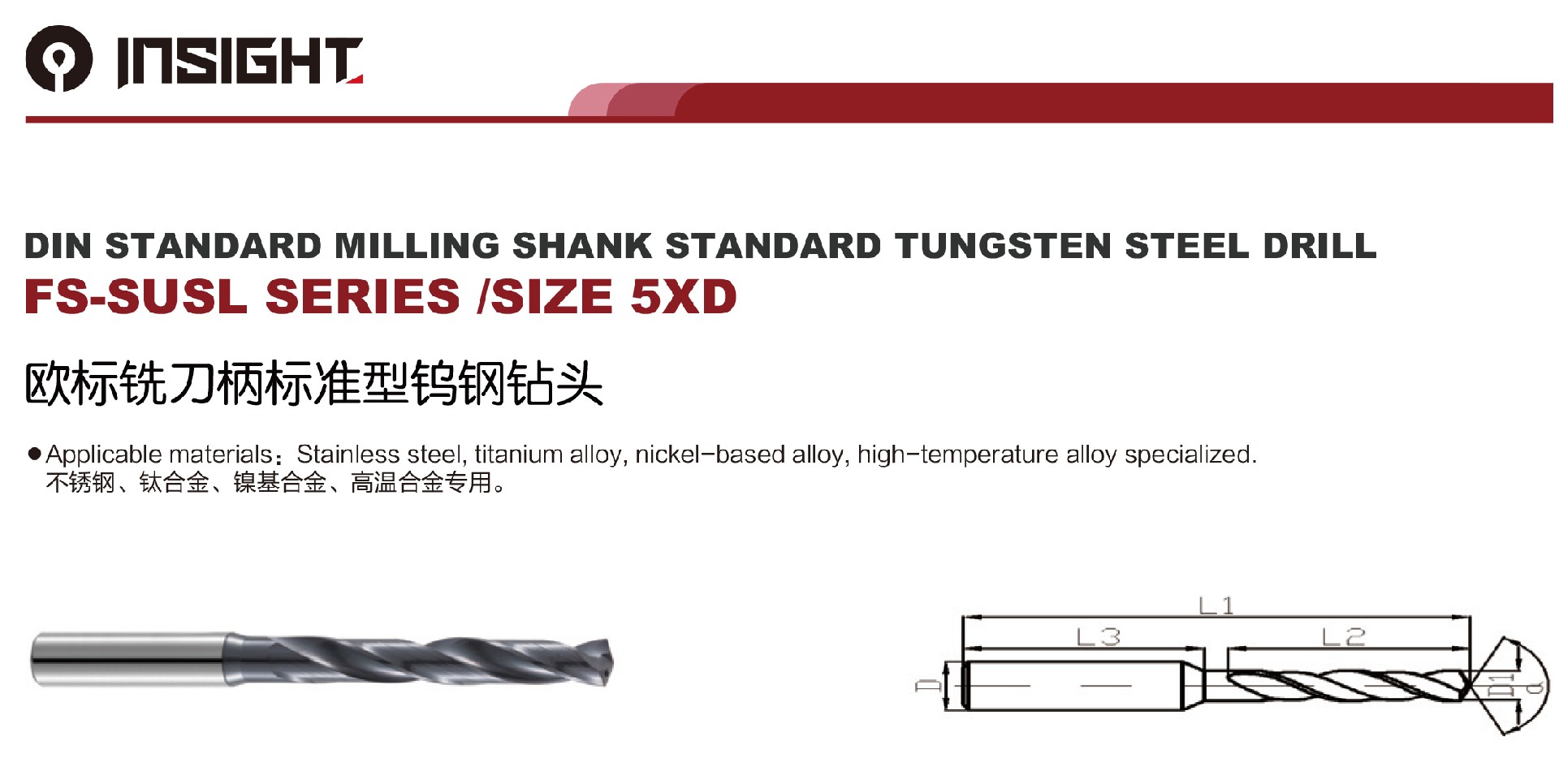

INSIGHT Drill Catalog(2)-7.jpg

Order NO.Order NO.	Diameter	Channel length	Full Length	Shank Diameter
FS-SUSL-300	3.00	28.0	66	4
FS-SUSL-350	3.5	28	66	4
FS-SUSL-380	3.8	36	74	4
FS-SUSL-410	4.1	36	74	6
FS-SUSL-460	4.6	36	74	6
FS-SUSL-470	4.7	44	82	6
FS-SUSL-520	5.2	44	82	6
FS-SUSL-600	6	44	82	6
FS-SUSL-610	6.1	53	91	8
FS-SUSL-650	6.5	53	91	8
FS-SUSL-700	7	53	91	8
FS-SUSL-750	7.5	53	91	8
FS-SUSL-800	8	53	91	8
FS-SUSL-810	8.1	61	103	10
FS-SUSL-850	8.5	61	103	10
FS-SUSL-900	9	61	103	10
FS-SUSL-950	9.5	61	103	10
FS-SUSL-1000	10	61	103	10
FS-SUSL-1010	10.1	71	118	12
FS-SUSL-1050	10.5	71	118	12
FS-SUSL-1100	11	71	118	12
FS-SUSL-1150	11.50	71	118	12
FS-SUSL-1200	12	71	118	12
FS-SUSL-1210	12.1	77	124	14
FS-SUSL-1250	12.5	77	124	14
FS-SUSL-1300	13	77	124	14
FS-SUSL-1350	13.5	77	124	14
FS-SUSL-1400	14	77	124	14
FS-SUSL-1410	14.1	83	133	16
FS-SUSL-1450	14.5	83	133	16
FS-SUSL-1500	15	83	133	16
FS-SUSL-1550	15.5	83	133	16
FS-SUSL-1600	16	83	133	16
FS-SUSL-1650	16.5	101	153	18
FS-SUSL-1780	17.8	101	153	18
FS-SUSL-1850	18.5	101	153	20
FS-SUSL-1900	19	101	153	20
FS-SUSL-1950	19.5	101	153	20
FS-SUSL-2050	20.5	135	200	22
FS-SUSL-2100	21	135	200	22
FS-SUSL-2200	22	135	200	22
FS-SUSL-2250	22.5	140	200	24
FS-SUSL-2300	23	140	200	24
FS-SUSL-2350	23.5	140	200	24
FS-SUSL-2400	24	140	200	24
FS-SUSL-2450	24.5	140	200	25
FS-SUSL-2500	25	140	200	25
For other models or customizations, please consult the supplier>>

Feature

New fine particle tungsten steel base material, high hardness and wear resistance.

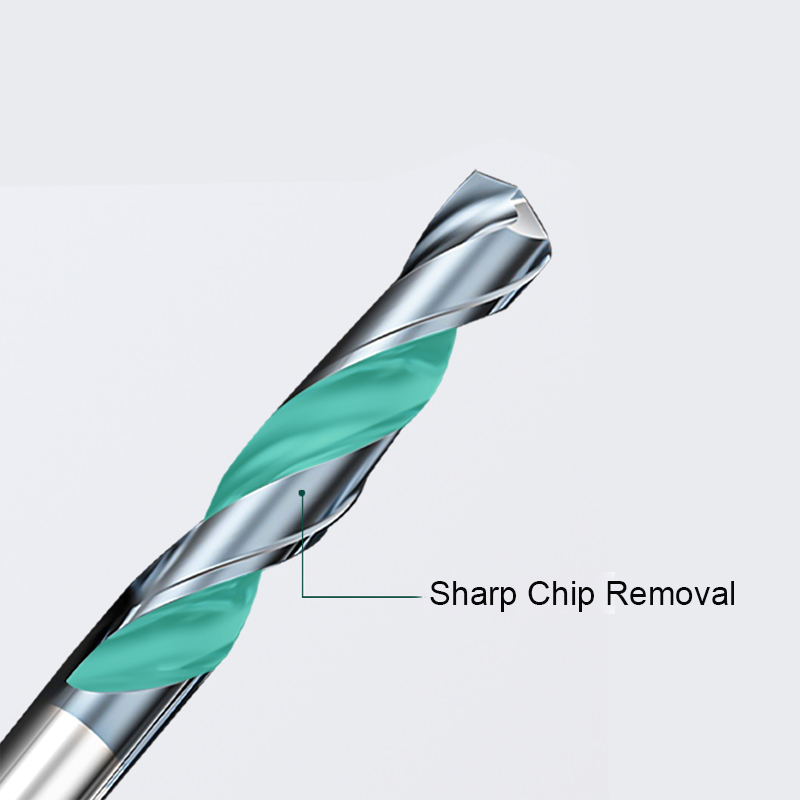

Spiral groove design, smooth chip removal.
Large core diameter design, sharp ship removal.
Easy to use, with good compatibility, use without slipping.

Parameter

Product Name	Din standard milling shank standard tungsten steel drill
Tool Type	Drill Bits
Material	Tungsten Carbide
Diameter	3-25mm
Shank Diameter	4-25mm
Channel Lenght	28-140mm
Full Lenght	66-200mm
